LONCIN G120F User Manual

G120F/G160F/G200F Part IV Disassembly and maintenance
- 60 -
4-9. Reduction system

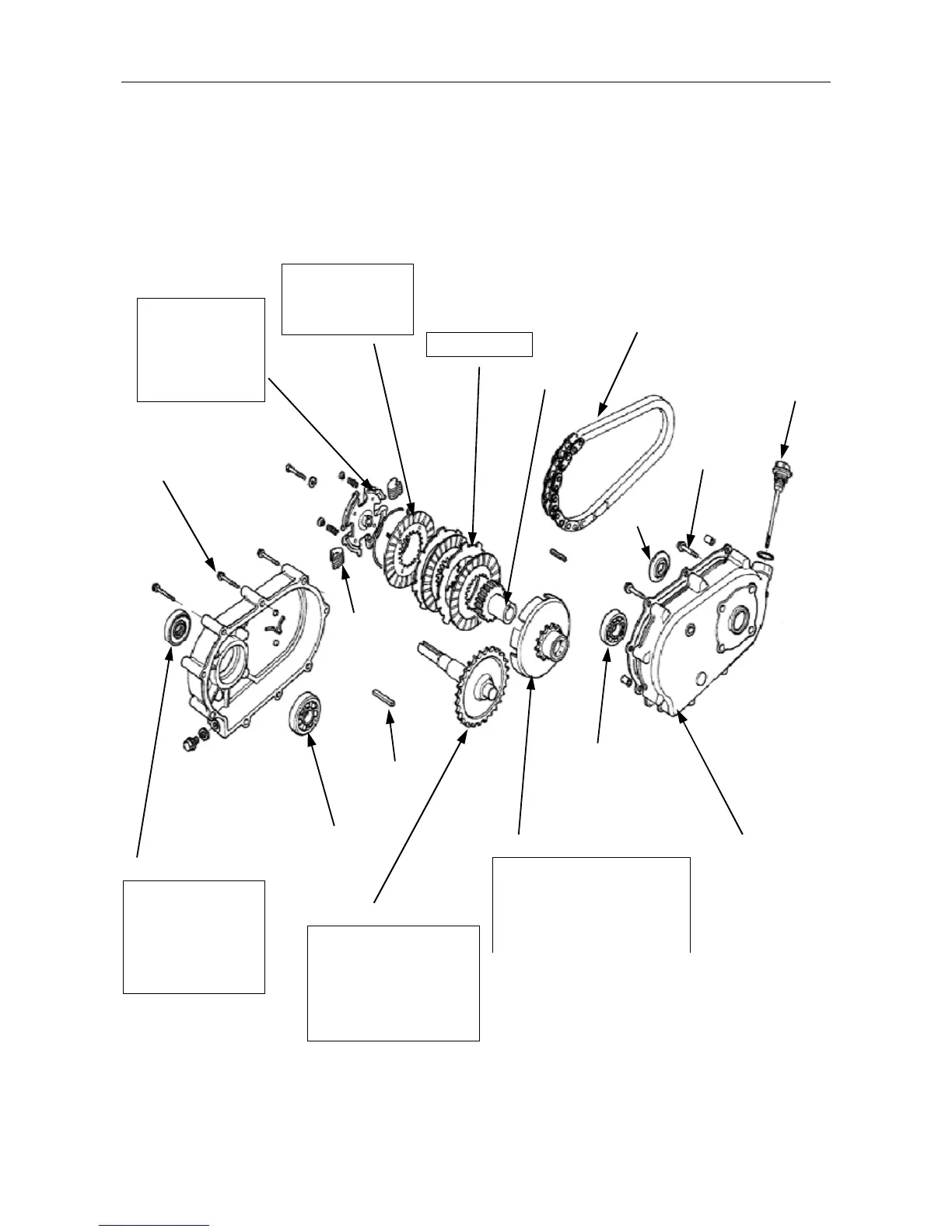

1. 1/2 reduction (with centrifugal clutch)
M
Reduction oil cap
6205 ball bearing
Clutch friction disc
Inspection：P.60(4-9
Reassembly:
Note the installation
sequence.
Clutch plate
Inspection:P65
Reduction
crankcaser
Oil seal (30×50×8)
Reassembly:
Be careful not to
damage the lip of the
oil seal when
installing the P.T.O.
shaft into the
reduction cover
6×55(9)
6206
ball bearing
Clutch center
M8×20(5)
Clutch center
key
Bush
Drive sprocket
Reassembly:
Attach the drive chain to the
sprocket and P.T.O.shaft and
install in the reduction case as
a set.
Chain
Clutch weight
Clutch cover
Reassembly:
When installing it
to the crankshaft,
key slot of the
retainer must be
aligned with
clutch’s key.
P.T.O.shaft
Reassembly:
Check the sprocket teeth
for wear first, then attach it
to the chain and drive
sprocket and finally install
it.
