LONCIN G120F User Manual

G120F/G160F/G200F Part IV Disassembly and maintenance
- 61 -

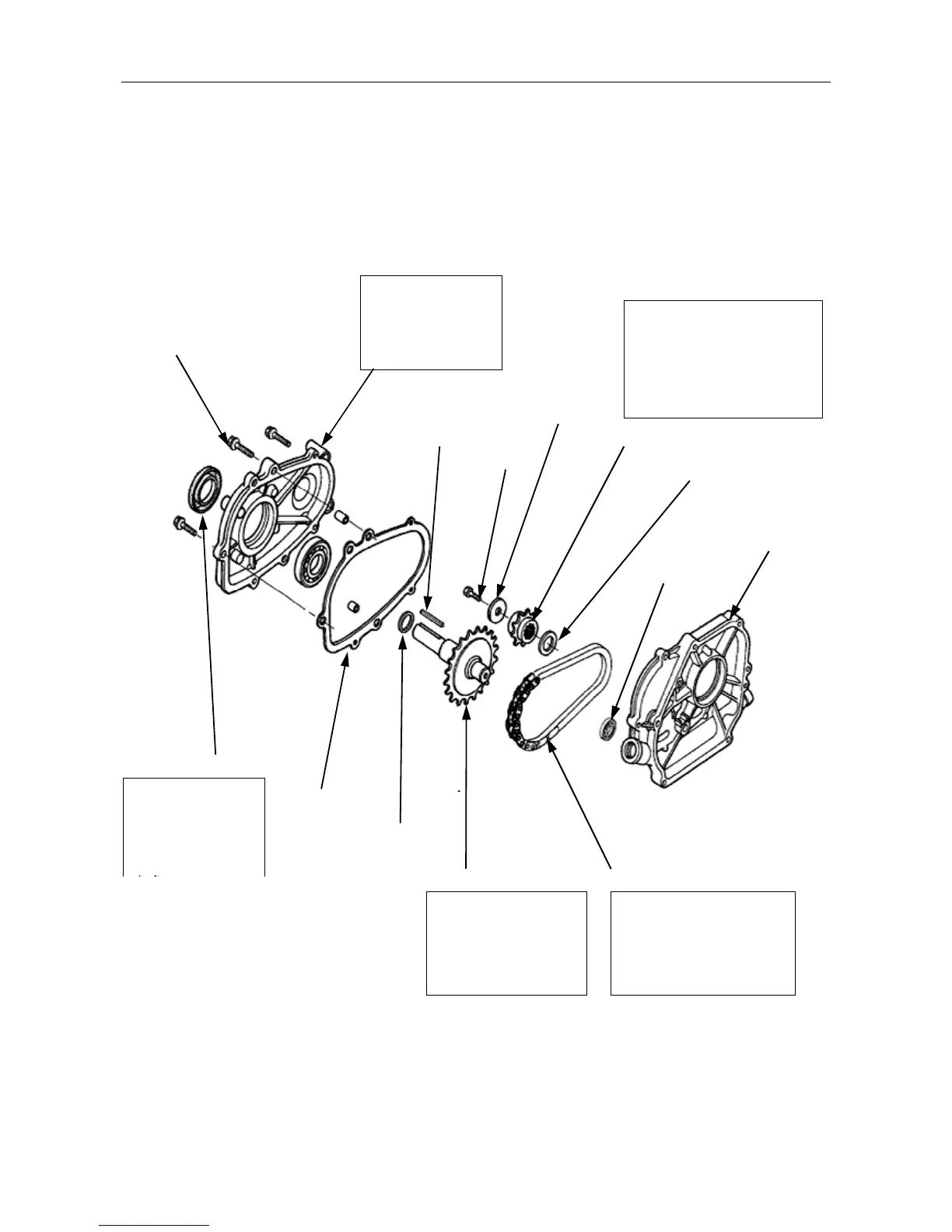

2. 1/2 chain type
Oil seal (25×41.25×6）
Reassembly:
Take care not to
damage the lip of the
oil seal when
inserting the P.T.O.
shaft .
M8×32(6)
Reduction cover
Reassembly:
Take care not to
damage the oil seal
when inserting the
P.T.O. shaft.
6205 ball bearing
Reduction case
cover gasket
Washer
20×30×0.3
Key
5×5×33
P.T.O. shaft
Reassembly:
Check the sprocket
teeth for wear or
damage before
installing, install the
drive sprocket chain and
drive sprocket as a set.
Bolt
M8×30
Washer
8.5×23×3
Drive sprocket
Reassembly:
Check the sprocket teeth for
wear or damage for wear or
damage before installing.
Attach the chain to the drive
sprocket and P.T.O. shaft, and
install in the case as a single
unit
Washer
20.5×39×3.1
Drive chain
Reassembly:
Check for wear or
prolongation before
installing. If the chain must
be replaced, replace the
drive sprocket, P.T.O. shaft
and chain as a set.
2016Needle bearing
Crankcase cover
