LONCIN G120F User Manual

G120F/G160F/G200F Part IV Disassembly and maintenance
- 58 -

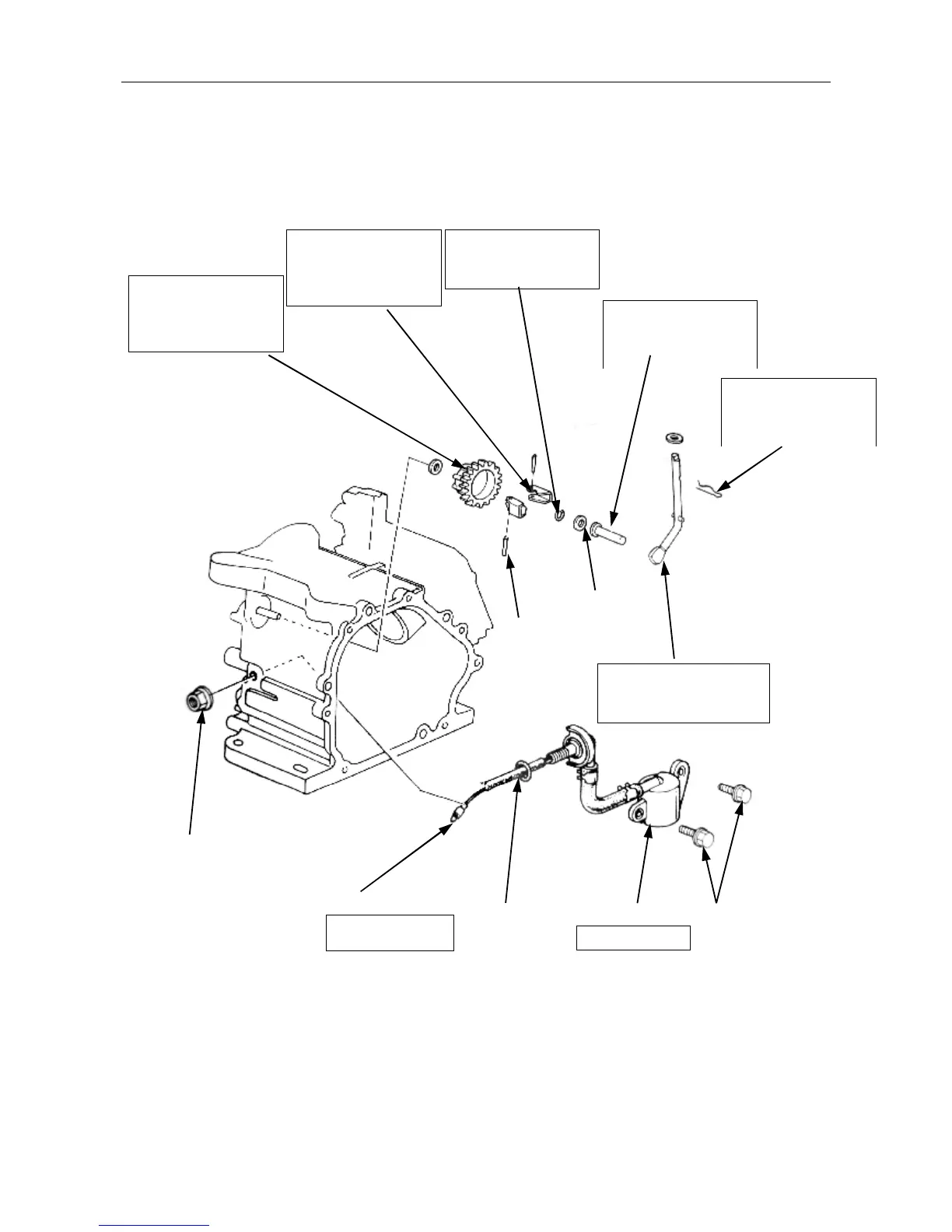

4-8. Governing gear and fuel level switch
1. Disassembly/reassembly
Yellow lead
Connected to
engine switch
O-ring
Governor
weight pin
Oil level switch
Inspection :P62
Governor gear
Reassembly:
Before installing, check
for wear or damage of
the gear.
Governor weight
Reassembly:
Check that the weights
move freely after
installation.
Clip
Reassembly:
Securely fix it in the
groove
Governor slider
Reassembly:
Check to be sure it
moves smoothly after
installing.
Washer (2)
Governor arm shaft
Reassembly:
After installing, rotate the
shaft to the cylinder barrel
side
Pin clip
Reassembly:
Immediately fix the pin
clip after installing the
governor arm shaft.
6×12（2）
M10 flange nut
Torque: 6-8N.m
