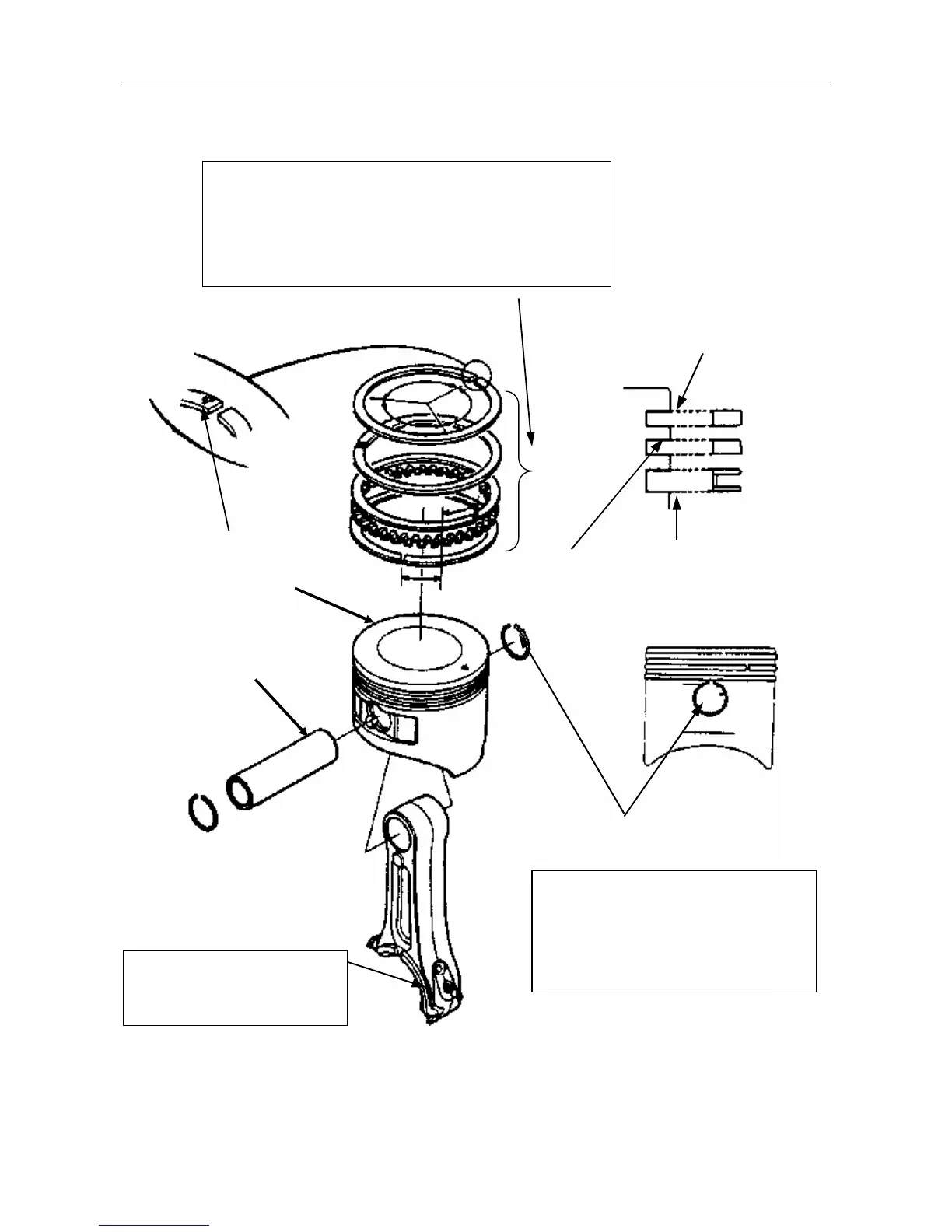

Reassembly:
Install the connecting rod with the
long end toward the triangle
marked side of the piston
Reassembly:
Install by setting one end of the clip in the
piston groove, holding the other end with
long-nosed pliers, and rotating the clip in.
Do not align the end gap of the clip with the
Piston pin clip
Reassembly:
1) Install all rings with the markings facing upward
2) Be sure that the top and second rings are not interchanged.
3) Check that the rings rotate smoothly after installation.
4) Space the piston ring end gaps 120 degrees apart and do not
align the gaps with the piston pin bore
Top ring (chrome plated)
