Lopi Cape Cod - Firebox Parts; Baffle Removal and Replacement; Andiron Removal

32 Maintaining Your Appliance
© Travis Industries 100-01282_000 4111128

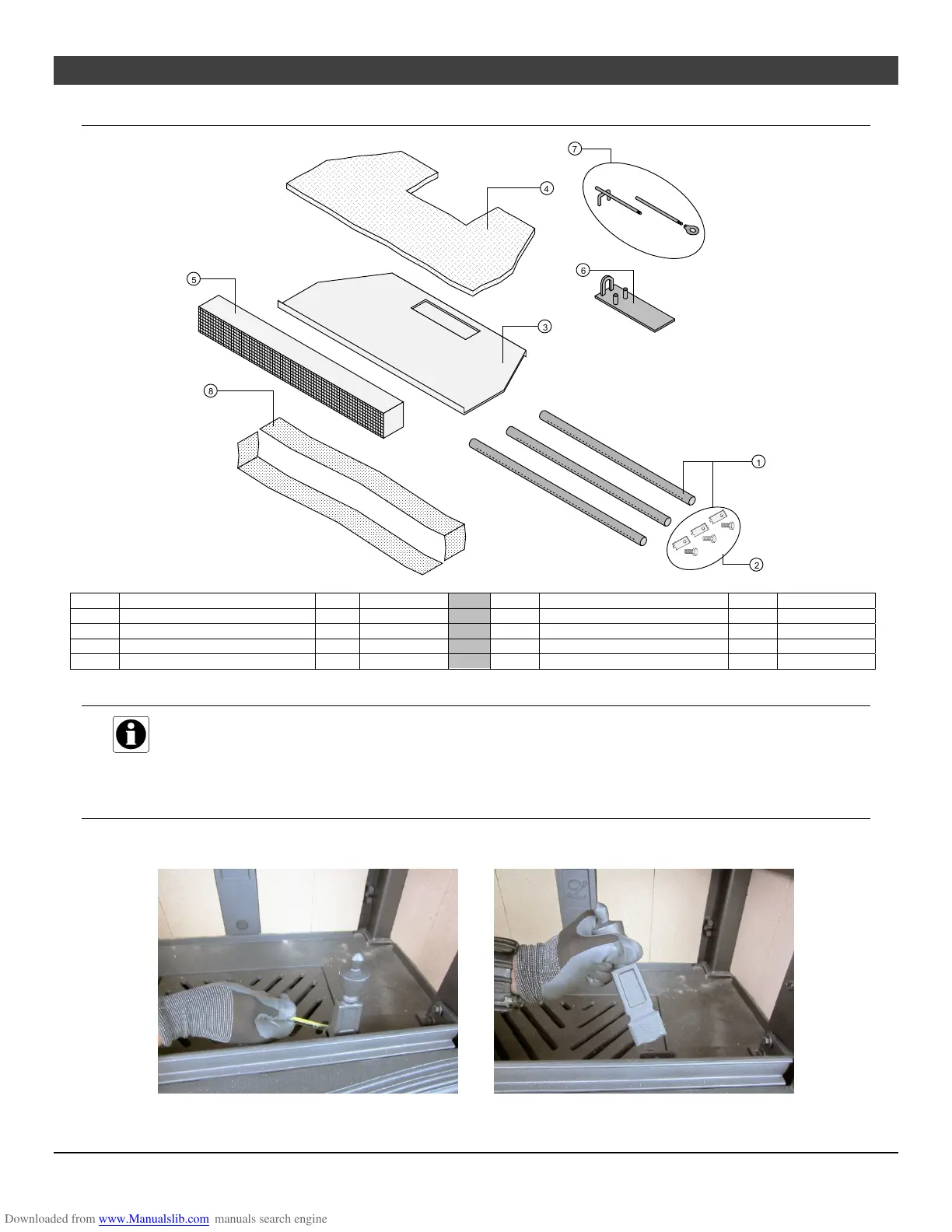

Firebox Parts
ID # Description Qty. Part # ID # Description Qty. Part #
1 Secondary Air Tubes 3 5 Combustor 1
2 Air Tube Pins 3 6 Bypass Slider 1
3 Baffle 1 7 Bypass Yoke Assy. 1
4 Baffle Insulation 1 8 Combustor Gasket 2
Baffle Removal & Replacement
The baffle is held up by the 3 air tubes. Make sure to support the baffle while removing the air tubes.
• Remove the air tubes and baffle.
Andiron Removal
The andirons are held in place with a 7/16” bolt. Remove the screw from each andiron and lift the andiron
from its housing to remove.


















