Lopi Cape Cod - Top View - Straight Installation Clearances; Top View - Corner Installation Clearances

Stove Installation (for qualified installers only) 9
© Travis Industries 100-01282_000 4111128

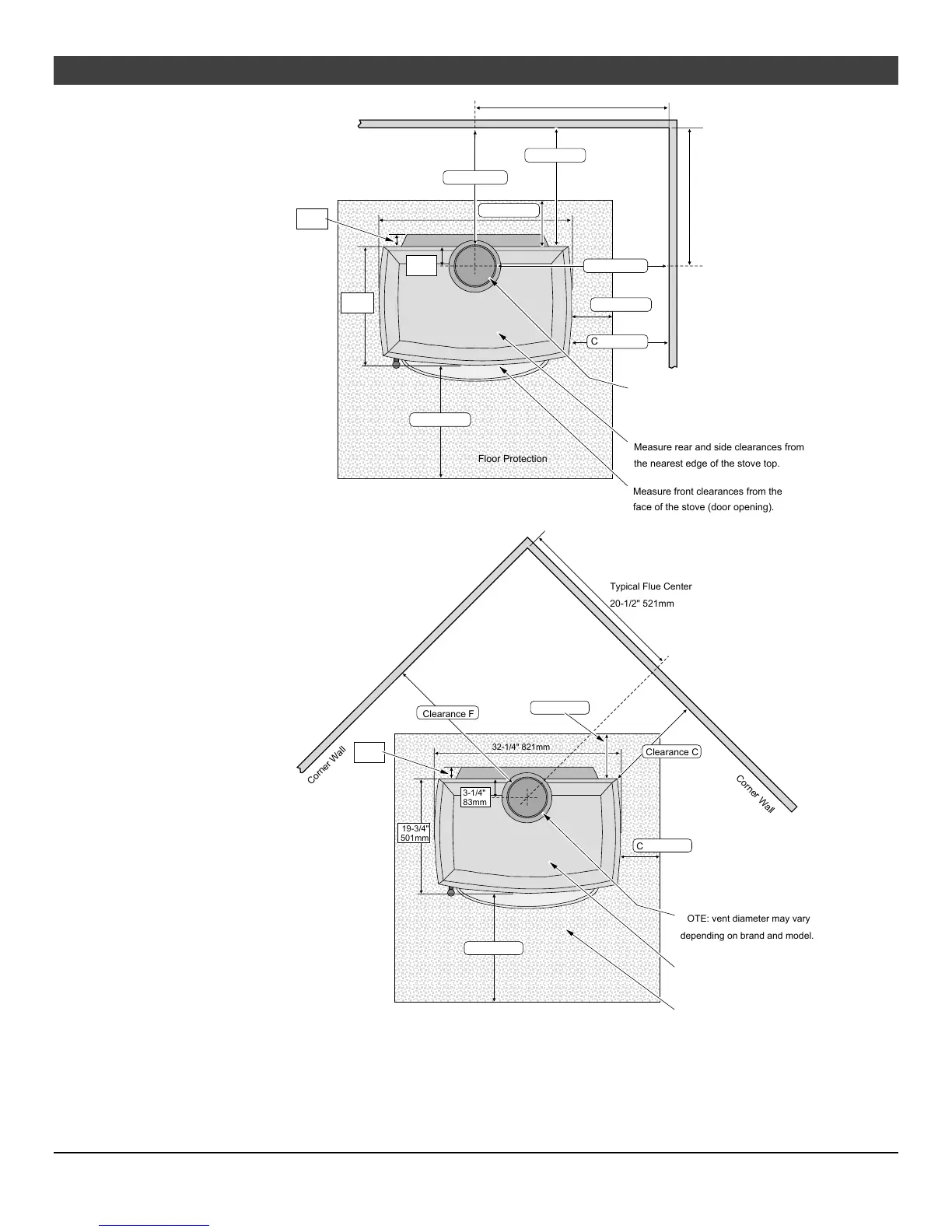

Top View -
Straight Installation
Figure 2
Top View -
Corner Installation
Figure 3
































Measure rear and side clearances from
the nearest edge of the stove top.
Floor Protection
Measure front clearances from the
face of the stove (door opening).
Clearance A
NOTE: vent diameter may vary
depending on brand and model.
Clearance E
Clearance B
Back Wall
Side Wall
Clearance D
Typical Flue Center
Singlewall 18"
Reduced Clearance 15-1/2"
Typical Flue Center 29-1/2" 750mm
3-1/4"
83mm
32-1/4" 821mm
2"
51mm
19-3/4"
501mm
Clearance G
Clearance H
Clearance G
2"
51mm



































Measure rear and side clearances from
the nearest edge of the stove top.
Floor Protection
Measure front clearances from the
face of the stove (door opening).
NOTE: vent diameter may vary
depending on brand and model.
Corner Wall
Corner Wall
Clearance C
Clearance F
Typical Flue Center
20-1/2" 521mm
3-1/4"
83mm
32-1/4" 821mm
19-3/4"
501mm
Clearance G
Clearance H
Clearance G
