Lopi Cape Cod - Air Tube Removal and Replacement

Maintaining Your Appliance 33
© Travis Industries 100-01282_000 4111128

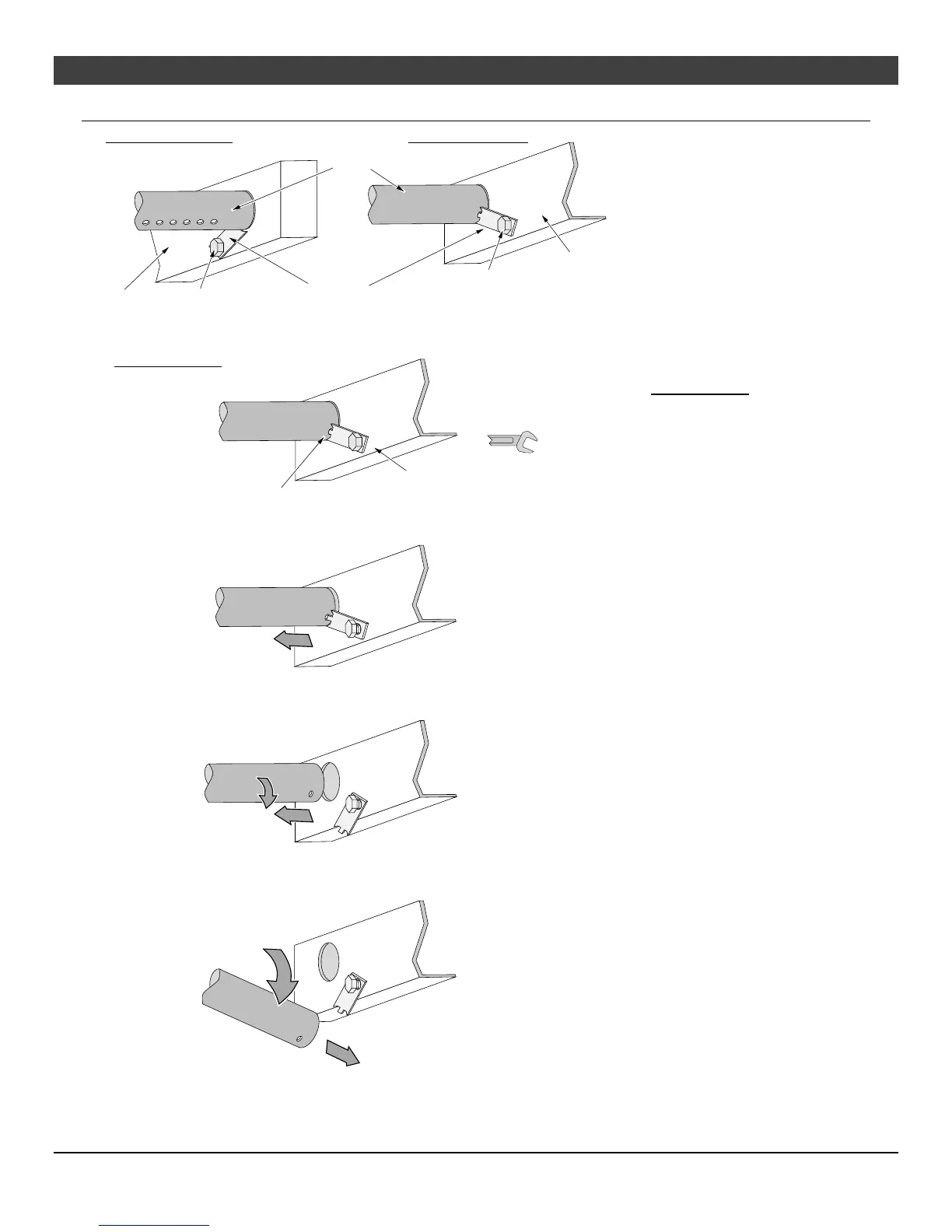

Air Tube Removal & Replacement
T
UBE SIZING
(all 3 tubes are identical)
Front Tube = 24.2” (615mm)
Middle Tube = 24.2” (615mm)
Back Tube = 24.2” (615mm)
Loosen this bolt 2 or 3
turns (do not remove).
Note how the center of the air tube pin
inserts into a hole on the air tube.
3/8" Wrench
With the bolt loosened the air tube can
be slid out of the air channel.
The pin will then disengage from the air tube
(you may wish to rotate the tube slightly).
Pivot the air tube downwards and slide it out of
the air channel on the opposite side.
Air Tube Bolt
Air Tube
Air Tube Pin
VIEW FROM THE FRONT VIEW FROM THE REAR
Air Tube Bolt
Air Channel
Air Channel
AIR TUBE REMOVAL
