34 Maintaining Your Appliance
© Travis Industries 100-01282_000 4111128
Combustor Removal
To remove the combustor first remove the baffle (see page 32), open the bypass and reach through the
bypass hole and push the combustor out from the rear. The combustor is housed in a stainless steel
frame; push on the left and right side edges of the combustor frame so that it slides out evenly. If the
combustor is pushed at a side angle it will not come out.

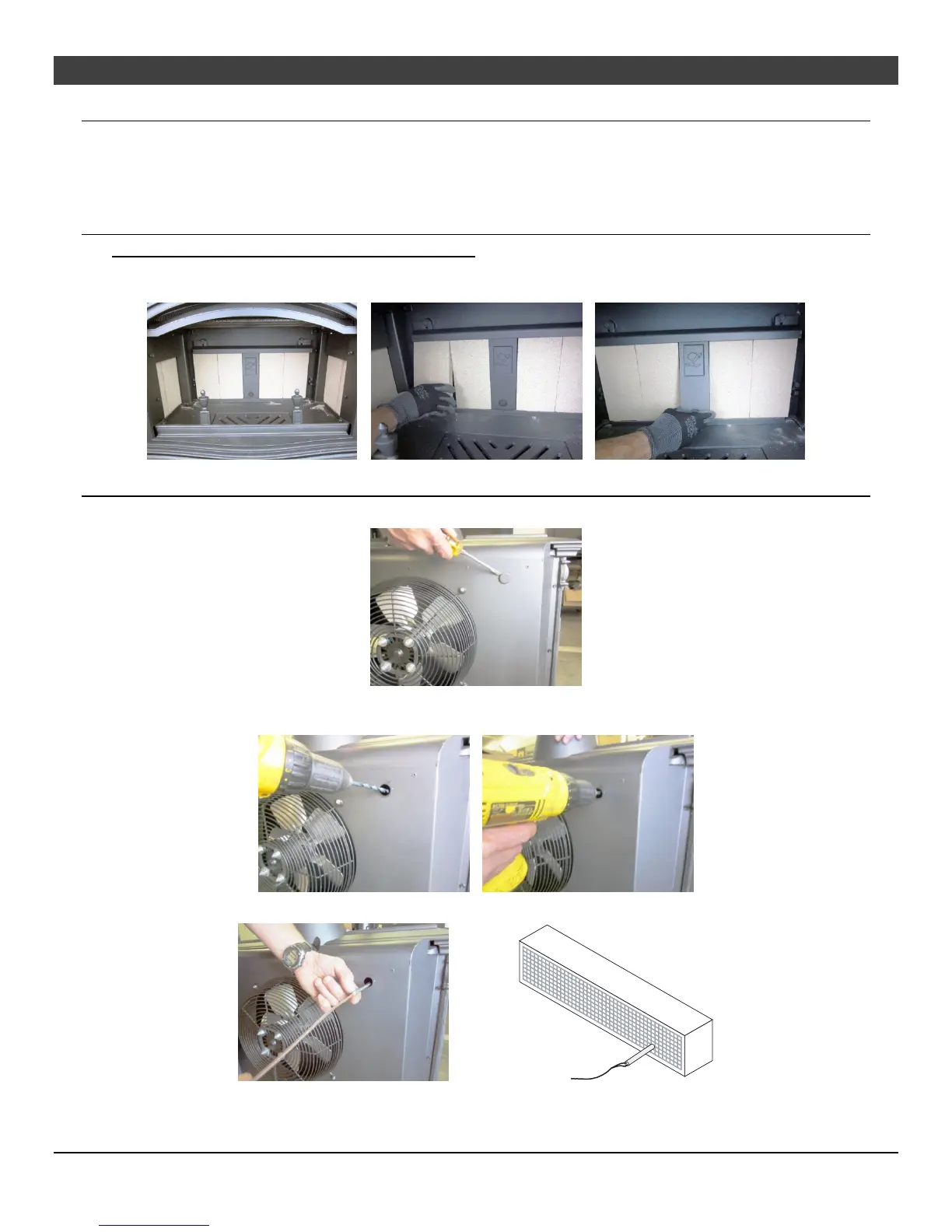

Firebrick Removal & Replacement
Do not pry firebricks - they chip and crack easily. Remove the firebricks by lifting them out by the
bottom edges as shown below (the photos do not show the side firebricks). Clean the firebox before
replacing the firebricks. Note that there are nine firebricks, including the igniter firebrick.
Catalytic Combustor Temperature Probe Installation Instructions
1. Remove the button plug from the rear of the heater as shown below.
2. Locate the dimple behind the push plug in the rear of the firebox. Drill a ¼” (6mm) hole through the
dimple. Make sure to use the correct drill bit size to allow for an air-tight seal.
3. Insert the temperature probe to location near the combustor as shown below.
