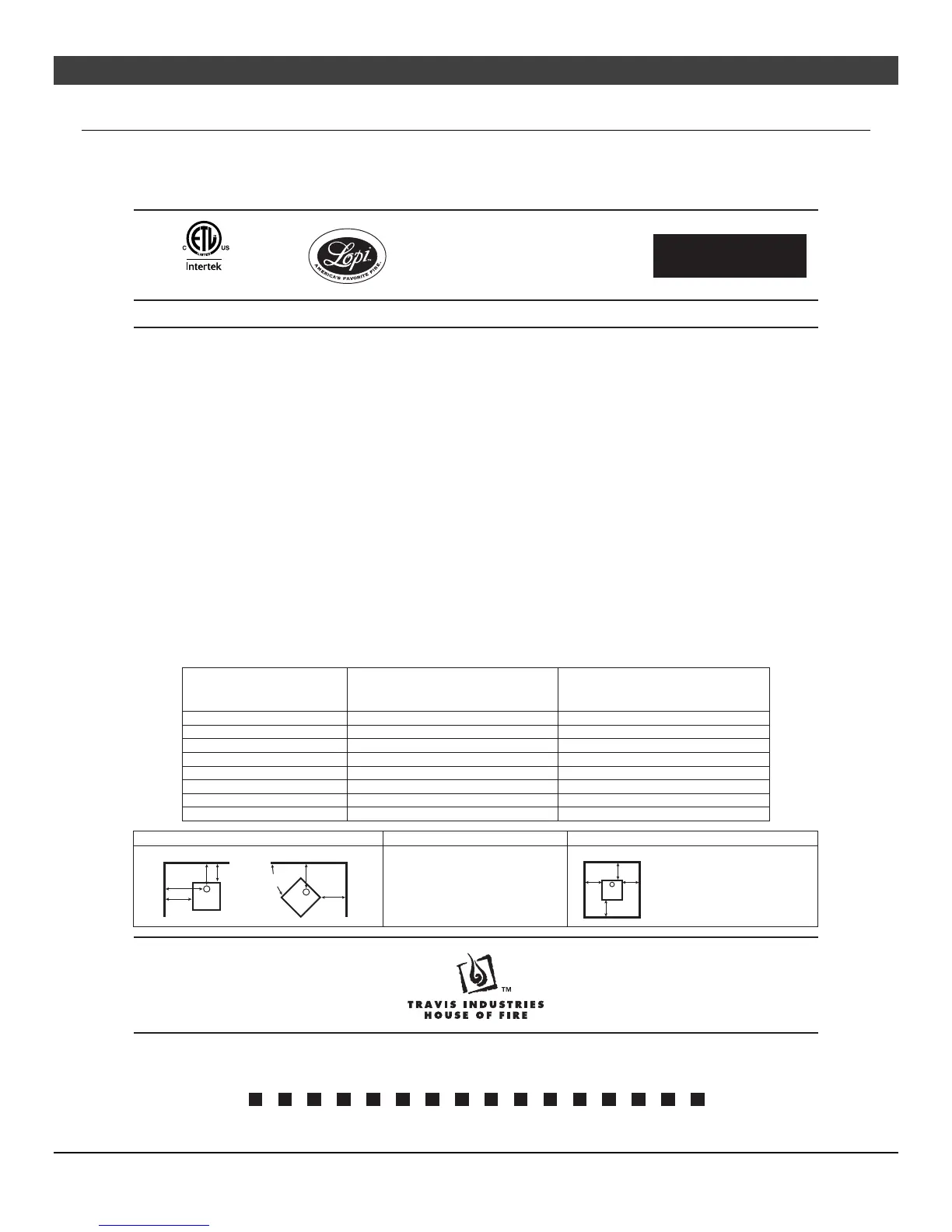

Listing Label
DO NOT REMOVE THIS LABEL
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT INSTALLATION AND RESTRICTIONS IN YOUR AREA.
SUITABLE FOR USE IN CONVENTIONAL RESIDENTIAL INSTALLATIONS, MANUFACTURED HOMES AND ALCOVES.
Report No. 100517863-001
Control No. 4000515
MODEL:
CAPE COD
Certified for USA and Canada
SERIAL NO:
CONFORMS TO UL STD 1482; CERTIFIED TO ULC STD S627-2000
PREVENT HOUSE FIRES - Install and use only in accordance with the manufacturer’s installation and operating instructions. Contact your local
building or fire officials about restrictions and installation inspection in your area. Refer to local building codes and manufacturer’s instructions
for precautions required for passing a chimney through a combustible wall or ceiling. Do not run a chimney connector through a combustible wall
or ceiling. Do not connect this unit to a chimney flue serving another appliance. Clearances may be reduced by methods specified in NFPA 211,
listed wall shields, pipe shields, or other means approved by local building or fire officials.
This wood heater contains a catalytic combustor, which needs periodic inspection and replacement for proper operation. Consult owner’s manual
for further information. It is against the law to operate this wood heater in a manner inconsistent with operating instructions in the owner’s
manual, or if the catalytic element is deactivated or removed. CAUTION: the combustor used in this appliance (part no. 174-01111) is fragile and
must be handled carefully. Burning of metal foils, plastic, garbage, sulphur and diesel oil will render the catalyst in the combustor inactive. The
performance and durability of the catalytic combustor has not been evaluated as part of the certification.
FREESTANDING INSTALLATION
STANDARD RESIDENTIAL FREESTANDING INSTALLATIONS REQUIRE: 6” diameter, minimum 24 MSG black, with listed UL-103 HT factory-built chimney, suitable for
use with solid fuels or masonry chimney. Pedestal or legs are required.
ALCOVE INSTALLATIONS REQUIRE: One of the Listed doublewall connectors listed below.
MANUFACTURED HOME AND REDUCED CLEARANCE INSTALLATIONS REQUIRE: One of the Listed doublewall connectors listed below. In addition, manufactured
home installations require outside air - use the optional pedestal or outside air boot.
ƕ AMERI-TEC model DCC connector with model HS chimney
ƕ DURA-VENT model DVL connector with DURA-PLUS chimney
ƕ GSW-JAKES EVANS SUPERPIPE 2100
ƕ I.C.C. EXCEL (103-HT) chimney with HP connector
ƕ METALFAB model DW connector with TG chimney
ƕ OLIVER MACLEOD PROVENT model PV connector with model 3103 chimney
ƕ SECURITY model DP connector with SECURITY model ASHT or S2100 chimney
ƕ SELKIRK METALBESTOS model DS connector with model SSII chimney
ƕ OLYMPIA VENTIS
®
with Ventis doublewall black stove pipe
A.
B.
C.
D.
E.
F.
G.
H.
12.75 in. / 324 mm
14.75 in. / 375 mm
7.25 in. / 185 mm
26 in. / 661 mm
15 in. / 381 mm
17.5 in. / 445 mm
US: 6 in. (153 mm) / CAN: 8 in. (204 mm)
US: 16 in. (407 mm) / CAN: 18 in. (458 mm)
12.75 in. / 324 mm
11.75 in. / 299 mm
7.25 in. / 185 mm
26 in. / 661 mm
12 in. / 305 mm
17 in. / 432 mm
US: 6 in. (153 mm) / CAN: 8 in. (204 mm)
US: 16 in. (407 mm) / CAN: 18 in. (458 mm)
Singlewall Connector
Conventional Residential
Installations
Minimum Clearances
To Combustibles And
Hearth Requirements:
Alcove, Manufactured Home and Reduced
Clearance Conventional Residential
Installations
FREESTANDING CLEARANCE DIAGRAM ALCOVE SPECIFICATIONS FLOOR PROTECTION DIAGRAM
STOVE
D
A
EB
STOVE
45Ü
F
C
SIDEWALL
BACKWALL
ADJACENT WALL
ADJACENT WALL
G
STOVE
G G
H
FRONT
FLOOR PROTECTOR
Floor protection must be a non-combustible
material extending beneath the heater and to
the front, sides and back as indicated. See
Owner’s Manual for examples of non-com-
bustible materials that can be used.
Do not obstruct space beneath heater.
Max. Alcove Depth:
Min. Alcove Height:
Min. Alcove Width:
48 in. (1220 mm)
84 in. (2134 mm)
59 in. (1499 mm)
Electrical Rating:
Optional Blower:
115V., 60 Hz, 1.8 Amps
# 99000139
Do not route power cord under or in front of appliance.
Replace glass only with 5mm neoceramic or
ceramic glass.
Must be installed with legs provided.
TRAVIS INDUSTRIES, INC.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Manufactured by:
www.travisproducts.com
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with July 1990 particulate emission standards.
Made in U.S.A.
