Before start-up
- 7 -
11.18 909.1550.1-08

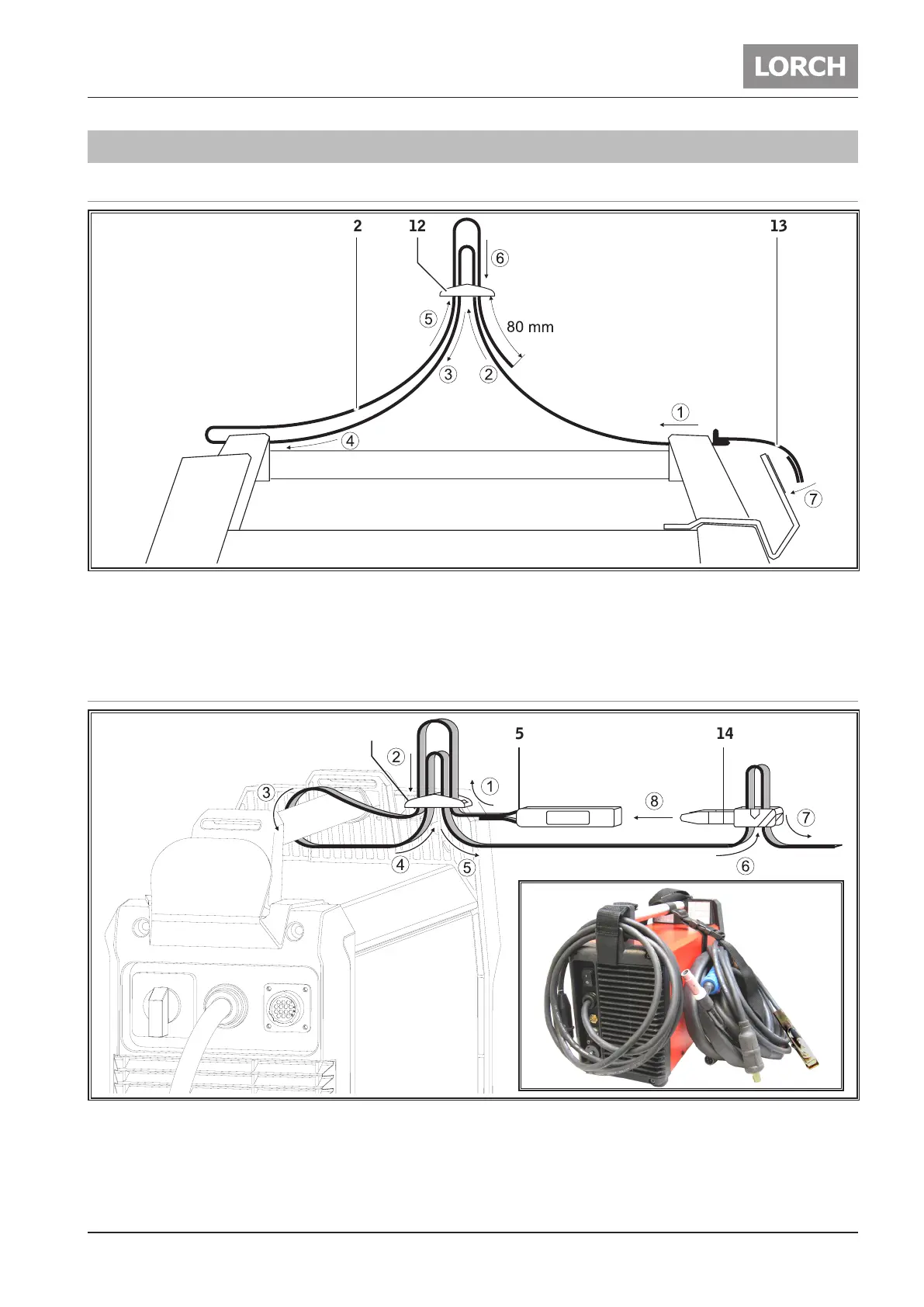

11 Before start-up
11.1 Fasten transportation belt
2 12 13
Abb. 2: Transportation belt
2 Transportation belt
12 Plastic slides
13 Velcro fastener
 Thread the transportation belt into the welding ma-
chine and plastic slides. See sequence of the num-
bering in the picture.
11.2 Fastening accessories belt
5 1412
Abb. 3: Accessories belt
5 Accessories belt with fastener
12 Plastic slides
14 Closure
 Thread the accessories belt into the handle and plas-
tic slides. See sequence of the numbering in the pic-
ture.
 Plug the belt fasteners together.
