D
V700
Series
Hard
Drive
Installation
20
1.
F
rom
the
Main
Menu,
click
and
then
click

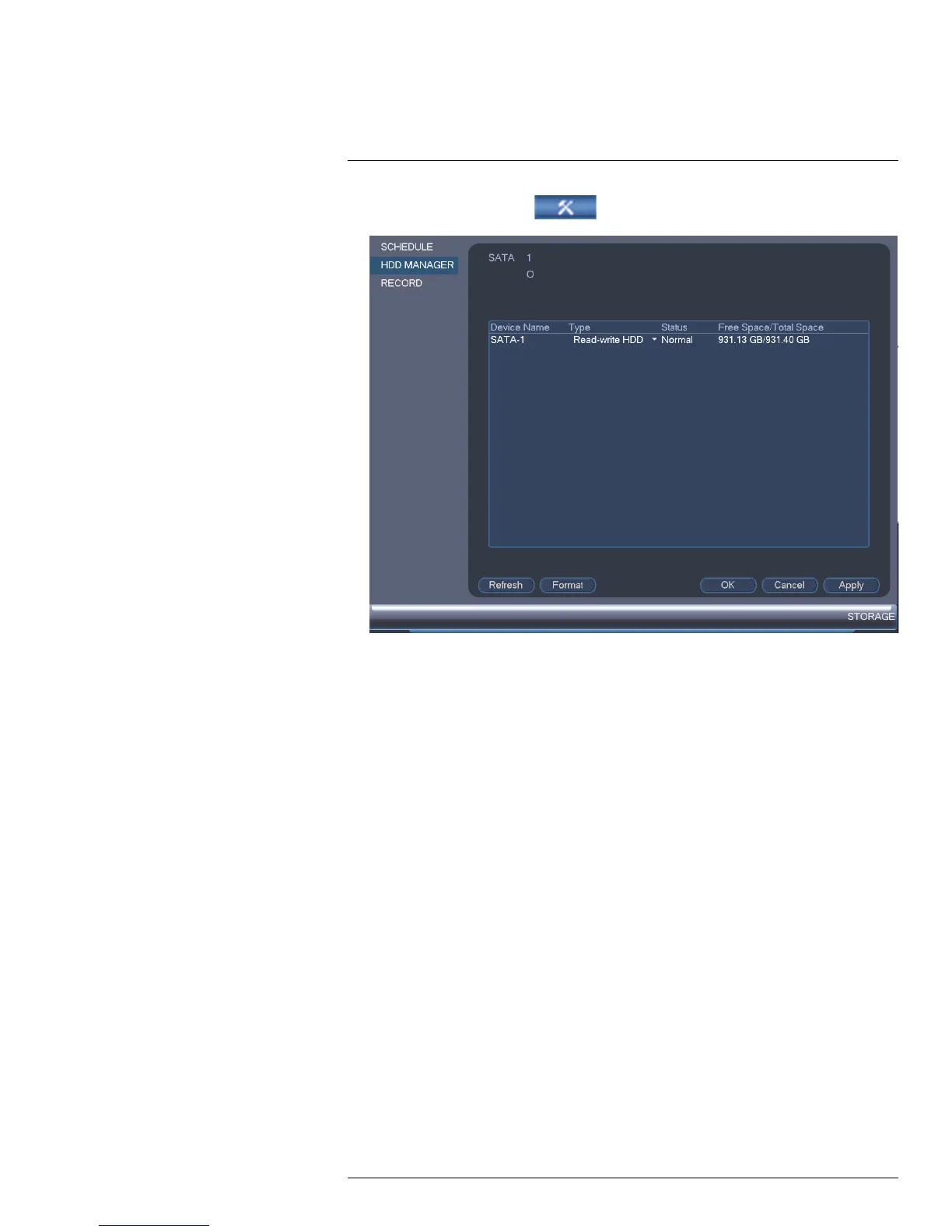

Storage>HDD
Manager
.
2.
Select
the
hard
dive
you
would
like
to
format
and
then
click
Format
.
Click
OK
to
confirm.
3.
Click
OK
to
save
changes.
The
system
will
restart
to
complete
the
formatting
process.
