Connecting a PTZ Camera (DV700 Series)
21

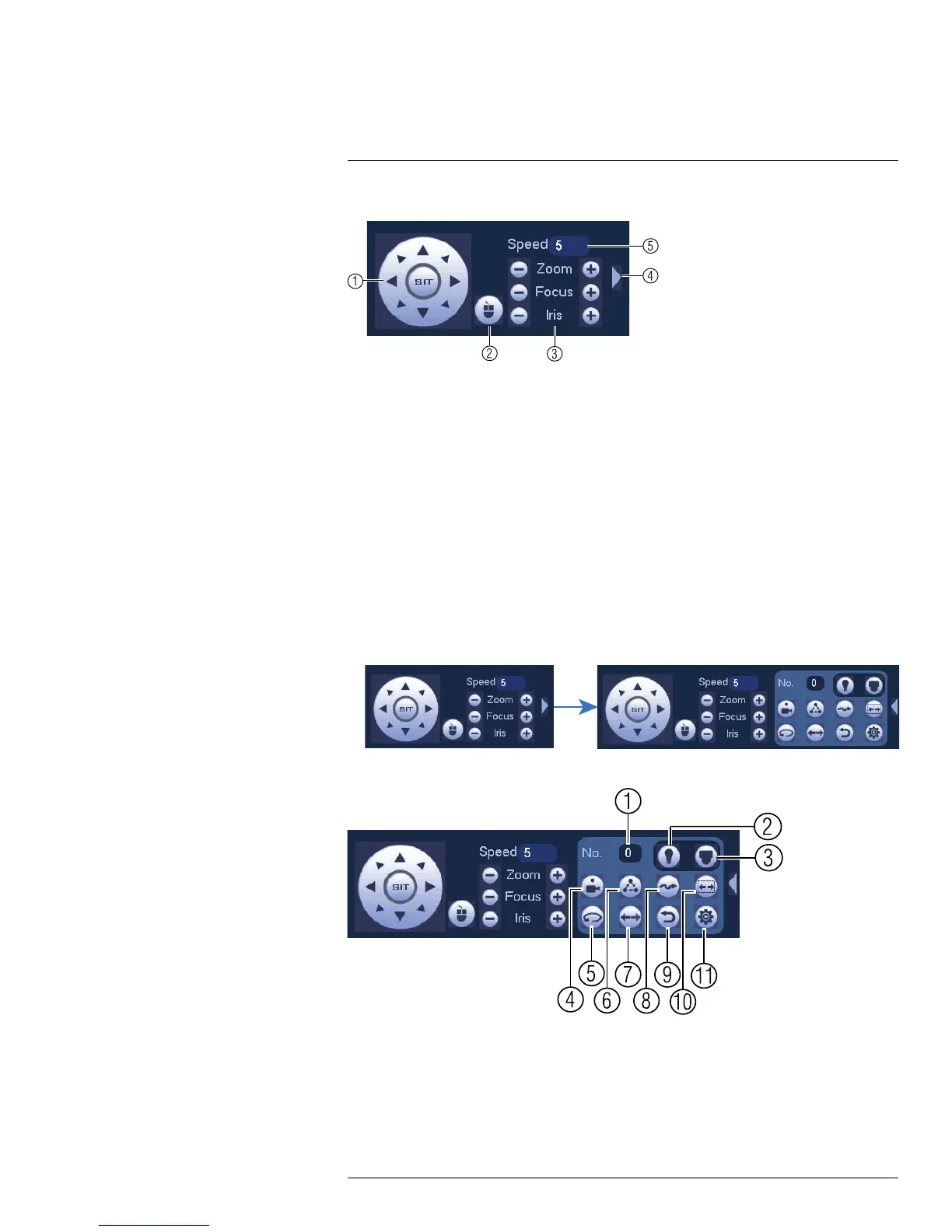

PTZ Controls
1. Direction keys: Click to pan and tilt the camera. Click SIT to stop the current action.
2. Mouse PTZ: Click to activate mouse PTZ mode. In mouse PTZ mode:
• Click and drag to move the camera.
• Use the scroll wheel to zoom in and out.
• Right-click to exit and return to normal PTZ controls.
3. Zoom/Focus/Iris: Click +/- to adjust the zoom, focus, and iris.
4. Advanced controls: Click to open advanced PTZ controls.
5. Speed: Enter the PTZ speed.
21.2 Advanced PTZ Controls
Advanced PTZ controls can be used to save camera positions and cycle through various
positions, and automate camera actions.
To open advanced PTZ controls:
• Click the arrow in the PTZ control window to open advanced controls.
Advanced PTZ controls overview:
1. No.: Select the number of the action you want to perform.
2. Not supported.
3. PTZ camera menu: Click to open the camera’s OSD menu. This may not be sup-
ported on all camera models.
4. Preset: Click to call the selected preset.
#LX400060; r.30328/30328; en-US
165
