Search (Playback)
12

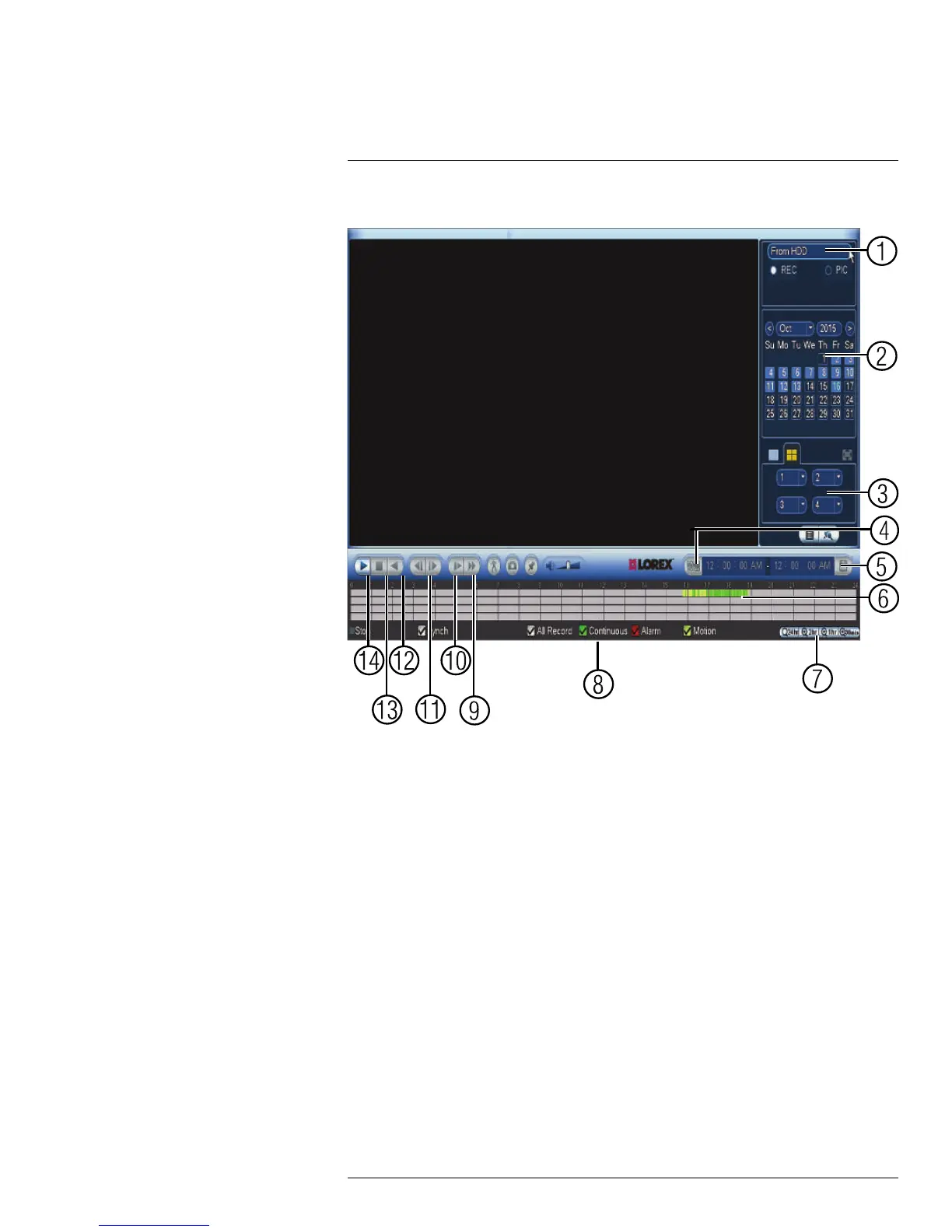

12.2 Playback Controls
1. Select playback device.
2. Calendar: Select the day to playback.
3. Channel select: Select channels to playback.
4. Video clip backup: Select video clip start and end times.
5. Backup video clip: Click to save selected clip.
6. Playback Bar: Click inside the bar to select a playback time.
7. Zoom Playback Bar: Select scope of time bar.
8. Recording types: Click to show/hide recording types.
9. Speed up
10. Slow
11. Previous/next frame
12. Play backward
13. Stop
14. Play
12.3 Playing Back from a USB Drive
If you have video files saved to a USB thumb drive (not included) or external hard drive
(not included), you can play them back using the system.
To play back from a USB drive:
1. Connect the USB thumb drive (not included) or USB external hard drive (not included)
with video files on it into a USB port on the system.
2. From live view, right-click and click Search.
#LX400060; r.30328/30328; en-US
29
