Basic Setup (DV700 Series)
6
• Avoid pointing the camera at a glass window to see outside. This may result in a bright
white ring in the night vision image, as the light from the night vision LEDs may reflect
off the glass.
• Adjust the camera angle so that it covers an area with high traffic.
• In "high-risk" locations, have multiple cameras point in the same area. This provides
camera redundancy if a vandal attempts to damage the camera.
To install the cameras:
1. Mount the camera(s) to the desired mounting surface according to the instructions that
came with the camera(s). Choose a firm mounting surface.
NOTE
If you wish to mount cameras to drywall, it is recommended to use drywall anchors (not included).
2. Adjust the camera stand to ensure that the camera has a satisfactory view of the area
you would like to monitor. Stand configuration depends on the mounting surface you
have chosen (see below for suggested stand configurations).

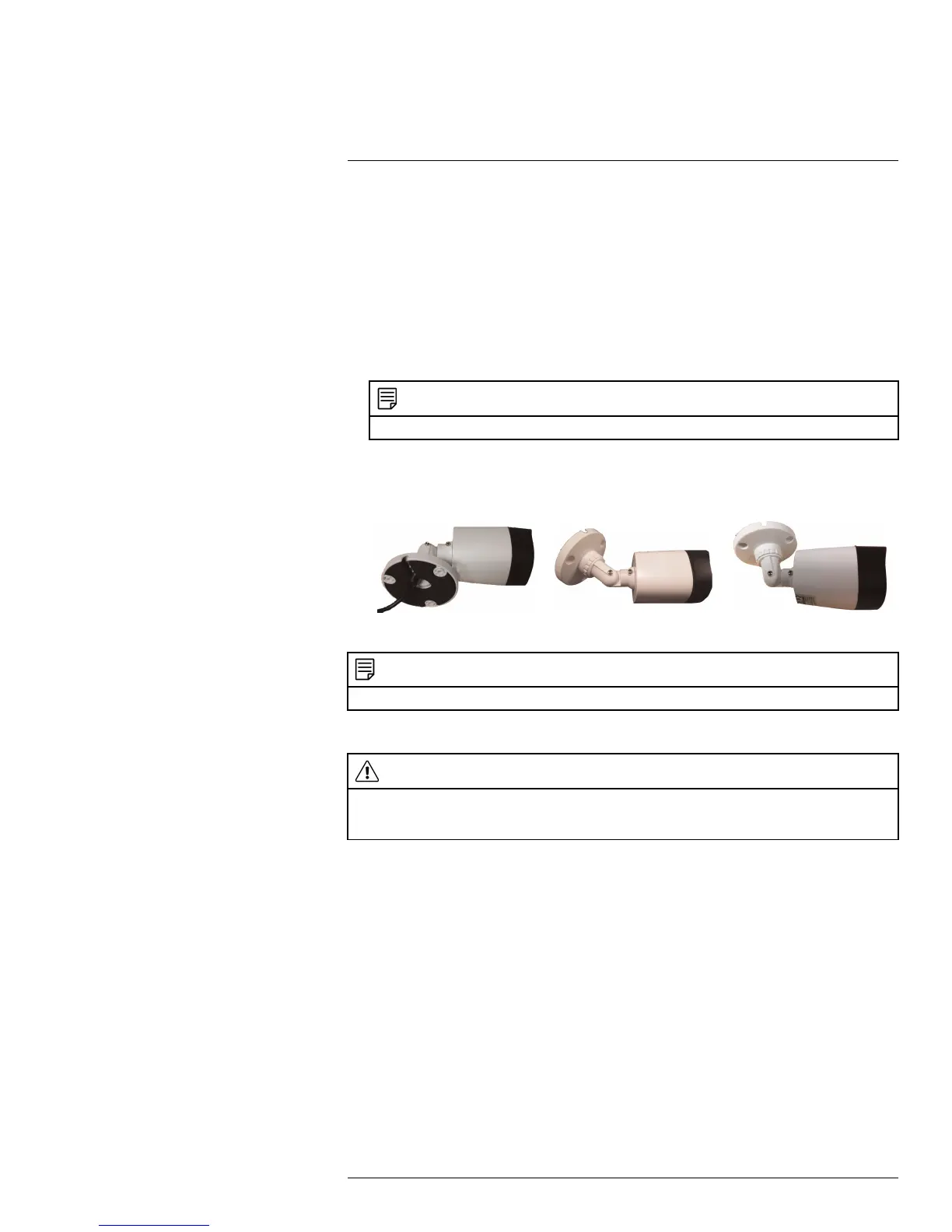

Table Mount Wall Mount
Ceiling Mount
NOTE
Camera model may not be exactly as shown.
6.11.4 Connecting Camera Extension Cables
CAUTION
The extension cable must be a single stretch of cable between the DVR and camera. You cannot connect
multiple extension cables to each other. For more details on extension cables, see 6.11.5 Extension Ca-
ble Options, page 14.
1. Connect the male power connector on the BNC extension cable to the female power
connector on the camera.
• Connect the BNC connector to the camera.
2. Connect the female power connector on the BNC extension cable to the power
adapter.
3. Connect the BNC connector to one of the Video Input ports on the rear panel of the
DVR.
4. Plug the camera power adapter to a power outlet.
#LX400060; r.30328/30328; en-US
13
