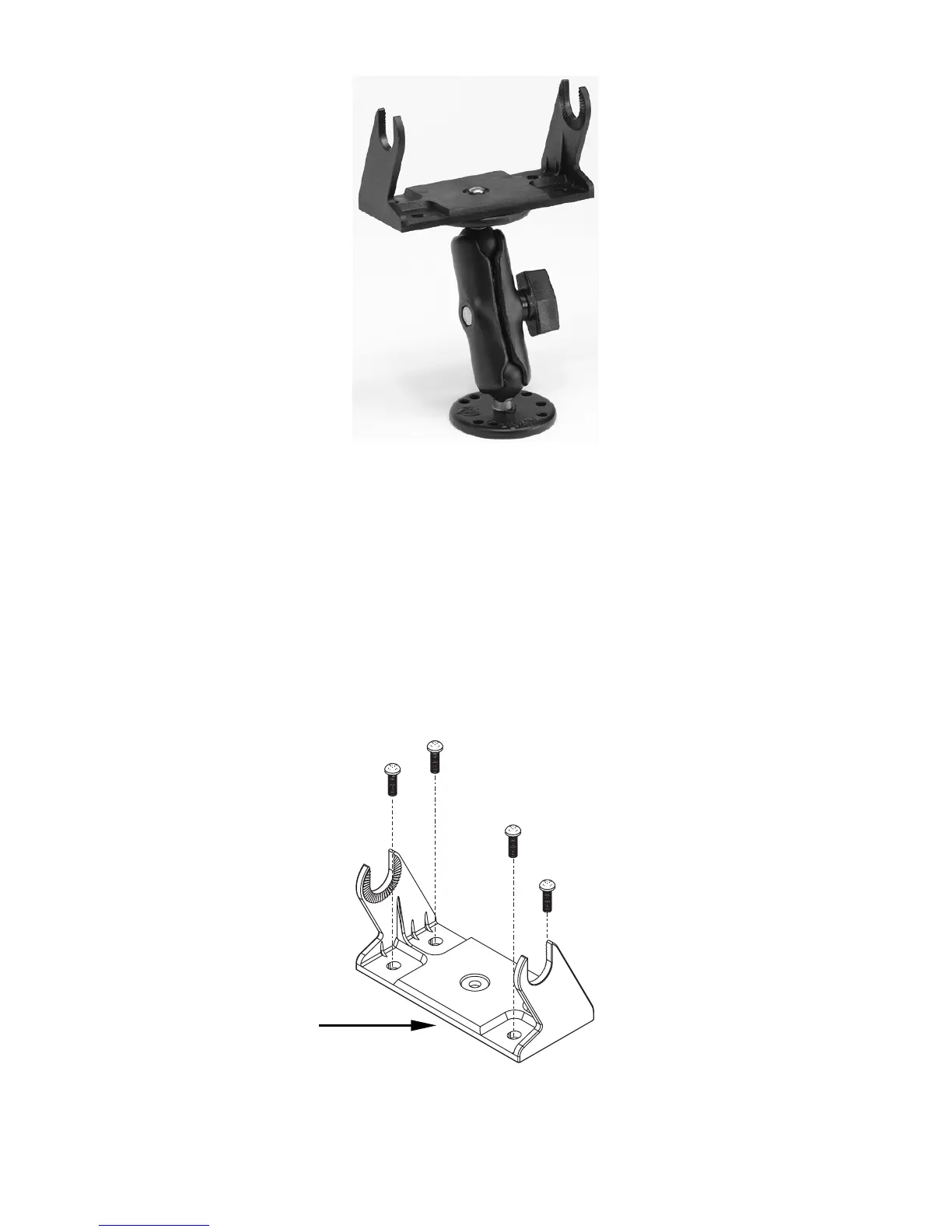

Optional R-A-M mounting system.
Bracket Installation
Mount the unit in a convenient location, provided there is clearance
behind the unit when it's tilted for the best viewing angle. This must
be a location with a clear view of the sky, so the internal GPS
antenna can lock-on to satellite signals. Make sure there is enough
room behind the unit to attach the power and transducer cables.
Holes in the bracket's base allow wood screw or through-bolt mounting.
You may need to place a piece of plywood on the back side of thin fiber-
glass panels to reinforce the panel and secure the mounting hardware.
Install the gimbal bracket. Position the bracket so the arms slope to-
ward the front of your unit.
Front
