62

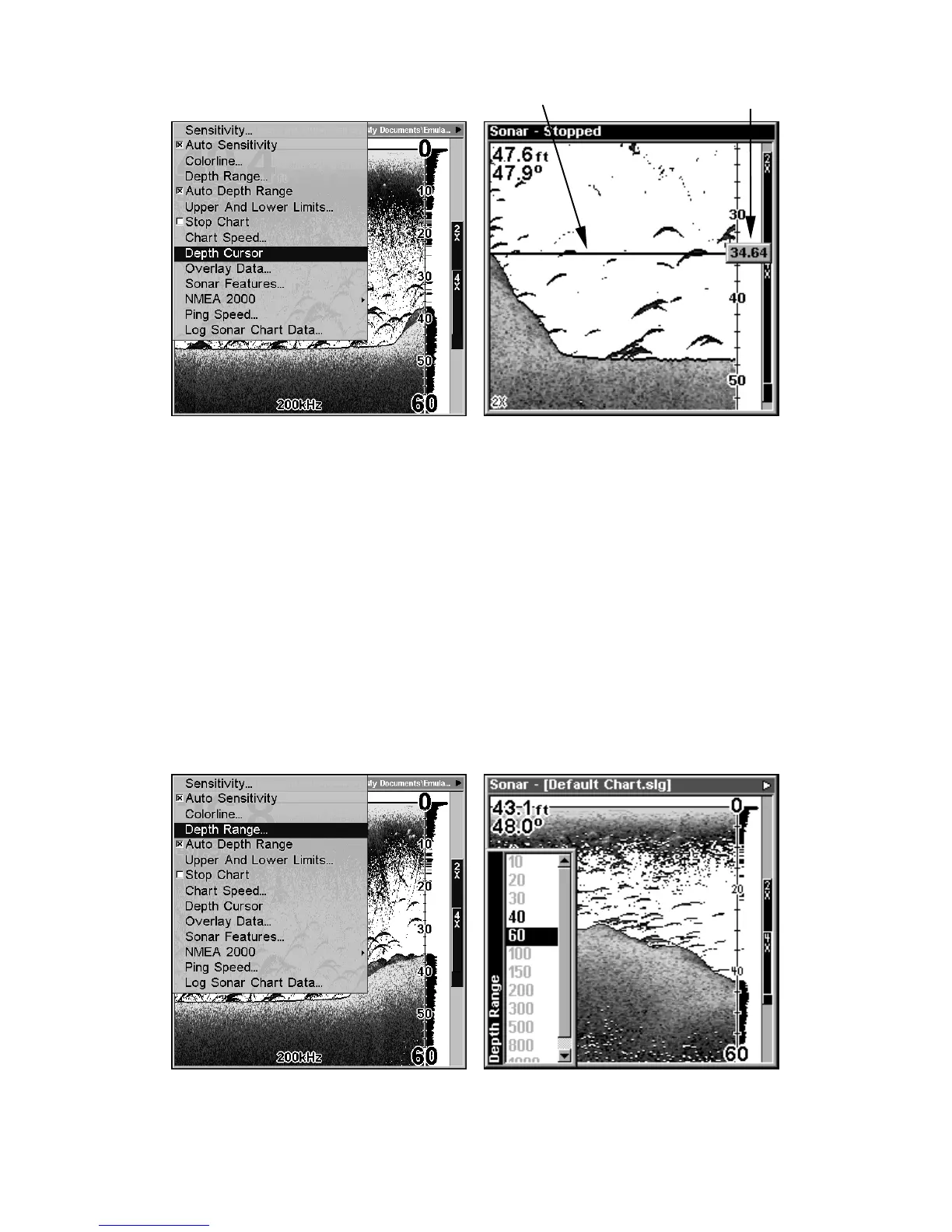

Sonar Page menu with Depth Cursor selected (left). Sonar chart with
active depth cursor (right). The cursor is set at 34.64 feet deep.
The cursor can be moved to any location on the screen, letting you pin-
point the depth of a target.
1. From the Sonar Page, press
MENU| to DEPTH CURSOR|ENT.
2. The depth cursor appears. Press move the Depth Cursor.
3. To clear the depth cursor, press
EXIT.
Depth Range - Automatic
When turned on for the first time, the bottom signal is automatically
placed in the lower half of the screen. This is called Auto Ranging and
is part of the automatic function. pending upon the bottom depth and
the current range, you can change the range to a different depth.
Sonar Page menu with Depth Range command selected (left). The
Depth Range Control Scale (right).
Cursor line
Depth box
