3. Instruments and Controls
3-1. Instrument panel and Switches

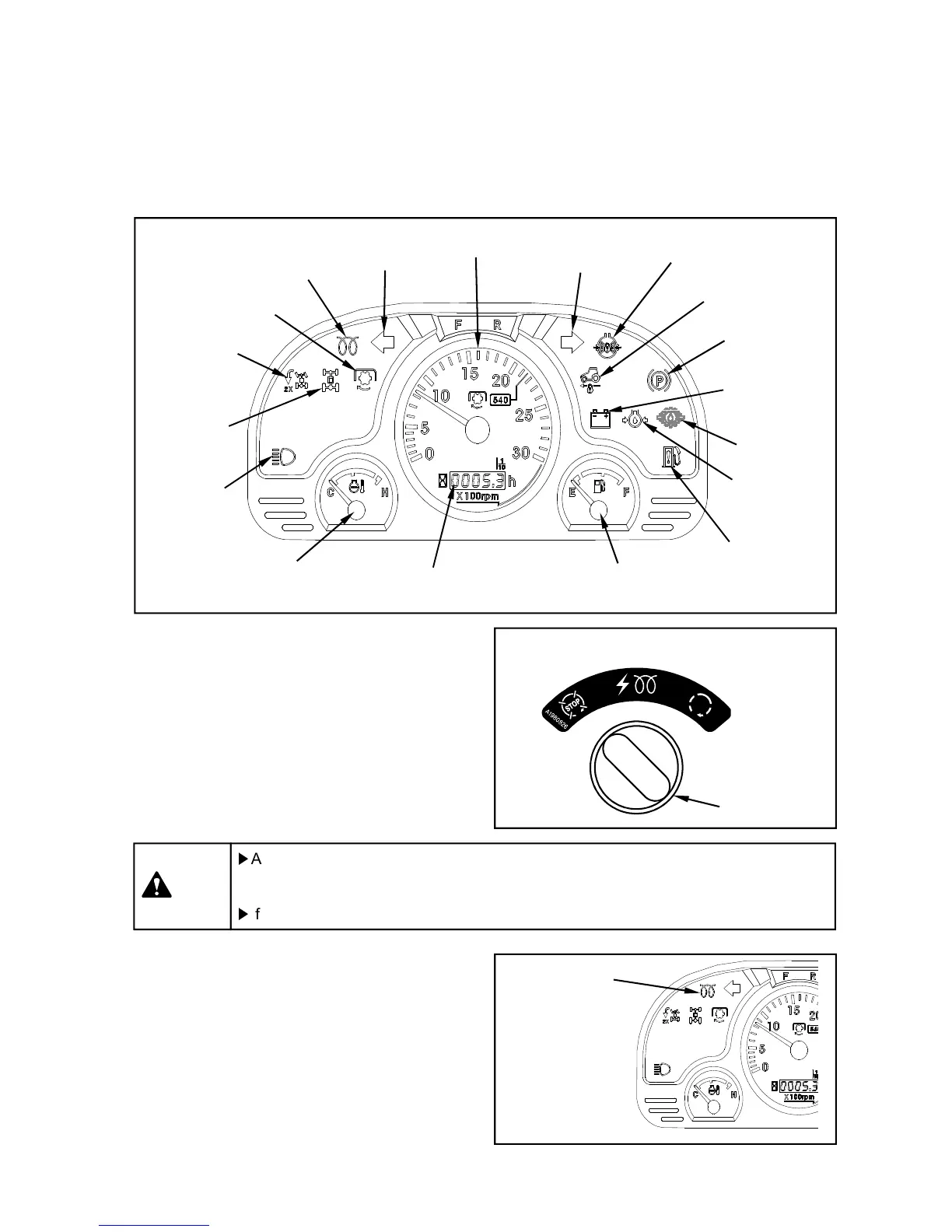

(1) The name of each part (Mechanical / HST)
Quick turn
Indicator
(option)
4WD
Tachometer
Turn signal
indicator (LH)
Turn signal
indicator (RH)
Differential lock
indicator
Battery charging
indicator
Parking brake
indicator
Cold start aid
indicator
PTO operation
indicator
Cruise control
indicator
(2) Key switch
 OFF – power off (engine stop)
 ON – power on & automatic glow
 START – engine start
4WD
Indicator
(option)
Fuel level Gauge
Hour meter
Engine coolant
temperature Gauge
Fuel filter
warning indicator
Engine oil
Pressure
indicator
High beam
indicator
Key switch
OFF
ON
START
PTO Pressure
indicator
3
3 3
3 - 1
(3) Cold start aid indicator
 If the cold start aid device is working, this indicator
will be 'ON'. After the indicator is 'OFF', start the
engine.
▶ As soon as engine starts, turn the Key switch to 'ON' position immediately. If not, it
may cause damage to starter motor.
▶ If the tractor is not in use, the ignition key should be removed.
Caution
Cold start aid
Indicator
