LS tractor R4047H - Adjusting Wheel Tracks and Tire Replacement

(11) Adjusting Wheel tracks and
tire replacement (Rear wheel)
 Track between rear wheels
1094mm (43.1in.) ~ 1262mm (49.7in.)
 If the front wheel track is adjusted, check the
clearance between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted as following page.

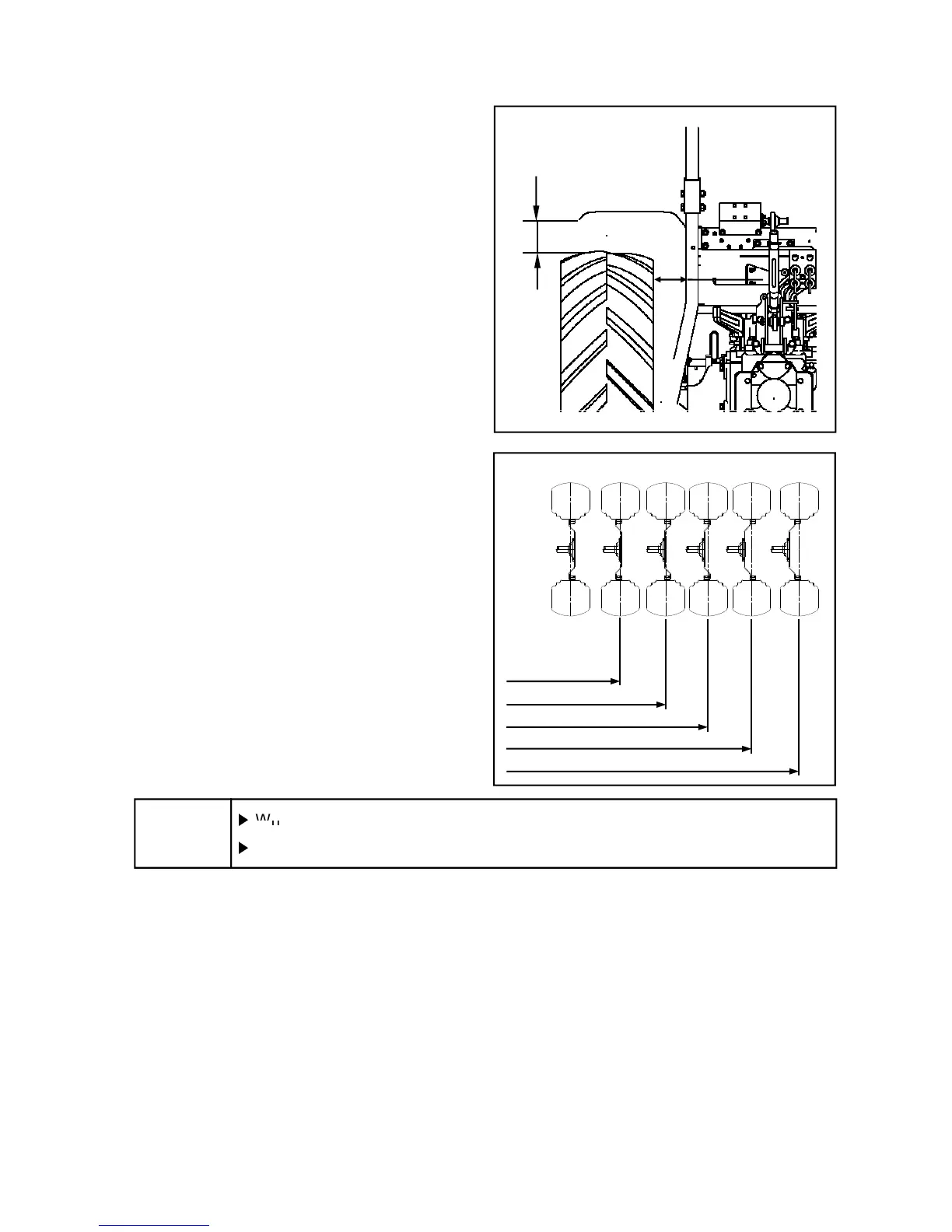

 When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
-
A : 15mm (0.6 in) (Minimum)
“B”
“A”
▶
When adjusting the wheel track, pay attention to the direction of tire lugs.
-
A : 15mm (0.6 in) (Minimum)
- B : 30mm (1.2 in) (Minimum)
Unit : mm (inch)
1094 (43.1)
1150 (45.3)
1206 (47.5)
1262 (49.7)
1066 (42.0)
4
4 4
4 - 19
▶
When adjusting the wheel track, pay attention to the direction of tire lugs.
▶ if it shows “/\” shape when looked behind, it is correct.
Notice
