LS tractor R4047H User Manual

Caution
▶ Check each part before starting
engine.
▶ Check if there is some other
people around before starting.
▶ Place all the levers and switches in
NEUTRAL or OFF position.

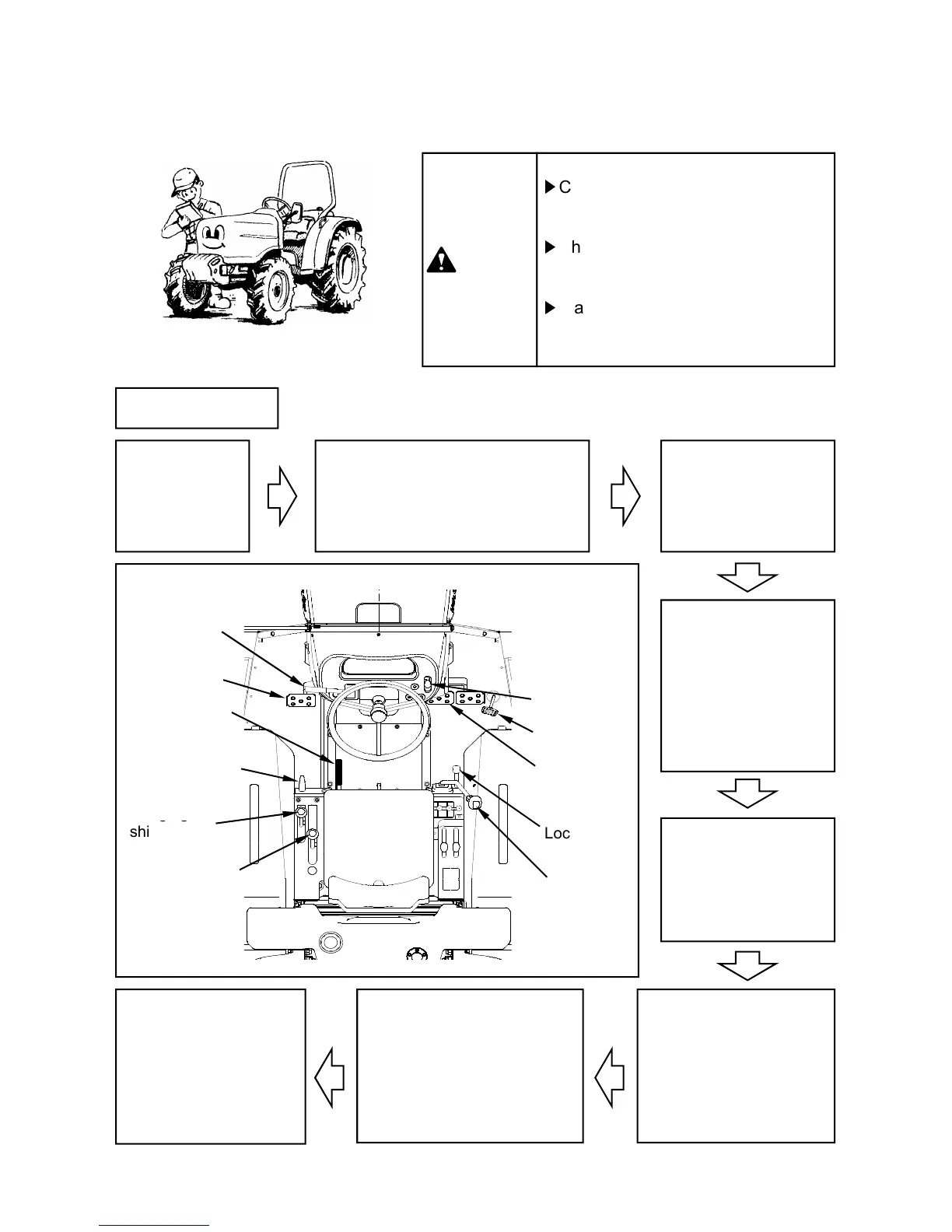

4. Operation and Work
4-1. Engine start and stop
(1) Engine start
Mechanical type
1. Sit in the
driver’s seat and
apply the parking
brake lever.
2. Place the main gear shift lever,
range gear shift lever, shuttle lever in
NEUTRAL and PTO switch in OFF
position.
3. Push the throttle
lever to the middle
position of the full
throttle.
4. Turn the key switch
to “ON” and check if
engine oil pressure
indicator, battery
charging indicator, cold
start aid indicator is ON.
Shuttle lever
Clutch pedal
Parking brake
lever
4WD drive lever
Range gear
Throttle lever
Brake pedal
Throttle pedal
Differential
Mechanical type
4
4 4
4 - 1
5. Wait until cold start
aid indicator is OFF.
(about 10~15 seconds)
6. Depress the clutch
pedal fully and turn the key
switch to “START” position.
As soon as the engine
starts, release the key
switch to “ON” position.
7. Check if engine oil pressure
indicator, battery charging
indicator is OFF. If any these
indicators is ON, stop the
engine immediately and check.
8. Run engine a few
minutes to allow engine
oil and transmission oil to
warm up.
Range gear
shift lever
PTO gear lever
(if fitted)
Main gear
shift lever
Differential
Lock pedal
