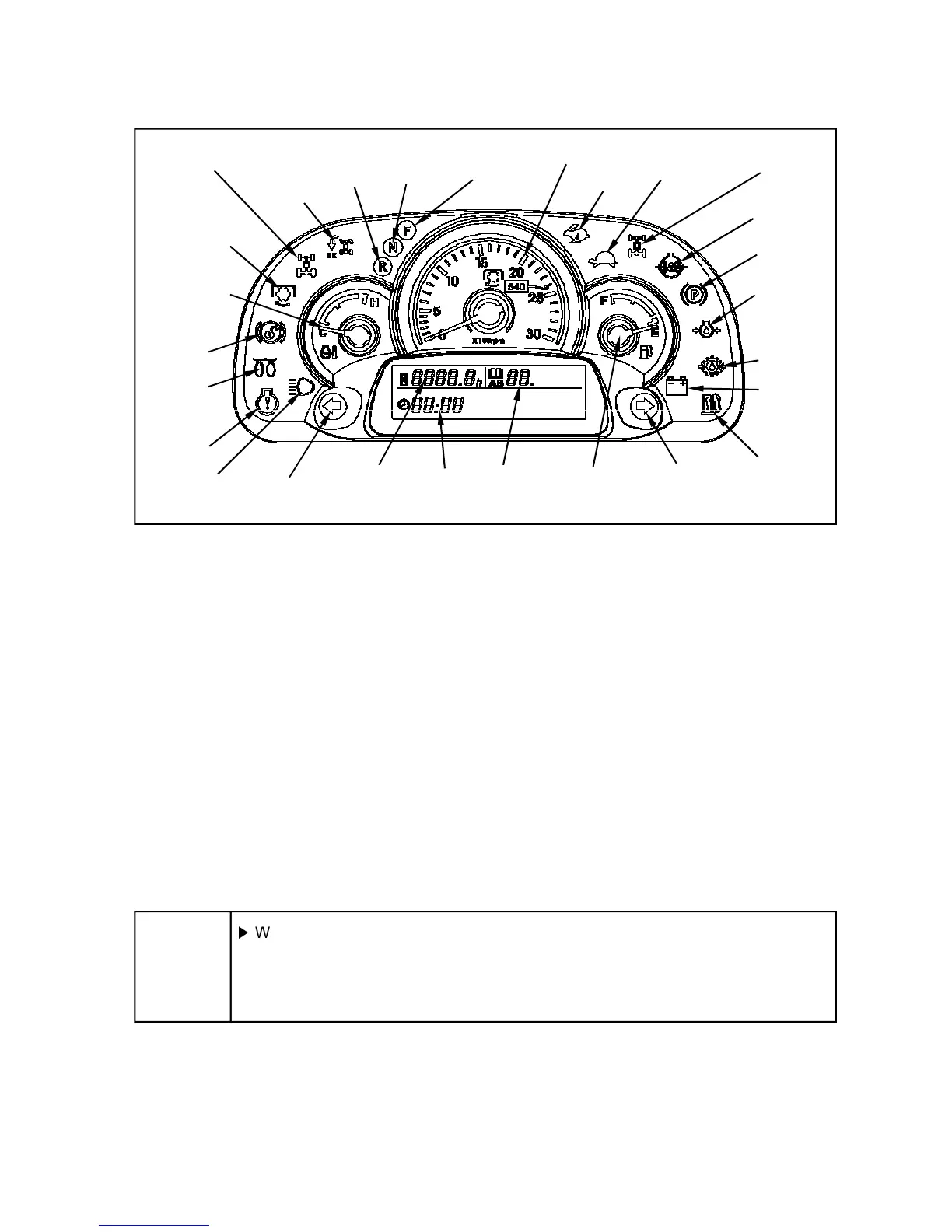

Fuel level
gauge
Hour meter
Turn signal
indicator (LH)
Error code
display
Clock
Forward indicator : When the EZ-Shift shuttle lever is placed on forward position, this indicator turns
on.
Neutral indicator : When the EZ-Shift shuttle lever is placed in neutral position, this indicator turns on.
Reverse indicator : When the EZ-Shift shuttle lever is placed on reverse position, this indicator turns
on.
Hour meter : It displays accumulated running hour of the engine. The operating hour “0005.3” means
the tractor has been operated for 5.3hr (5 hours and 18 minutes).
Clock : It shows current hour and minute.
Error code display : Error code relating to the EZ-Shift system is displayed. (For further details, See
next page)
Not used
3
3 3
3 - 19
High / Low speed indicator : It is used to check the status of the clutch pedal sensor, main clutch
control switch and range gear sensor related to EZ-Shift control. (See page 3-22)
Refer to the mechanical type instrument panel about other indicators and gauges. (See page 3-1)
▶
When placing the key switch to “ON” position, “Low speed indicator” sometimes
turns on or not, depending on the position of the range gear shift lever. It’s not a
failure but a signal of the electrical device check related to EZ-Shift control.
(For further details, See page 3-22)
