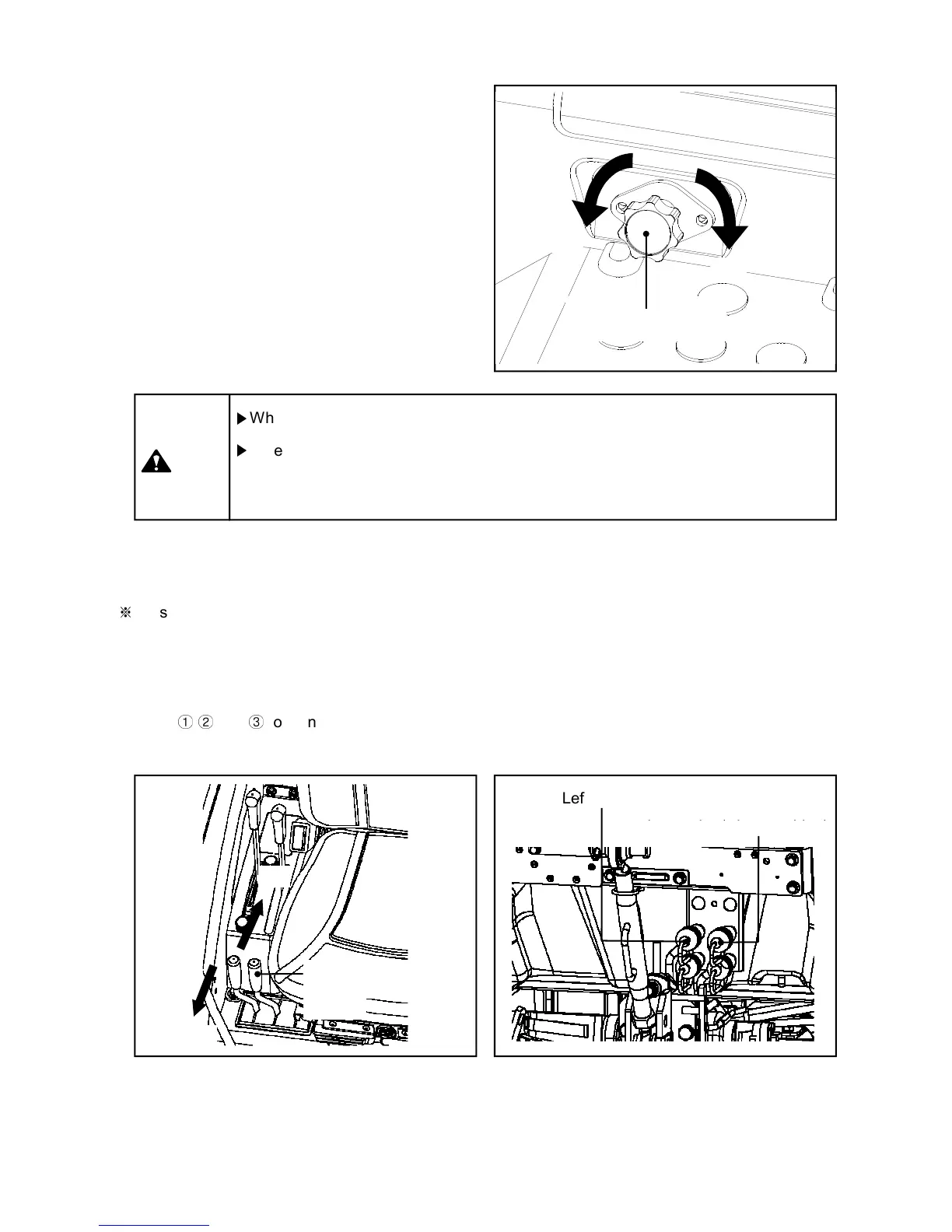

Down speed
control knob
Fast
Slow
(3) Down speed control knob
Turn the valve knob to the clockwise to lower the
implement slowly and to the counter-clockwise
to rise speed faster. If turning clockwise fully, the
implement is fixed and even If lowering down the
control lever, the implement does not let down.
Tiller : Slow in down speed
Plough : Fast in down speed
When working in hard ground, slow down the
down speed to avoid the bounding of the
implements.
When driving on the road, turn right the down speed control knob slightly to lock.
When driving on the road, turn right the down speed control knob slightly to lock.
▶
When changing the blades of tiller or removing grass, stop the engine and turn the
down speed control knob to right slightly to lock. (The valve knob may turn two
revolutions.)
Warning
Left coupler (when pulling)
(4) Remote control lever and Quick coupler (if fitted)
※
This is used to operate the implement (i.e. Dump trailer, Hydraulic conversion plough, etc) attached
to the tractor by the hydraulic pressure.
If you pull the remote control lever backward, the hydraulic pressure works to the left coupler, and
the right coupler is connected to the drain.
Lever
①
,
②
and
③
(option) operates respectively and when operating the levers at the same time,
the one received less force begins to start first.
3
3 3
3 - 30
Remote
control
lever
Pull
Push
