LS tractor R4047H User Manual

1. Press the clutch and brake pedal.
Place the shuttle lever, main gear shift
lever in NEUTRAL and PTO switch to
OFF position.
2. Push the position control lever forward
to lower implements to the ground. Turn
key switch to “OFF” position.

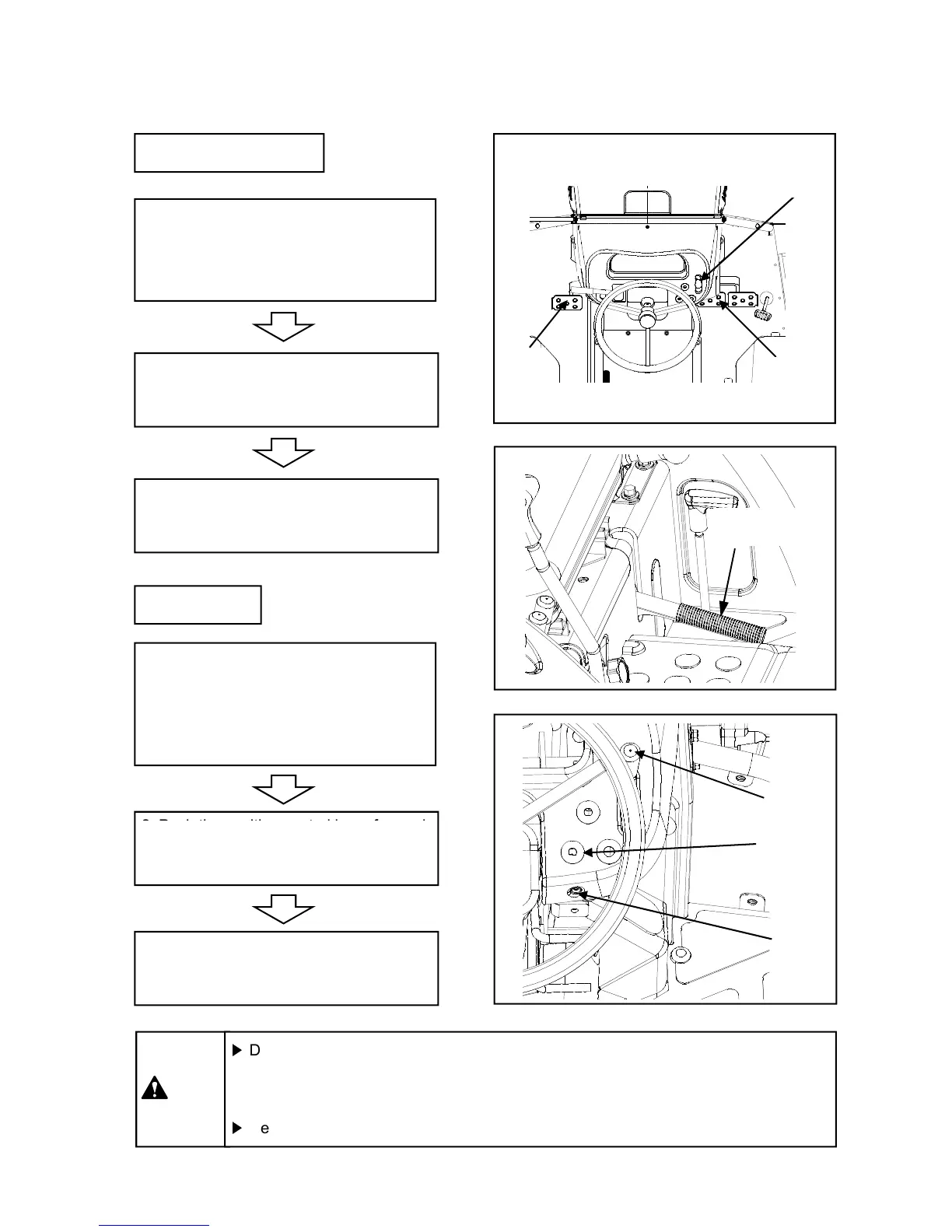

(4) Stopping tractor
Mechanical type
Clutch
pedal
Throttle
lever
Brake
pedal
3. Apply the parking brake and release
the brake pedal and clutch pedal slowly.
key switch to “OFF” position.
Throttle
lever
1. Release the HST forward/ reverse
pedal slowly and pull the throttle lever
backward to reduce the engine speed,
and place the range gear shift lever in
NEUTRAL and PTO switch to OFF.
2. Push the position control lever forward
HST Type
Parking brake
lever
4
4 4
4 - 8
Caution
▶ DO NOT keep apart from the tractor in the state that the transmission gear is
placed in NEUTRAL and the parking brake is not applied. The tractor may roll.
Apply the parking brake at all times before leaving the tractor.
▶ Remove the ignition key always after stopping engine.
Key
switch
PTO
switch
3. Apply the parking brake and release
the brake pedal slowly.
2. Push the position control lever forward
to lower implements to the ground. Turn
key switch to “OFF” position..
