LS tractor R4047H User Manual

(8) Electrical Sensor & Switch
Check (EZ-Shift)
 Before starting engine, check the electrical
switches or sensors - clutch pedal sensor, main
clutch control switch, range gear sensor related
to EZ-Shift control.
 After turning the key switch to “ON” position,
check them as follows.

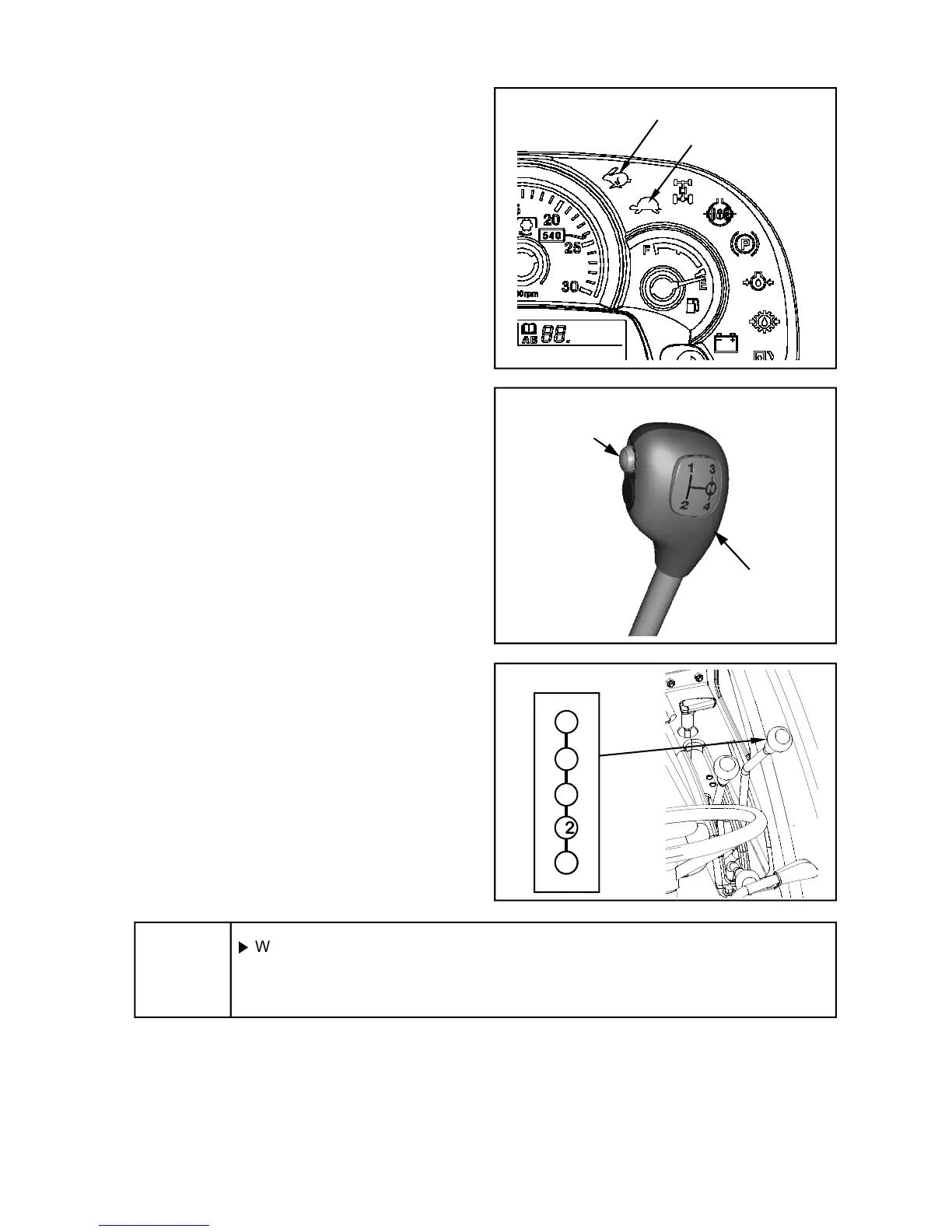

High speed indicator
Low speed indicator
1) Clutch pedal sensor – check it using clutch pedal.
- pressed : High speed indicator - ON.
- released : High speed indicator - OFF.
2) Main clutch control switch
Main clutch
2) Main clutch control switch
- pressed : High speed indicator - ON.
- released : High speed indicator - OFF.
3) Range gear sensor – check it using range gear
shift lever.
- 1
st
, 2
nd
, Neutral : Low speed indicator - ON.
- 3
rd
, 4
th
gear : Low speed indicator – OFF.
 If the High / Low speed indicators are operated
well as above, these switches or sensors have
no problem.
 After starting engine, it is NOT available to
check these switches or sensors.
4
44
4
N
NN
N
3
33
3
2
22
2
Range gear shift lever
Main gear
shift lever
Main clutch
control switch
3
3 3
3 - 22
▶ When checking the switch or sensor, it is only available to check only one switch
or sensor at a time. For example, checking the main clutch control switch with
pressing the clutch pedal is NOT available.
Notice
1
11
1
2
22
2
1
11
1
