(9) Tightening state of Bolts and Nuts of each part
 Check if the bolt or nut of each part is loosened and If loosened, tighten it again.
 Check the bolts and nuts of tires before starting engine.
(10) Adjustment of Clutch pedal
play (Mechanical type)

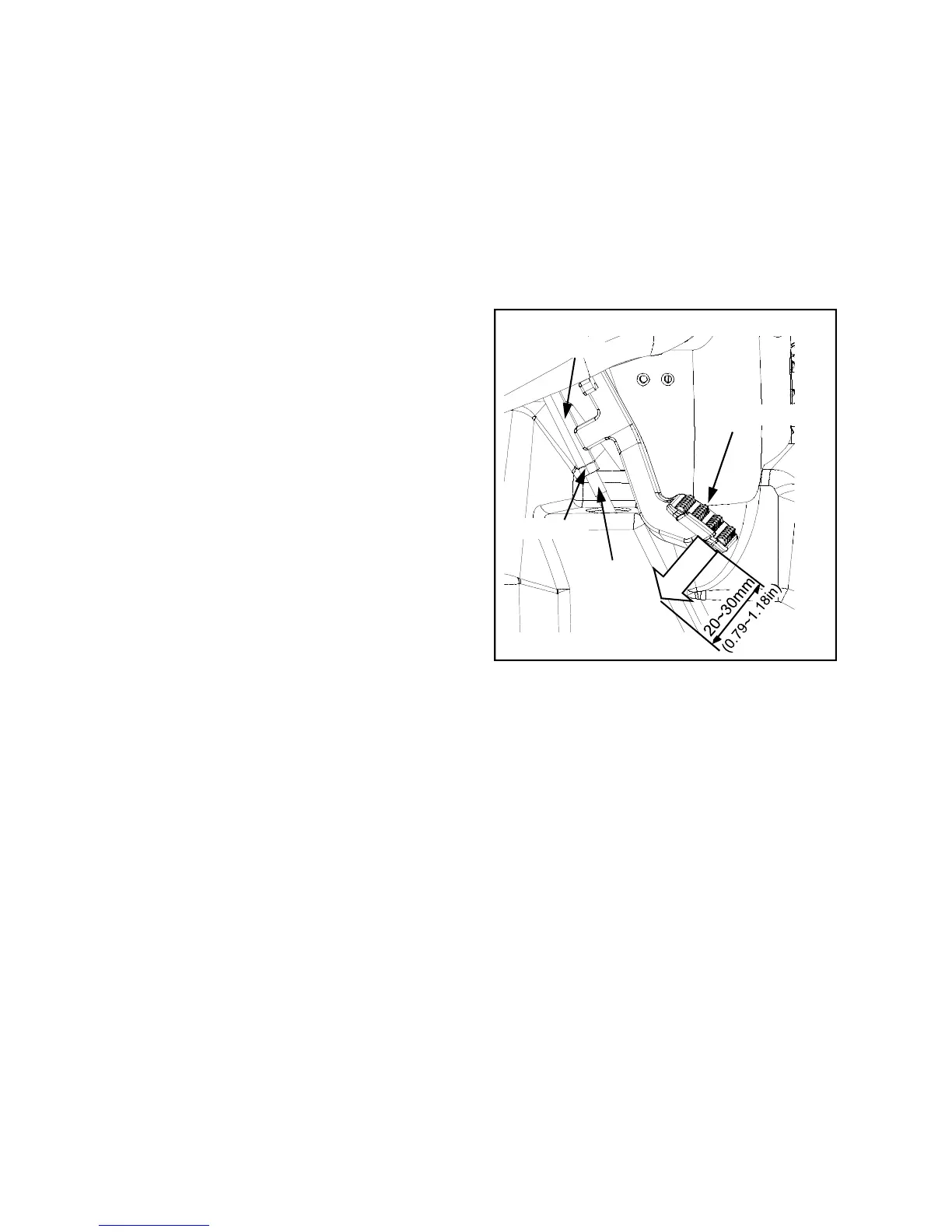

 Check the distance of clutch pedal play.
 Normal distance : 20~30mm (0.79~1.18 in.)
if the distance is over
30mm (1.18 in.),
Clutch pedal
Adjuster
if the distance is over
30mm (1.18 in.),
adjust it as below.
1. Loosen locking nut and turn adjuster to adjust.
2. If the adjuster is tightened, the pedal play shall
be decreased, and if adjuster is loosened, it
shall be increased.
3. After adjusting the pedal play, tighten the
locking nut.
4. Check if the clutch is disengaged completely.
Clutch pedal
Locking nut
Clutch rod
5
5 5
