LS tractor R4047H - Time Clock Adjustment (EZ-Shift)

(6) Time clock adjustment (EZ-
Shift)

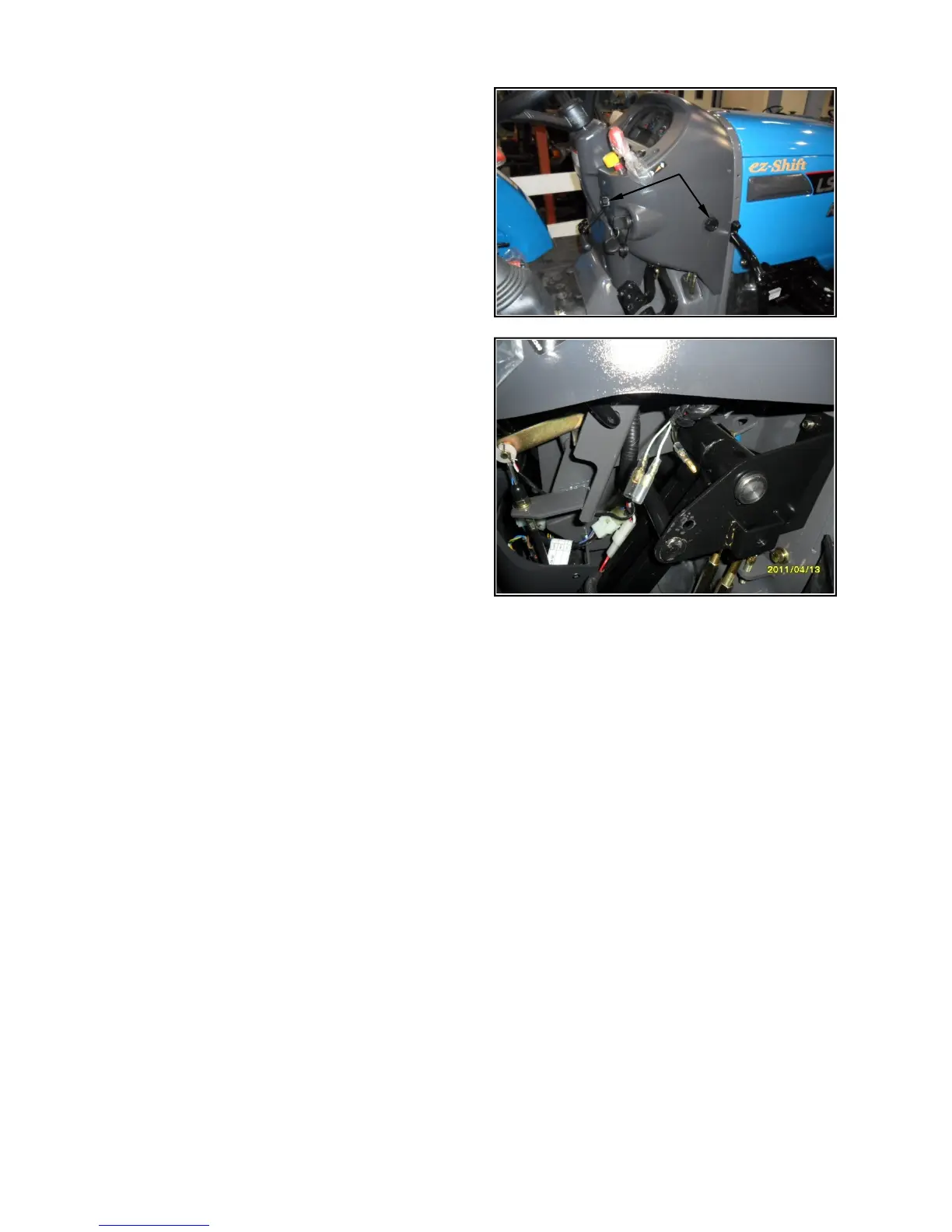

 Remove the two knob bolt(1) and remove the
dash under cover.
 Turn the ignition key ON.
Use the 3 pin connector which is located under
dash to adjust the time clock.
No. 1 : Male, Black
No. 2 : Female, Light Green with Red line
No. 3 : Female, White with Blue line
 To change hours
Touch the connector No.1 to No.3 one time
①
and hour will go up by one.
Do that again – as needed
 To change minutes
Touch the connector No.1 to No.2 one time
and minute will go up by one.
Do that again – as needed
 Turn the ignition key OFF
