LS tractor R4047H - Reference of PTO Shaft; PTO Safety Cover and Protection Cap

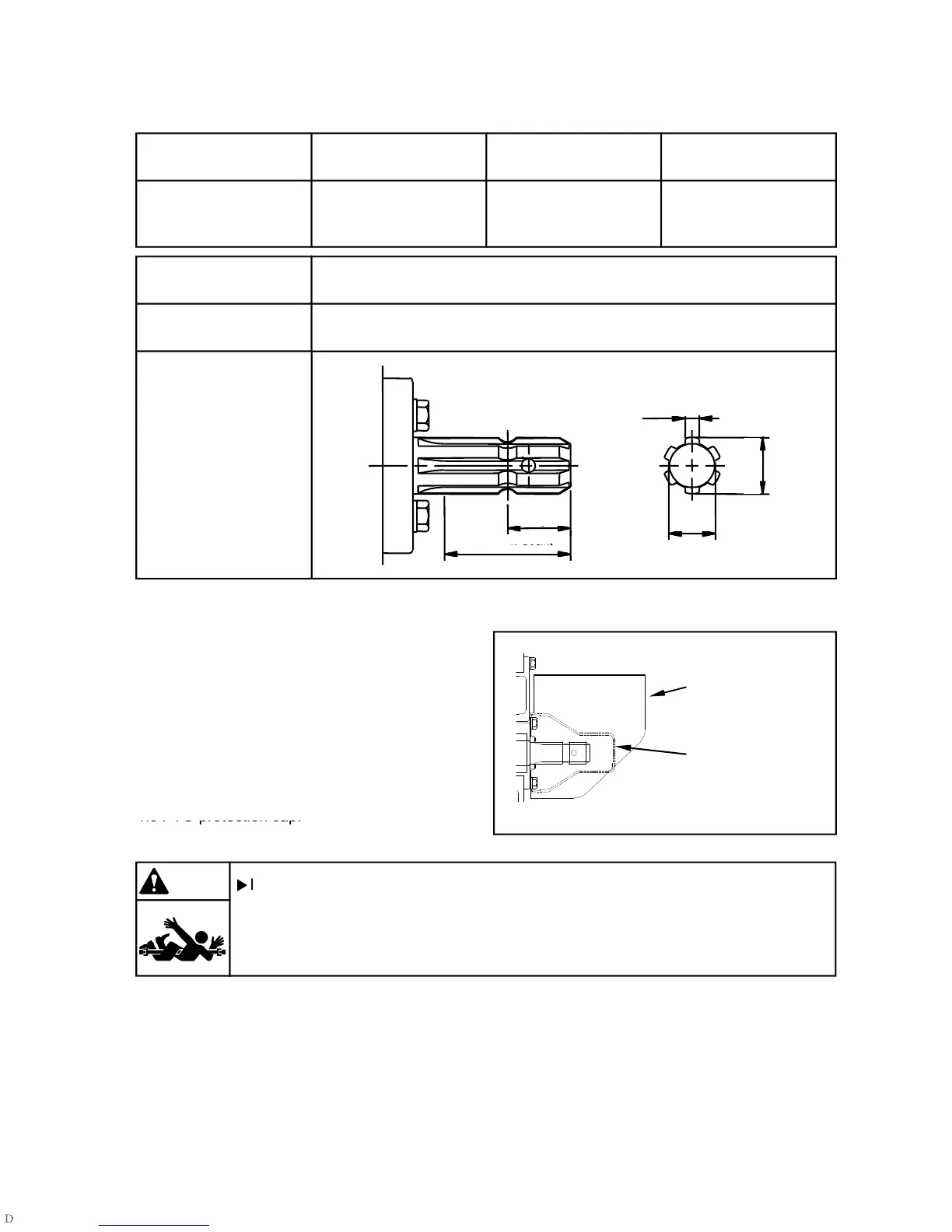

(6) Reference of PTO shaft
PTO gear
PTO / Engine speed
Revolution direction
Ground clearance
1 2 3
540 / 2409 rpm 750 / 2375 rpm 1000 / 2381 rpm
Clockwise (direction from which looking at PTO shaft)
(0.34 in)
620mm (24.4 in)
Shaft dimension
(Unit : inch)
(3.0 in)
(1.5 in)
(0.34 in)
(1.1 in)
(1 3/8 in)
PTO shaft
protection cap
PTO safety cover
(7) PTO safety cover and
protection cap
 Attach PTO safety cover always.
 If the safety cover is damaged or removed,
replace it with a new one.
 When PTO is not used, apply grease and insert
the PTO protection cap.
4
4 4
4 - 15
▶ If you contact the rotating shaft, it may cause a severe injury.
- DO NOT touch shaft which is rotating.
- DO NOT remove the safety cover.
- Avoid loose clothes that can easily be rolled up in the revolving shaft.
Warning
the PTO protection cap.
