1. Pull the position control lever
back to lift the implement up after
starting engine.
2. Set the engine speed at 1500
rpm.

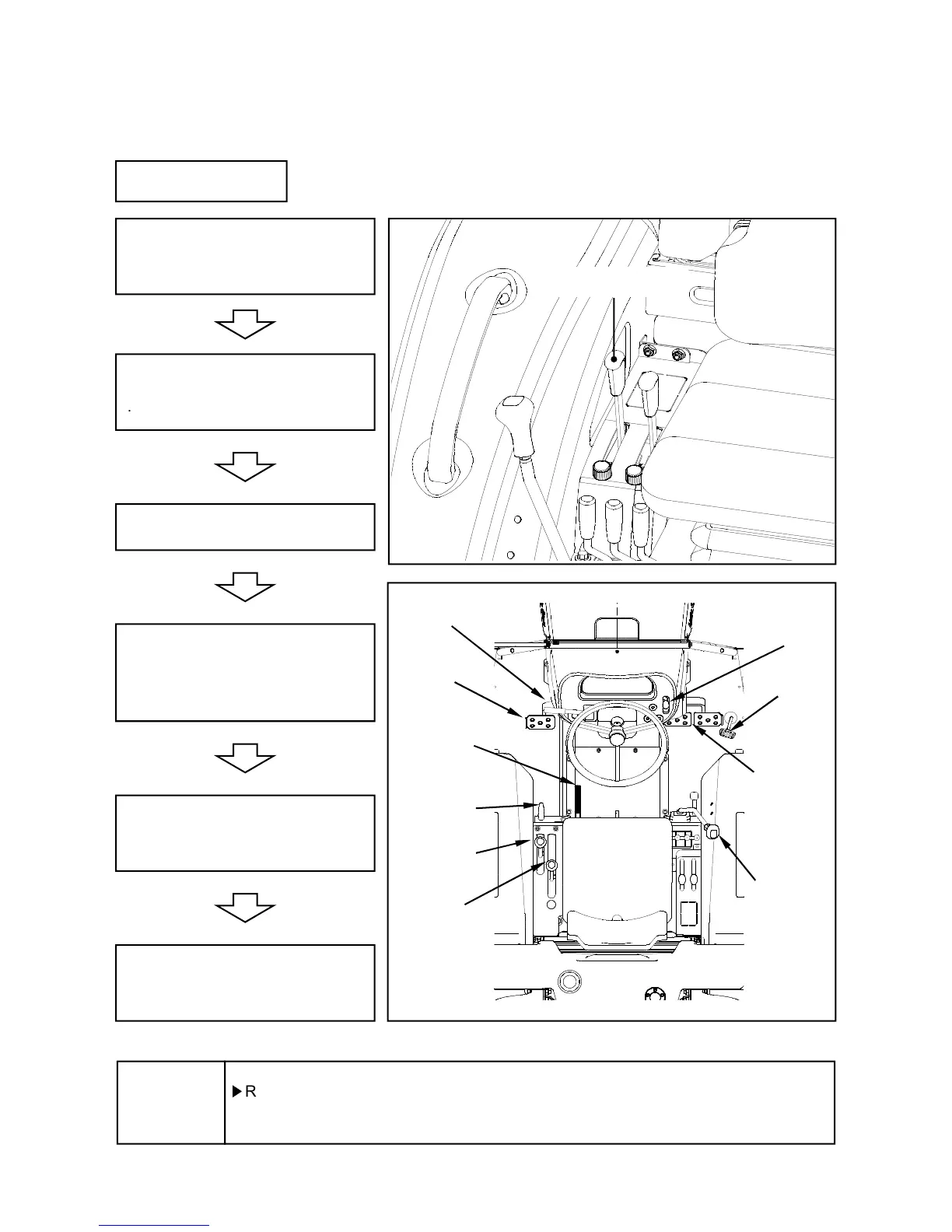

4-2. How to drive and how to stop
(1) How to drive
Mechanical type
Position control lever
rpm.
3. Depress the clutch pedal fully.
4. Place each transmission gear
lever (Main, Range, Shuttle lever)
on the desired position.
5. Press the brake pedal and
Shuttle lever
Clutch pedal
Parking
brake lever
4WD lever
Throttle lever
Brake
pedal
Throttle
pedal
4
4 4
4 - 4
5. Press the brake pedal and
release the parking brake lever.
6. Release the clutch pedal slowly,
and the tractor starts.
Release the clutch pedal slowly. If you release the clutch pedal suddenly, the gear
life shall be reduced and it may cause a sudden start.
Notice
Range gear
shift lever
PTO gear
lever (if fitted)
Main gear
shift lever
