LSIS eXP Series, eXP20-TTA User Manual

Chapter 1 General Introduction
1-2
1.2 Feature
XGT Panel series has the following features.
(1) Various types of external interface
(a) Supporting various device of USB, Ethernet, it maximizes the customer’s usability.
Various communication connectors are placed at the lower side so that it can be connected in a variety
of types with the control device such as PLC, inverter, etc. Through RS-485, RS-232C, RS-422/485,
Ethernet (10Base-T /100Base-TX) communication, it can be connected with control device.

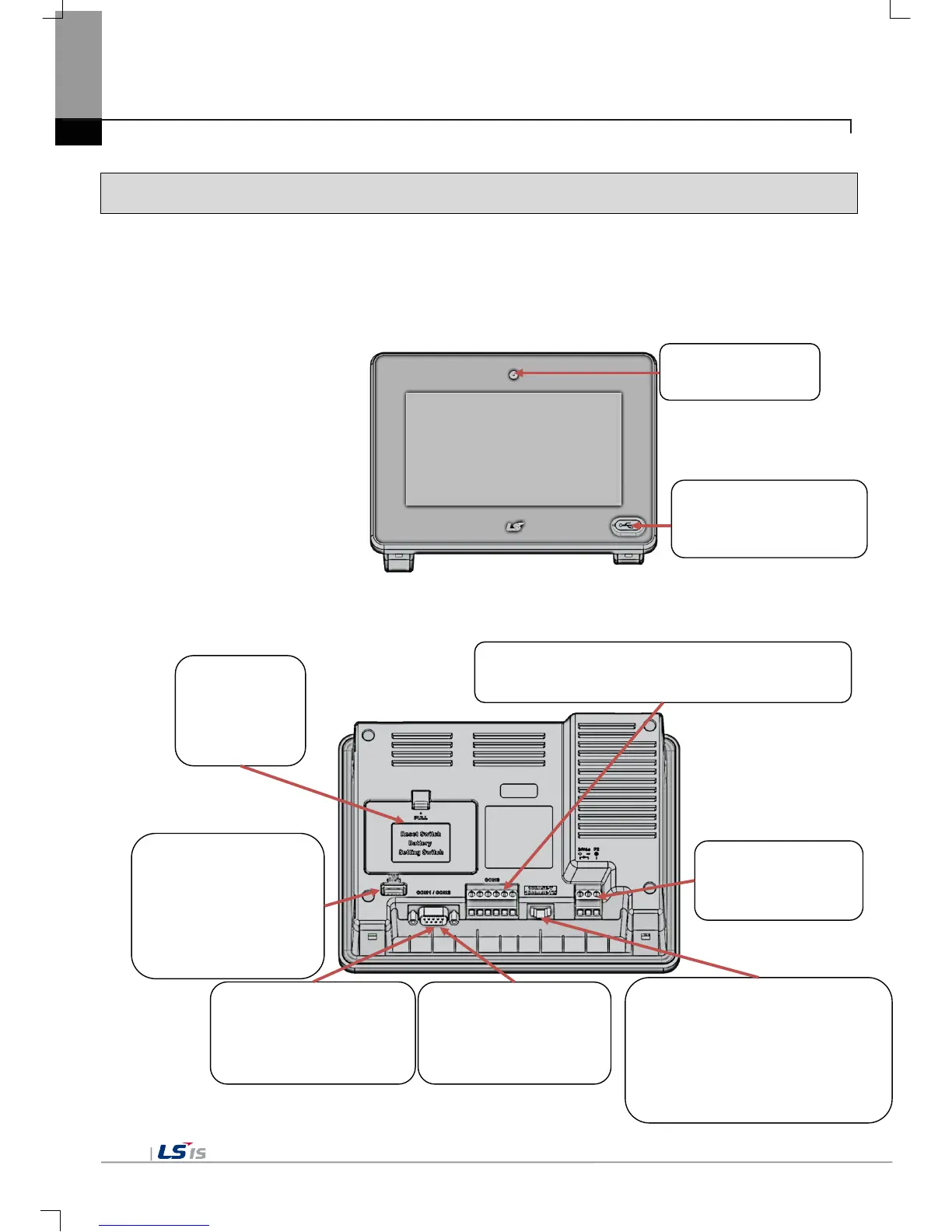

Status LED
- When power on,
USB DEVICE(eXP30/40/60)
- Project download through
XP-Builder
Battery Cover
- Reset Switch
- Battery,
- Setting Switch,
RS-422/485(eXP40/60)
- Control device that can be communicated such as PLC
USB HOST
- Data Backup
(alarm, logging, recipe, etc.)
- Project data storage
(image, upload project, etc.)
- Mouse, Keyboard,
RS-485(eXP40/60)
RS-422/485(eXP20/30)
- Control device that can be
communicated such as PLC
Ethernet
- Project downloads through XP-Builder
- Control device that can be communicated
such as PLC
-
Connected with fieldbus and open
network
Power Terminal
- Composed of power
input and PE terminal
RS-232C
- Control device that can
be communicated such as
PLC

LSIS eXP Series, eXP20-TTA Specifications

General

Brand	LSIS
Model	eXP Series, eXP20-TTA
Category	Touch Panel
Language	English
