Chapter 2 System Configuration

2-3

2. eXP30-TTA(B)/DC, eXP30-TTE/DC

①

③

②

⑤ ⑥

⑦

⑧

④

⑨

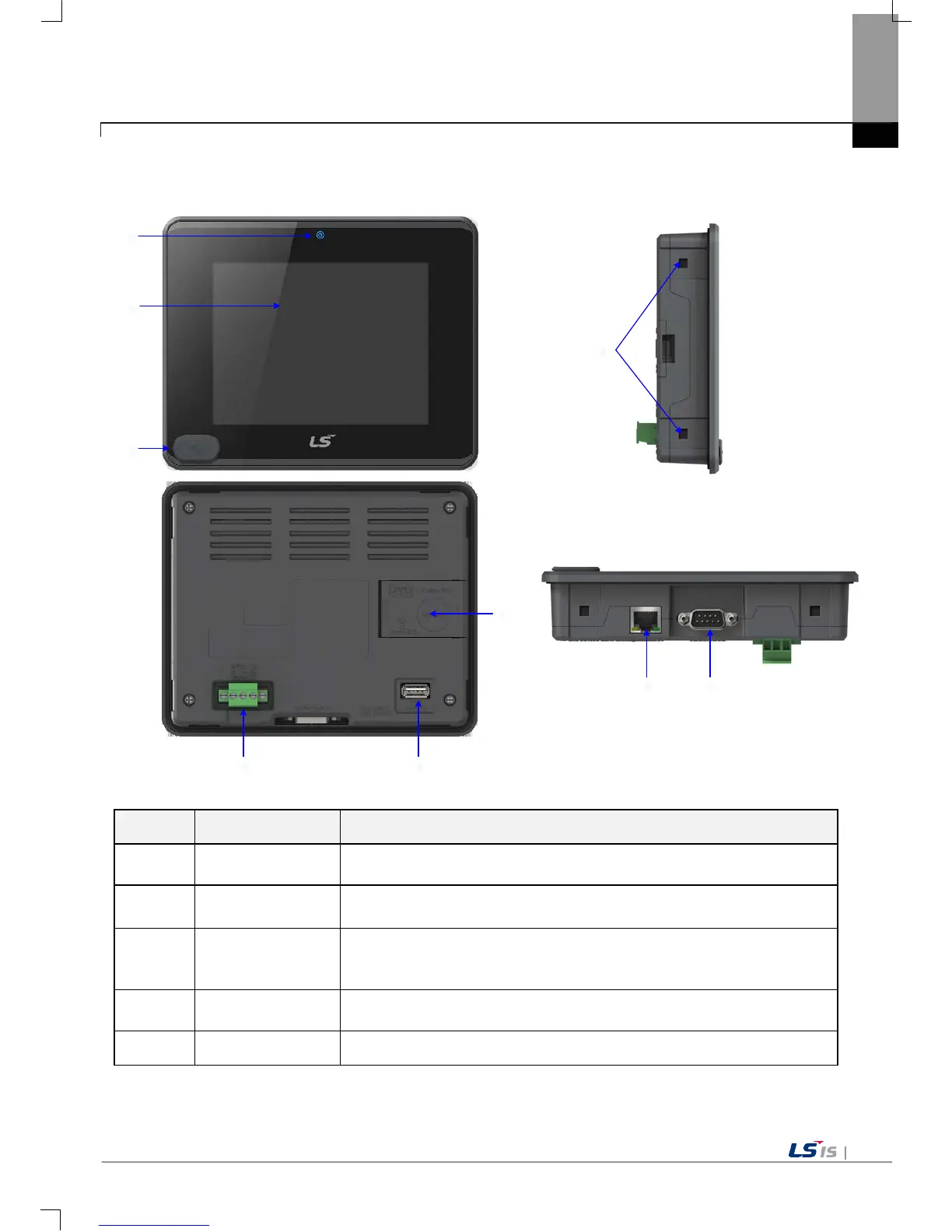

Items Part Names

Descriptions

① Front Part

1) Analog Touch Panel: Input by user’s touch

2) LCD: Screen indication

② Power LED

Indicating the state of device (On: BLUE)

※ High Luminance Blue LED

③ USB Device

1) Logging/Recipe/Screen Data Backup

2) Send project data and XP-Run time

3) Receive back data and project file

④

Panel Mounting

Panel

Fixing XGT Panel on the panel using bracket

⑤ Power Terminal Composed of Power Input(DC24V) and PE Terminal
