Chapter 10 Installation and Wiring
10-9

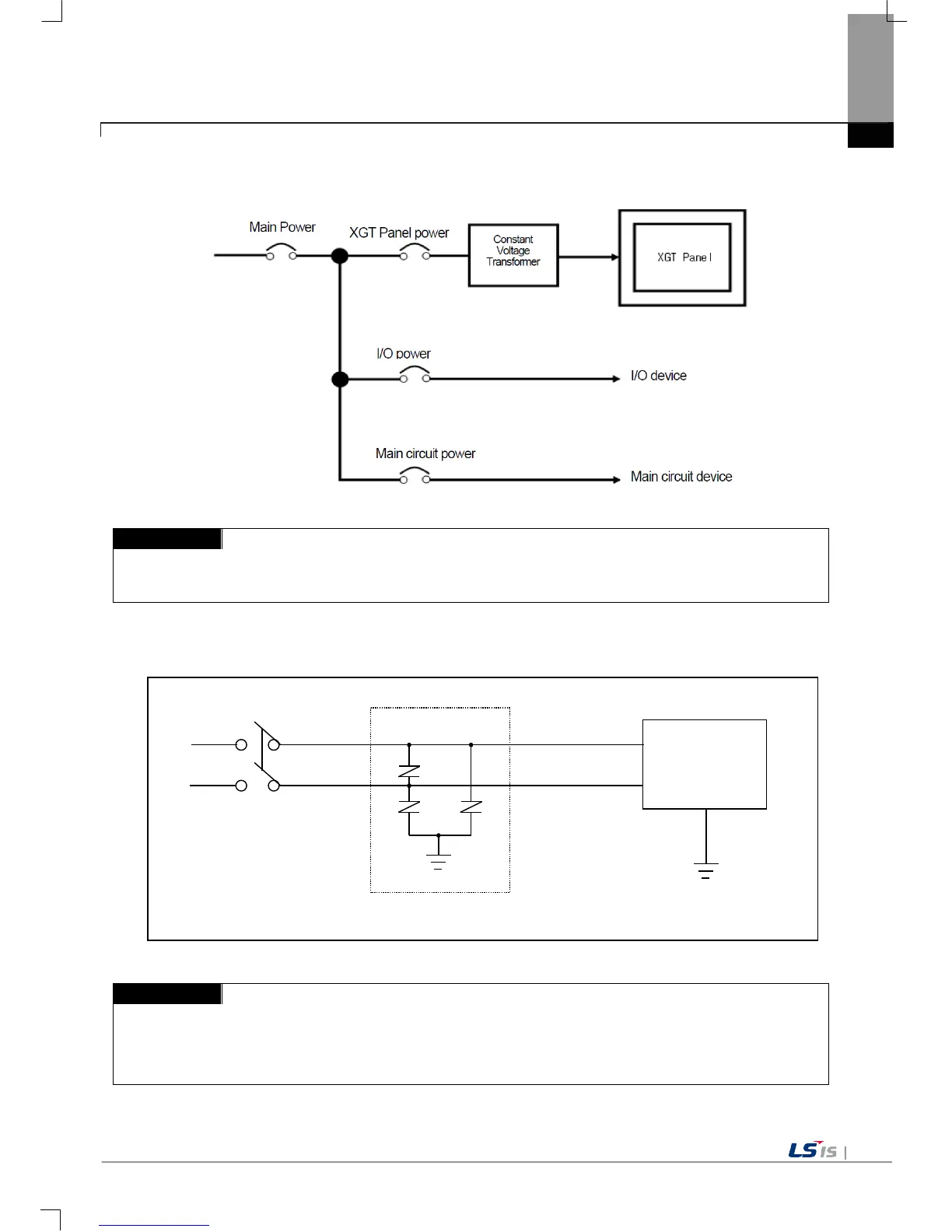

Separate the XGT Panel power from the I/O device and main circuit device.
Remark
Separate the XGT Panel power supply cable from the main circuit cable (high voltage and current) and
input/output cable. Maintain a minimum separation of 100mmbetween cables.
Use a lightning surge protector to prevent damage from lightning strikes.
Remark
(1) Separate E1, the ground connection for lightning surge protector, and E2, the ground connection for
XGT Panel.
(2) Set lightning surge protector to below the allowable surge voltage to provide protection if the voltage
increases to its maximum.
E2
XGT Panel
E1
Surge absorber to prevent the lighting
