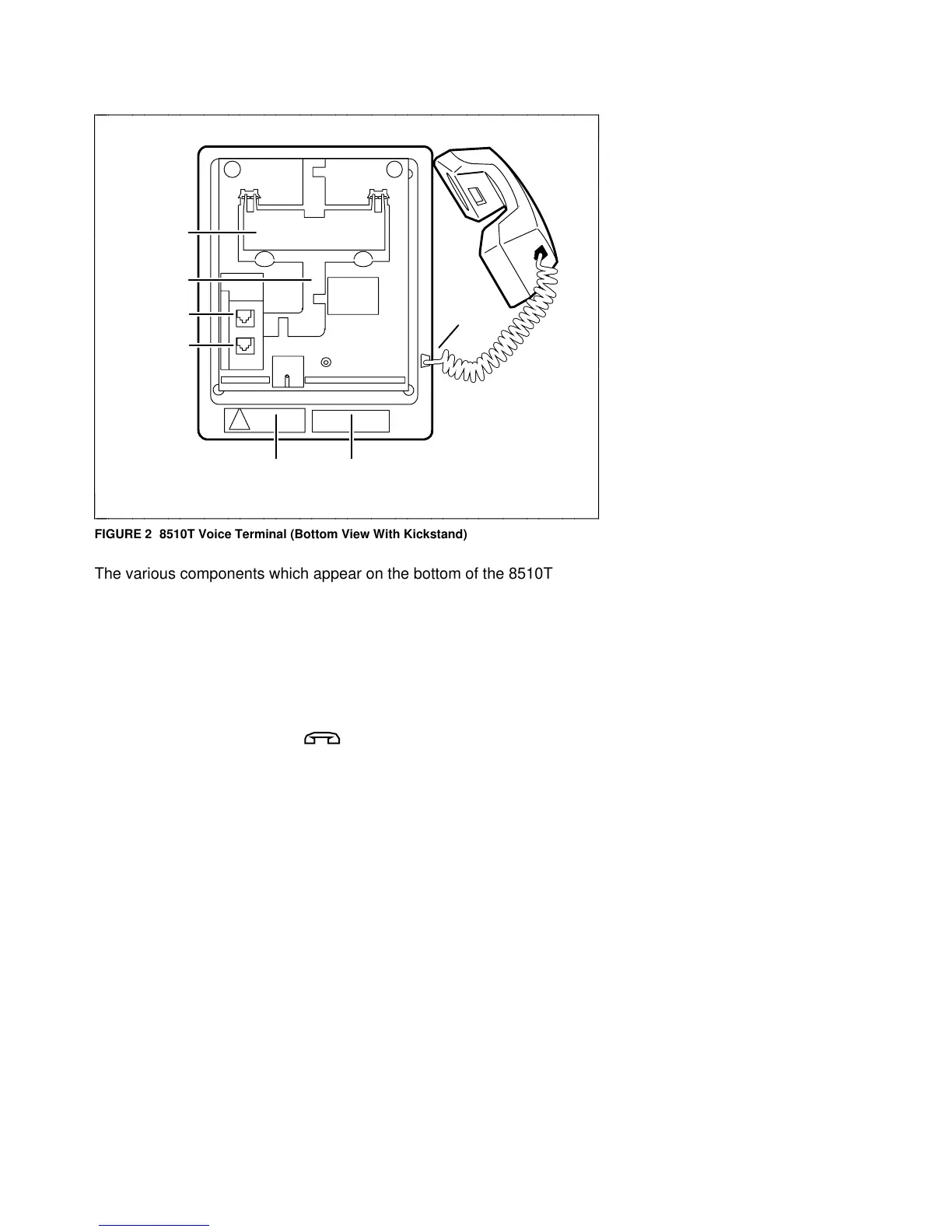

FIGURE 2 8510T Voice Terminal (Bottom View With Kickstand)
The various components which appear on the bottom of the 8510T voice
terminal are shown in Figure 2 and listed and explained below.
Adjunct jack Used for connecting an external speakerphone, a headset
adaptor, or other adjunct equipment. The jack is labeled "ADJUNCT."
WARNING: Do not insert the handset cord into the "ADJUNCT" jack. It
will cause equipment damage.
Handset jack Used for connecting the handset cord to your voice
terminal. The jack is labeled .
Kickstand Can be lifted from the desktop stand or can be left level with
the bottom of the voice terminal. Check which kickstand adjustment
allows you the best viewing angle of the display.
Line jack Used for connecting the line cord to your voice terminal. The
jack is labeled "LINE."
Routing channel Thread the line cord (and adjunct cord, if applicable)
through the routing channel. See the section titled Installation.
6
