WARNING: Correct cord types must be used when connecting
terminals and associated components. Failure to use the correct
cord and/or to properly insert the cord into the jack may cause voice
terminal malfunction or equipment damage.
5 Thread the line (and adjunct cord if applicable) through the routing
channel leading to the top of the voice terminal desktop stand, as
shown in Figure 5. Make sure that each cord is placed securely
under the 4 square tabs in the routing channel.
NOTE: If you connect both the line cord and the adjunct cord, it may
be easier if the adjunct cord is on the inside, on the right of the line
cord, in the routing channel. The line cord is, therefore, on the
outside, on the left of the adjunct cord.
6 Snap one end of the coiled cord into the Handset jack (labeled with
the handset symbol) on the bottom of the voice terminal, as shown in
Figure 5.
WARNING: Do not insert the handset cord into the "ADJUNCT" jack.
It will cause equipment damage.
Kickstand
Routing
channel for
line cord
and adjunct
cord
Line jack
Adjunct jack
Handset
jack
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
cbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

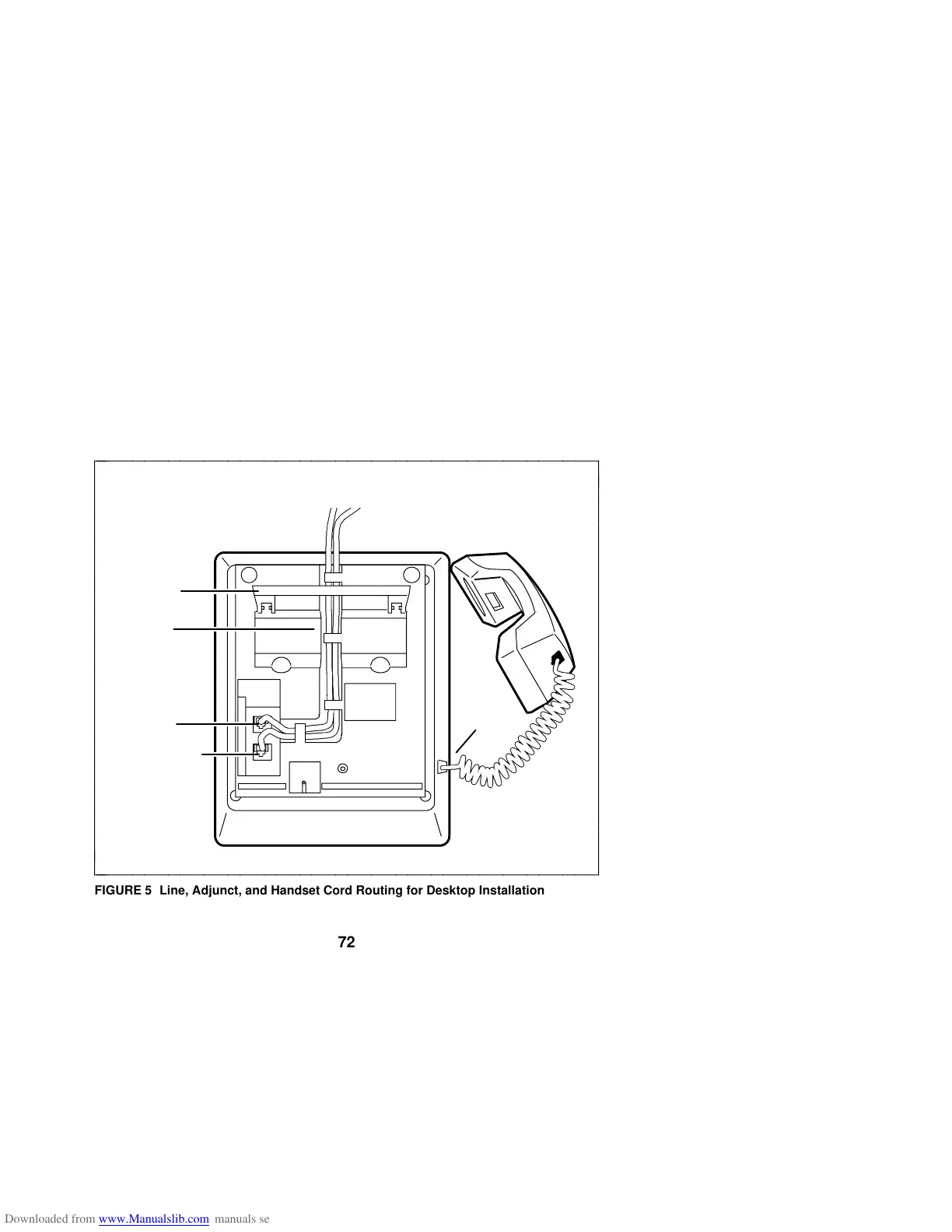

FIGURE 5 Line, Adjunct, and Handset Cord Routing for Desktop Installation
72
