Beta Draft Confidential
Cables and Pinout Assignments
RS-232 Shielded Straight-through Modem Cable
CBX 500 Multiservice WAN Switch Hardware Installation Guide 4/5/03B-5

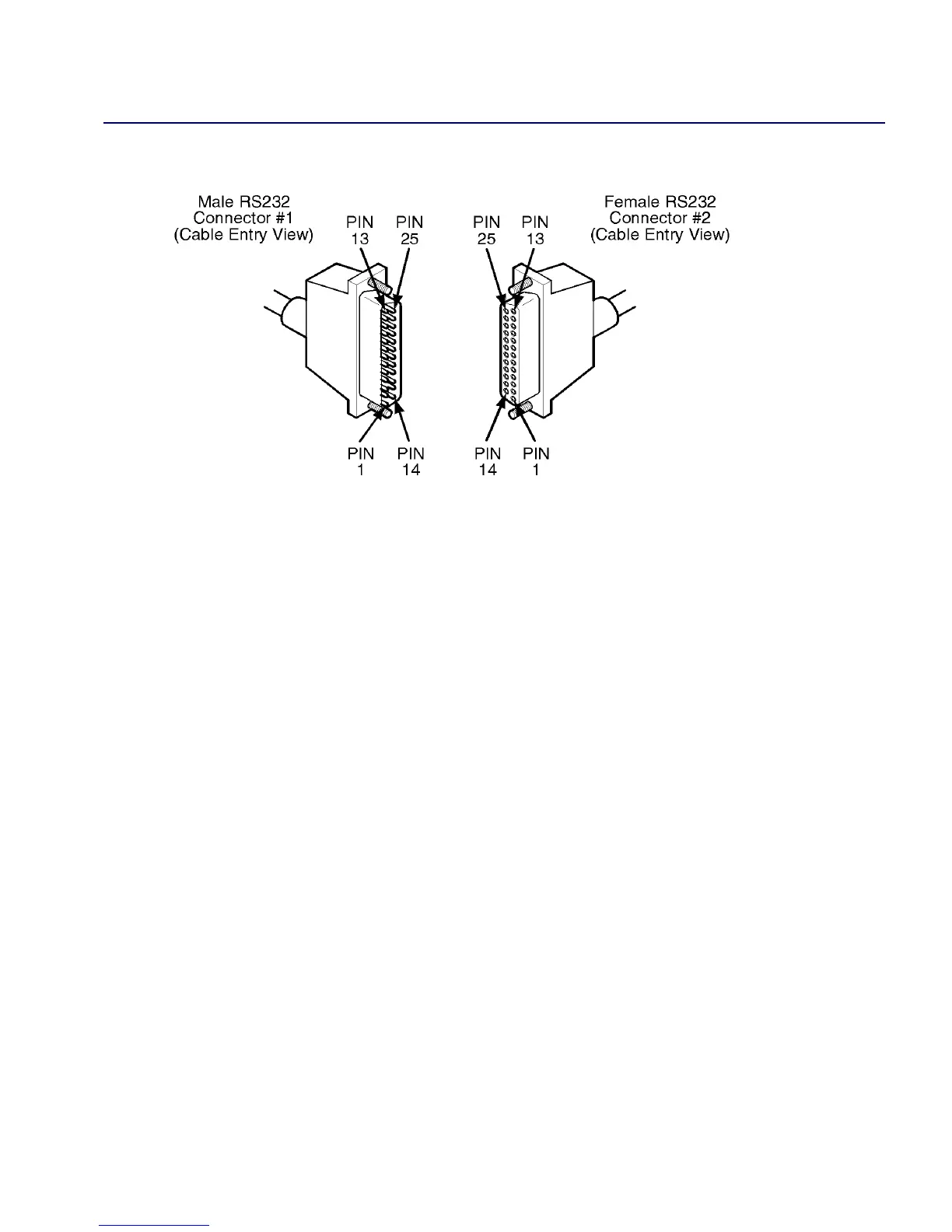

Figure B-2. RS-232 Shielded Straight-through Modem Cable
