Status Indicators
All modules have Redundancy LEDs on the bottom of the module to indicate the
redundancy status of the module. The Redundancy LEDs are ON when a module is
the active (that is, online) member of a redundant pair. The Redundancy LEDs blink
when a module is the redundant (that is, standby) member of a redundant pair.

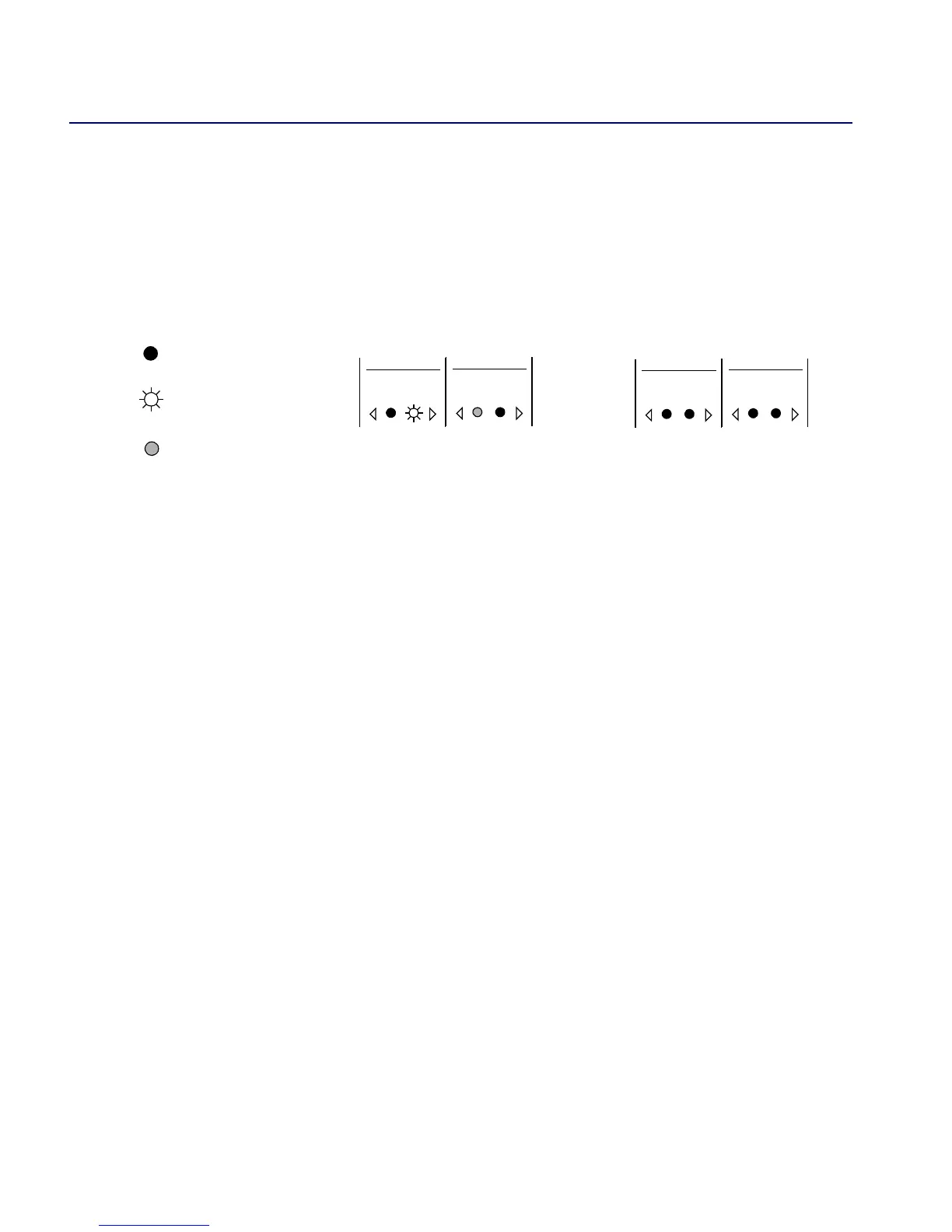

Figure D-3. Redundancy Status LEDs
Redundancy
Status
Redundancy
Status
=Off
=On
= Blinking
Redundant Pair of Modules
Active
Module
Standby
Module
Redundancy
Status
Redundancy
Status
Non-Redundant Pair of Modules
