Installing the PortMaster 2-5
Install a Rack Mount (Optional)
Rack Ears Rack-Mounting Kit
Follow these instructions to attach the PortMaster to a rack with the rack ears
rack-mounting kit.
Required Equipment
❏ Two angle brackets (included)
❏ Eight 12-24 screws (included)
❏ Flathead screwdriver
❏ Number 1 Phillips screwdriver
❏ Rack with universal Electronic Industries Association (E.I.A.) spacing
Procedure
1. Remove the plastic plugs from the mounting holes in the chassis by inserting a
flathead screwdriver under the plug edge and prying the plug loose.

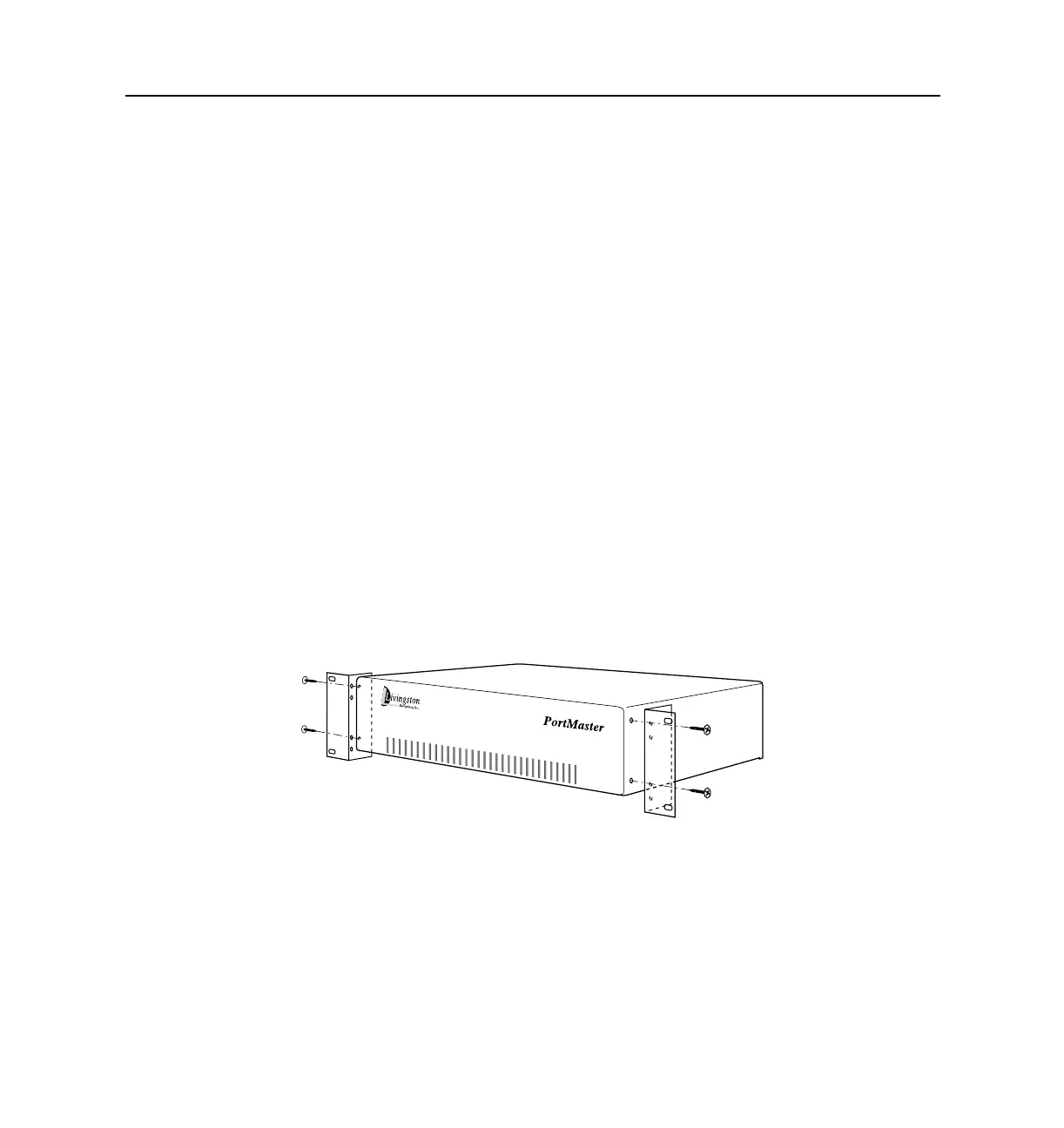

2. Mount the angle brackets to the sides of the PortMaster using four 12-24 screws,
so that the top edge of the angle bracket is aligned with the top of the
PortMaster.
3. Attach the PortMaster to a rack using four 12-24 screws, so that the front of the
PortMaster is flush with the front of the rack.
1189-0028
1189-0028
