Lucent Technologies PortMaster PM-2 - Ethernet 10 Base5

Connect an Ethernet Cable
2-12 Communications Server Hardware Installation Guide
Ethernet 10Base5
Follow these instructions to connect an Ethernet cable to the Ethernet 10Base5
(AUI) port.
Required Equipment
❏ An RG-11 50-ohm coaxial cable with a DB-15 female connector
This cable is available from most computer equipment suppliers.
Procedure

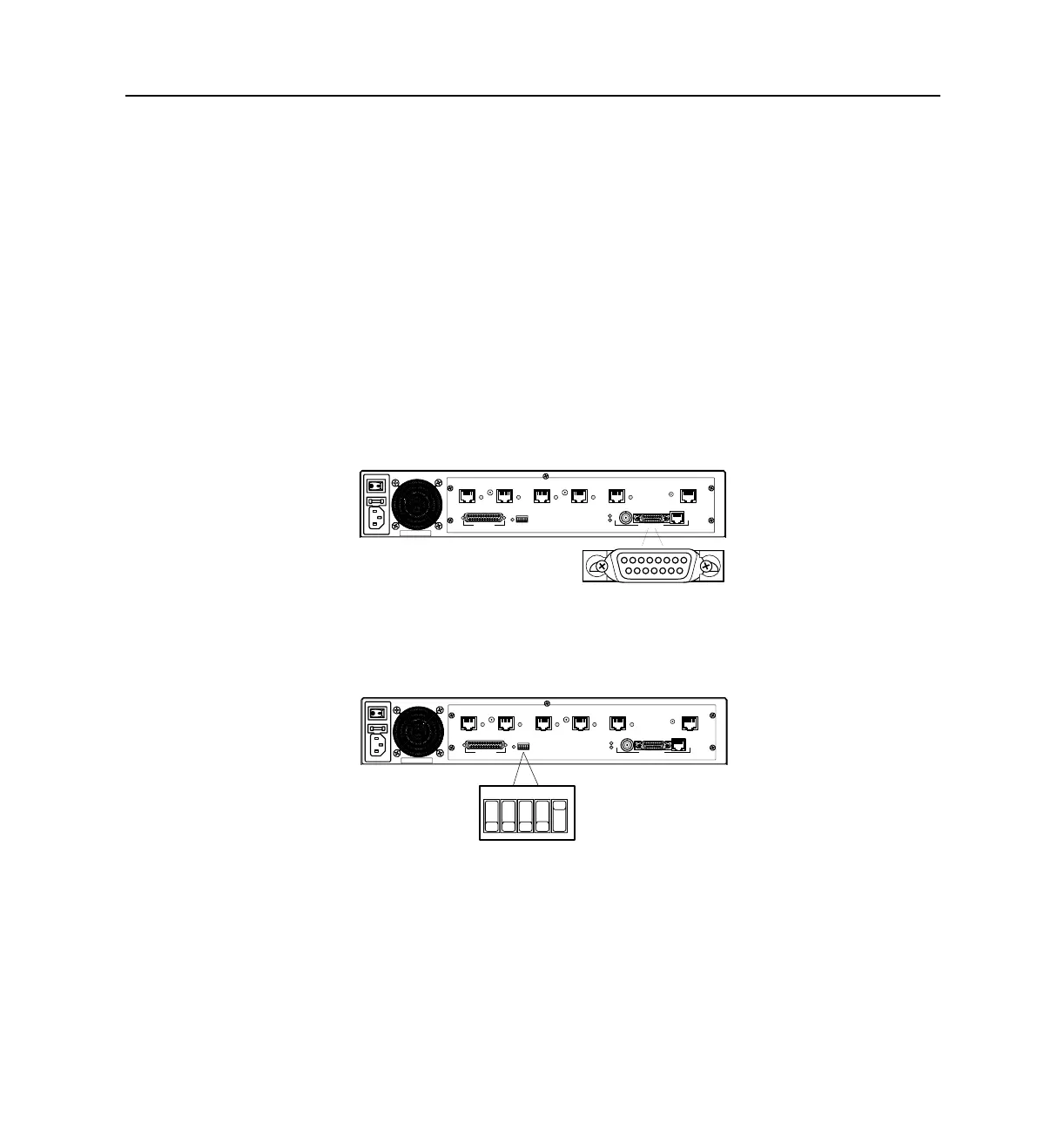

1. Connect the cable to the Ethernet AUI port (PM-2i shown).
2. Set DIP switch 4 down and DIP switch 5 up (PM-2i shown).
ETHERNET
ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U
S0-S1 S2-S3 S4-S5 S6-S7 S8-S9 HD
C0 - DIAG
1187_0007
1189-0007
ETHERNET
ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U
S0-S1 S2-S3 S4-S5 S6-S7 S8-S9 HD
C0 - DIAG
12345
1189-0010
