Connect an Ethernet Cable
7. Connect an Ethernet Cable
The following Ethernet cables can be connected to the PortMaster. (See “Ethernet
Interface” on page B-5 for specifications.)
• Ethernet 10BaseT
• Ethernet 10Base5 (AUI)
• Ethernet 10Base2 (BNC)
Ethernet 10BaseT
Follow these instructions to connect an Ethernet cable to the Ethernet 10BaseT port.
Required Equipment
❏ A category 5 twisted pair cable, as specified by the EIA/TIA-568-B wiring
standard, with an RJ-48C connector
This cable is available from most computer equipment suppliers.
Procedure

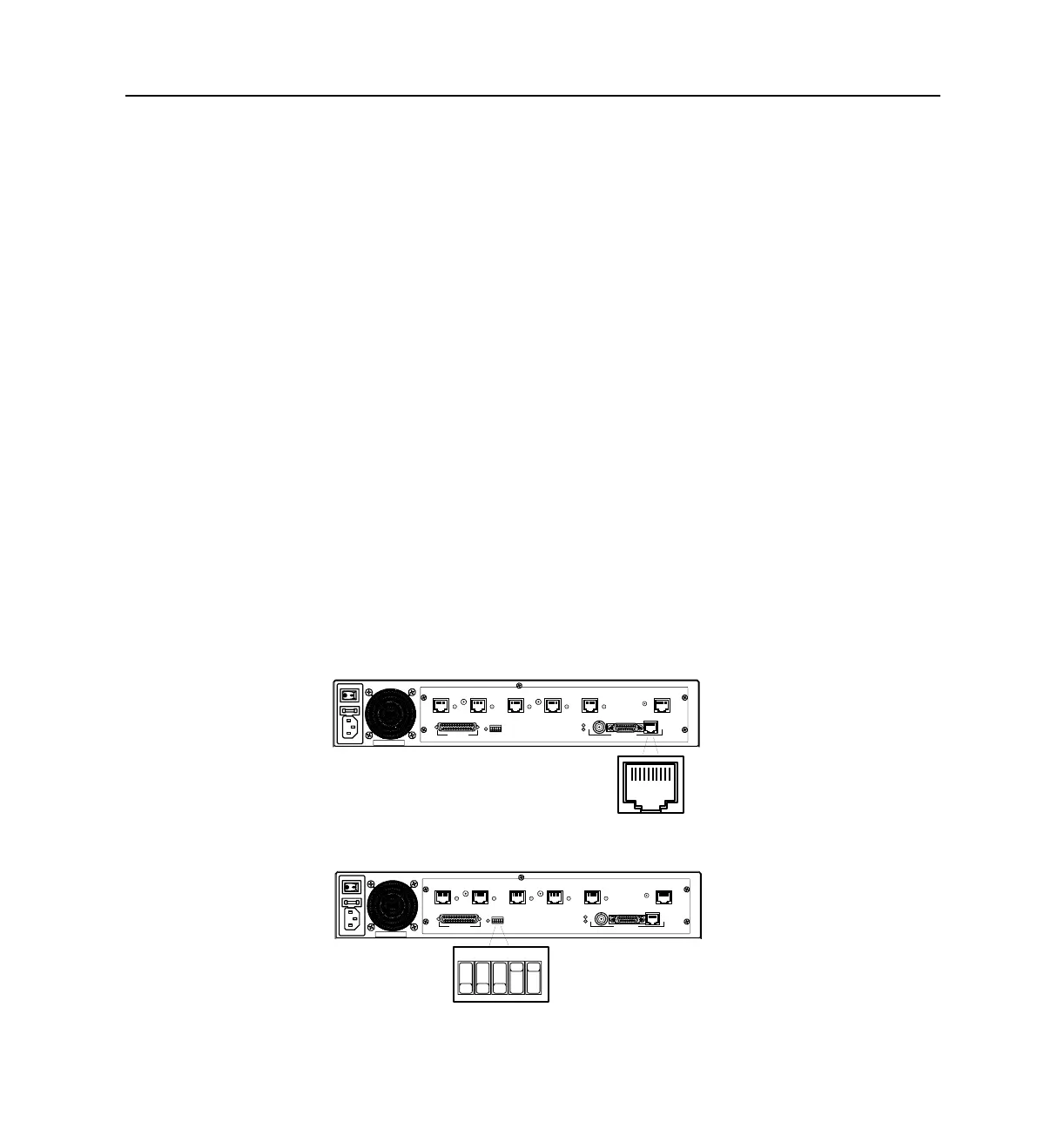

1. Connect the cable to the Ethernet 10BaseT port (PM-2i shown).
2. Set DIP switches 4 and 5 up (PM-2i shown).
