Installing the PortMaster 2-15
Turn On Power
– S/T interface. The BRI status LED flashes once at startup and then stays solidly
lit for an active link (PM-2i shown).
4. If you are using a 10Base2 (BNC) Ethernet connection, verify the following:
– Link LED. Flashes once at startup
– Network LED. Flashes when Ethernet traffic is present
5. If you are using a 10Base5 (AUI) Ethernet connection, verify the following:
– Link LED. Flashes once at startup
– Network LED. Flashes when Ethernet traffic is present
6. If you are using a 10BaseT Ethernet connection, verify the following:
– Link LED. Flashes twice at startup
– Network LED. Flashes when Ethernet traffic is present

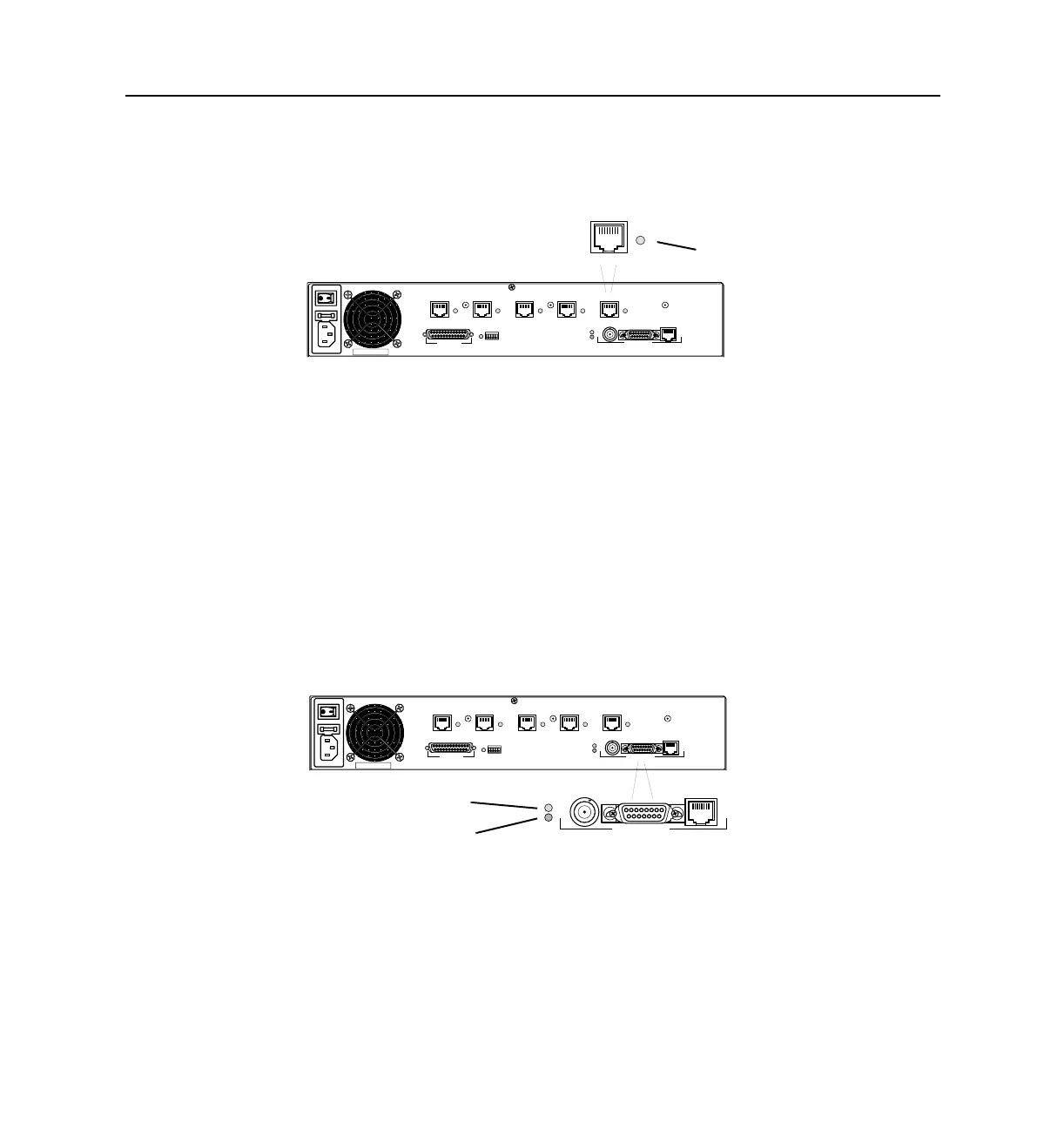

ETHERNET
C0 - DIAG
ISDN/ST ISDN/ST ISDN/ST ISDN/ST ISDN/ST
S0-S1 S2-S3 S4-S5 S6-S7 S8-S9
ISDN/ST
S8-S9
BRI Status LED
1189-0015
ETHERNET
C0 - DIAG
ISDN/ST ISDN/ST ISDN/ST ISDN/ST ISDN/ST
S0-S1 S2-S3 S4-S5 S6-S7 S8-S9
1187_0016
ETHERNET
link LED
network LED
1189-0016
