Replacing a Fuse
A-8 Communications Server Hardware Installation Guide

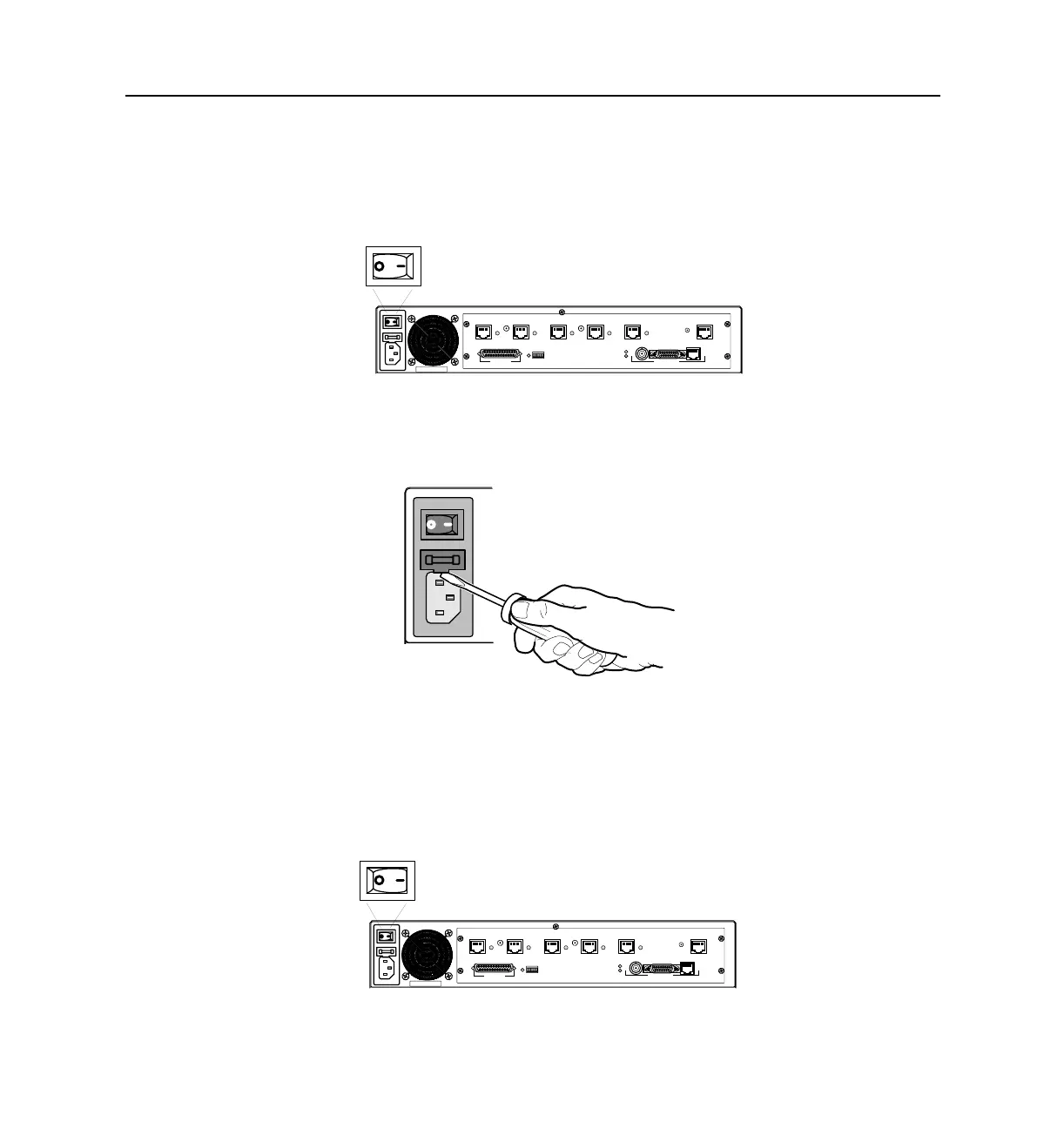

Procedure
1. Turn the power switch off and disconnect the PortMaster from the power source
(PM-2i shown).
2. Detach the power cord from the PortMaster.
3. Insert a 5/32-inch flathead screwdriver between the fuse door and the chassis,
and gently pull the fuse door open.
4. If the white outer coating of the fuse is discolored (burned), replace the fuse.
The fuse can be inserted from either end.
5. Press the fuse door shut until it clicks.
6. Reconnect the power cord to the PortMaster.
7. Turn the power switch on (PM-2i shown).
ETHERNET
ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U
S0-S1 S2-S3 S4-S5 S6-S7 S8-S9 HD
C0 - DIAG
1189-0025
1189-0023
ETHERNET
ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U ISDN/U
S0-S1 S2-S3 S4-S5 S6-S7 S8-S9 HD
C0 - DIAG
1189-0038
To Next Page
