LK-T21 Technical Manual

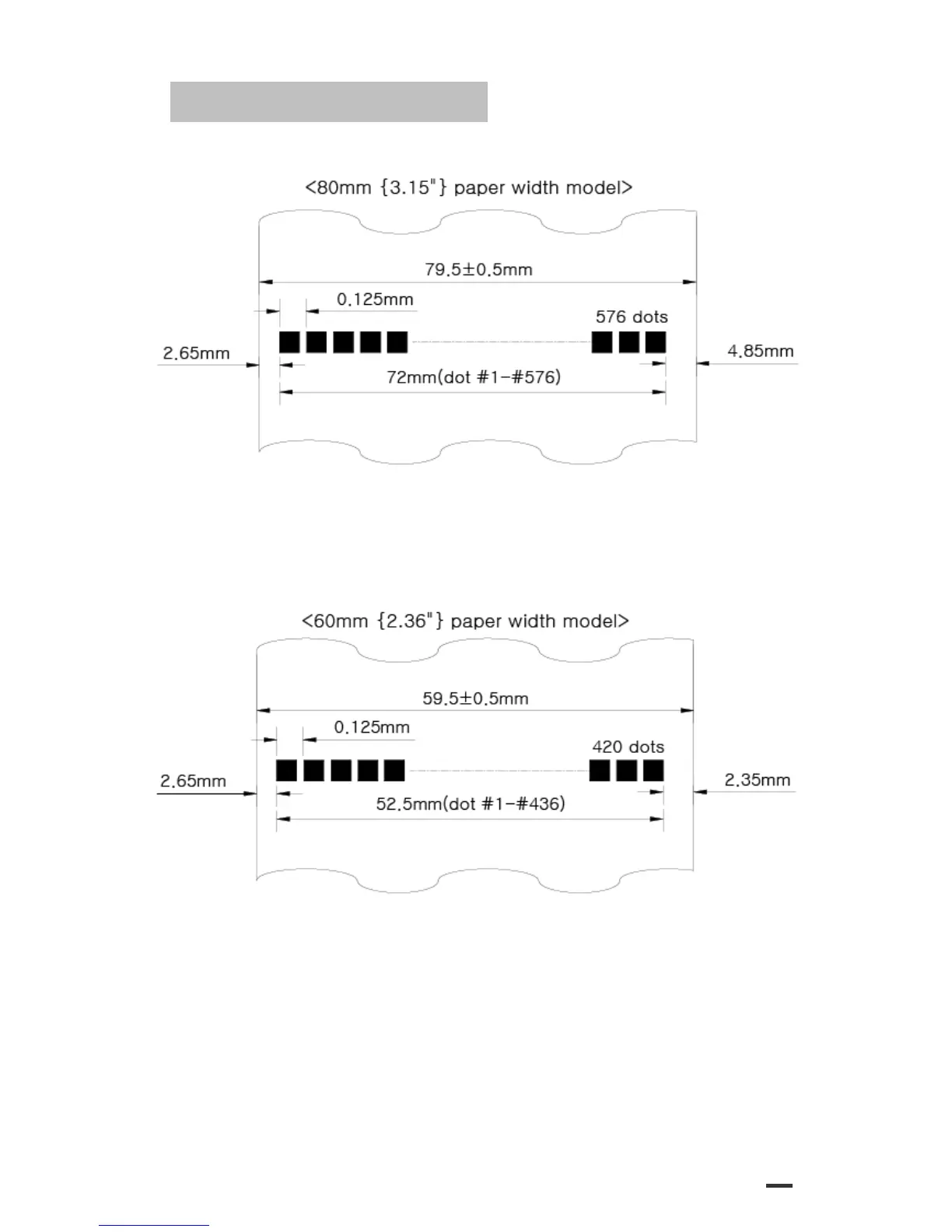

Figure 1.6.3 Printable Area for STAR Emulation (When the Paper Width Is Changed)
NOTE : The numeric values used here are center values to be used in designing. The printable area may be out of
alignment by 2 mm maximum to the left or right, due to the paper position or tolerance of parts.
9
