LXNAV PowerMouse - Installation Examples; Powermouse;Powermouse+ - Flarmview

Rev #35 March 2024
Page 19 of 43
Bluetooth Antenna is not available on the PowerMouse FCC and PowerMouse+
FCC.

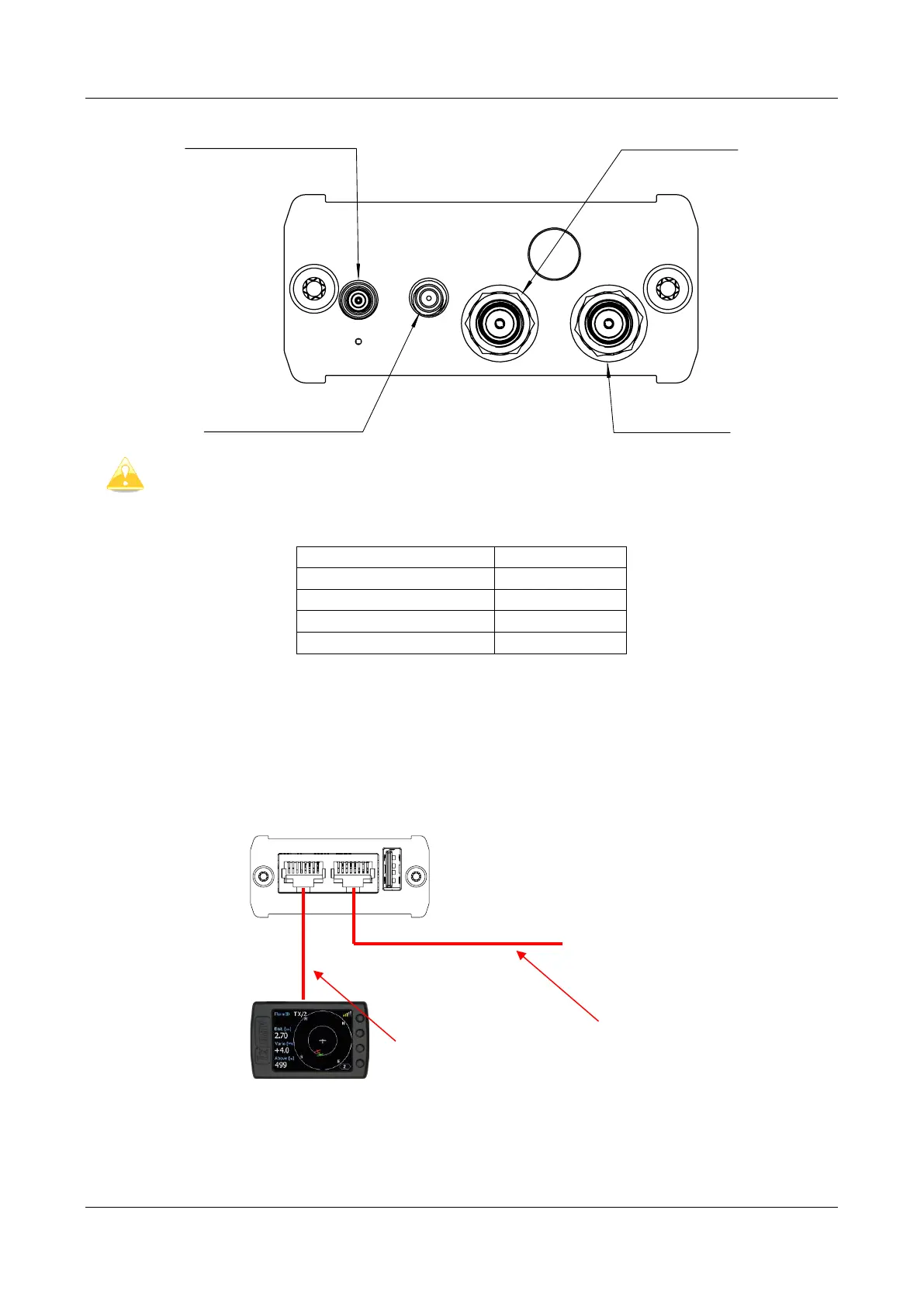

Connector description
Connector type
Bluetooth Antenna port
MCX
GPS Antenna port
SMC
PowerFLARM Port A
SMA
PowerFLARM Port B
SMA
In the line with ADSB antenna connector is red LED, which blinks, when ADSB traffic is present.
Below BT antenna connector is blue LED, which indicates BT activity.
6.4.3 Installation examples
6.4.3.1 PowerMouse/PowerMouse+ – FlarmView
PowerFLARM
Port A
PowerFLARM
Port B
GPS Antenna port
Bluetooth Antenna
port
FlarmView
FlarmView
cable
PF POWER
12VDC cable
