21
ENGLISH
Oil pilot lamp
2-tec models: This pilot lamp will glow up when injection oil level is low. Stop
vehicle in a safe place then, replenish injection oil reservoir.
4-tec models: This pilot lamp will glow up when engine oil pressure is too low.
Stop vehicle in a safe place then, check oil level and replenish as described in
FLUID LEVEL.
Restart engine, oil pilot lamp must turn off after few seconds. If oil pilot lamp still
glows up, stop engine and have lubrication system inspected by an authorized
Lynx dealer.
Low battery voltage pilot lamp
This lamp will light up to indicate a low battery voltage condition. See an authori-
zed Lynx dealer as soon as possible.
Engine Management System (EMS) pilot lamp
This lamp will light up to indicate a trouble. Refer to TROUBLESHOOTING for
trouble code meaning and remedy.
15. Rewind starter handle
Auto-rewind type located on right hand side of snowmobile. Pull handle slowly
until a resistance is felt then pull vigorously. Slowly release handle.

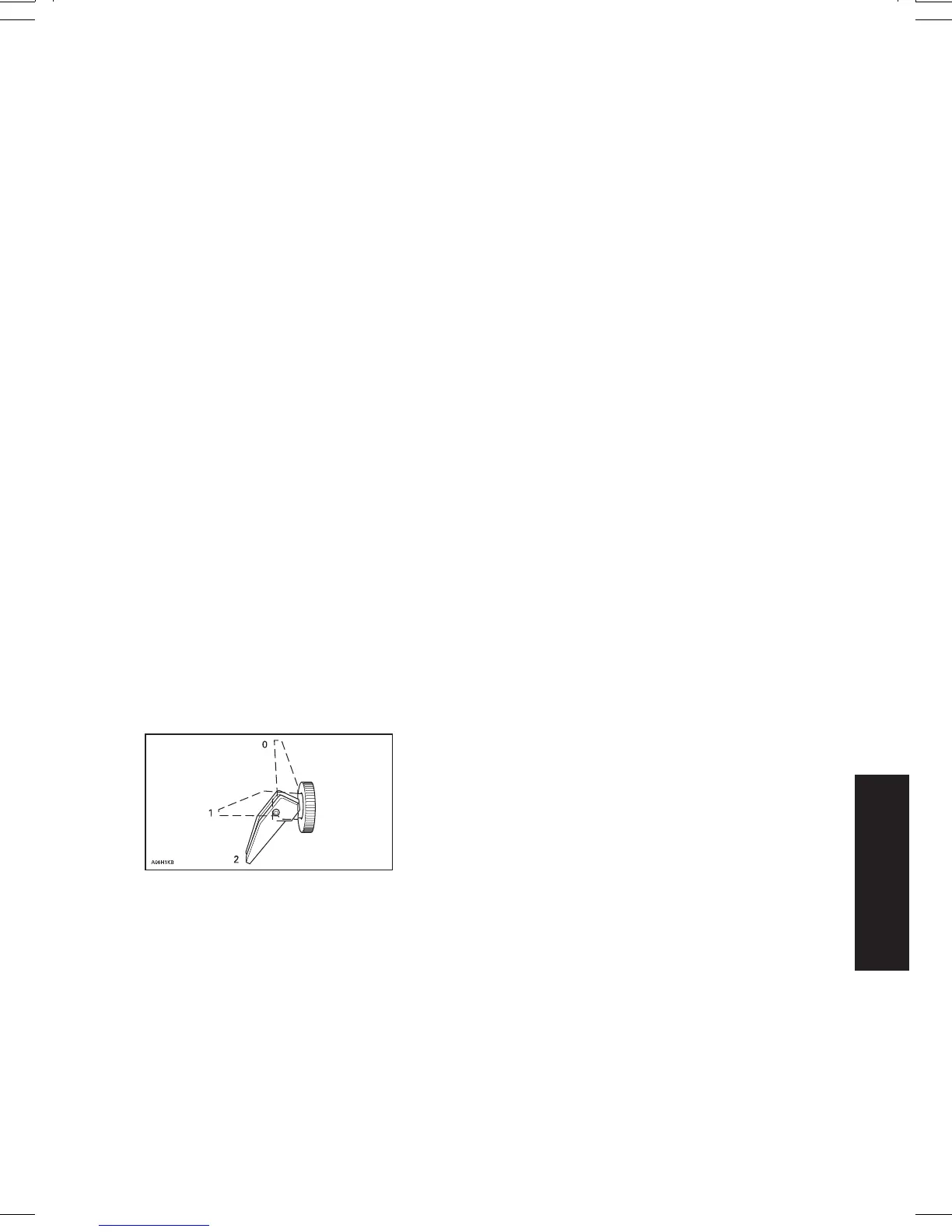

16. Choke lever
0. OFF
1. Position 1
2. Position 2
Initial Cold Starting
NOTE:Do not operate the throttle lever with the choke lever on.
Move the choke lever to position 2 and start the engine. As soon as the engine
starts move the lever to position 1. After a few seconds (10 seconds maximum)
move the choke lever to position OFF.
NOTE:In severe cold weather, colder than -20°C you may need to flip choke
lever from OFF position to position 1 a couple of times once engine is started.
