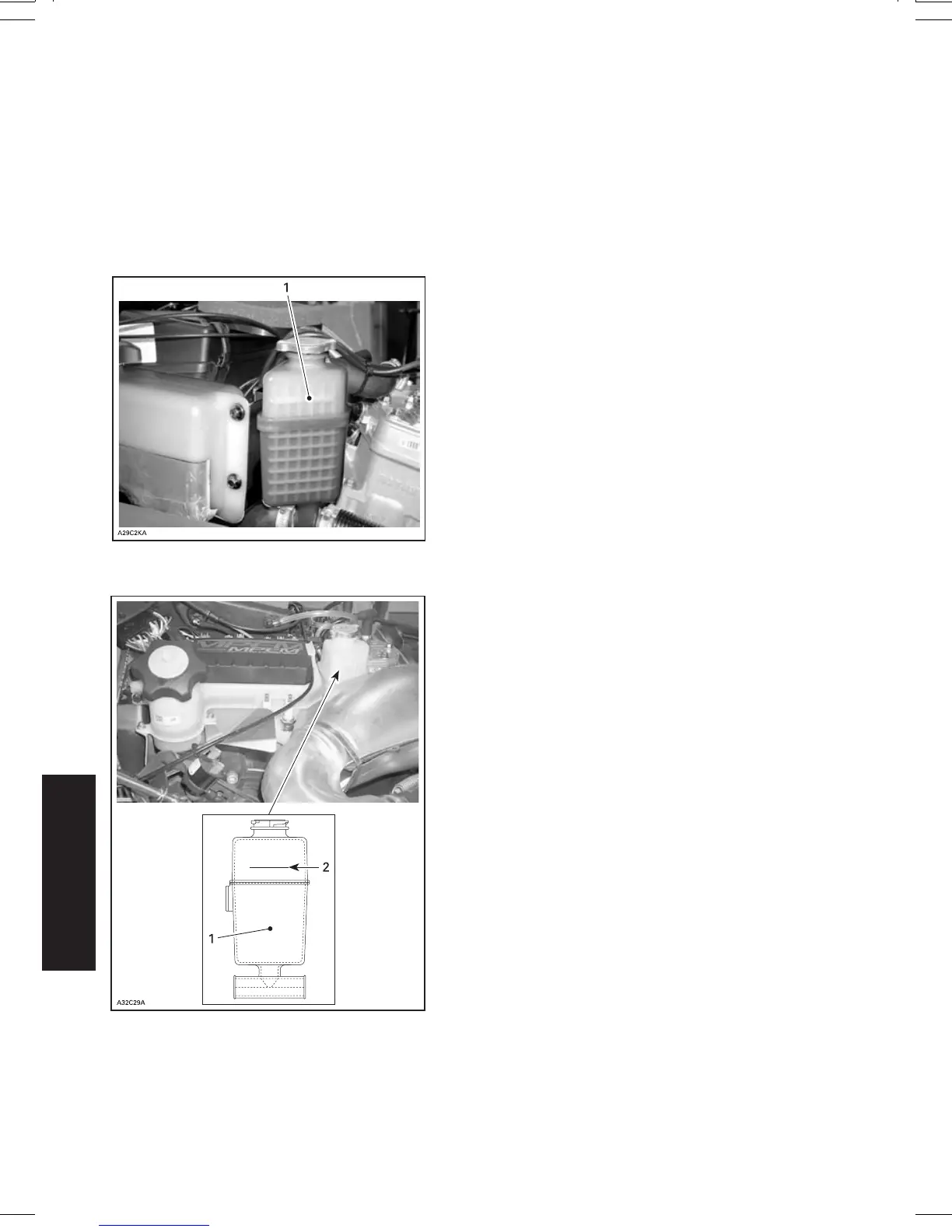

50
ENGLISH
Cooling
system
Check
coolant
level
at
room
temperature.
Liquid
should
be
at
COLD
LEVEL
line
(engine
cold)
of
coolant
tank.
NOTE:
When
checking
level
at
low
temperature
it
may
be
slightly
lower
than
mark.
If
additional
coolant
is
necessary
or
if
entire
system
has
to
be
refilled,
refer
to
an
authorized
Lynx
dealer
.
1.
COLD
LEVEL
line
1.
Coolant
tank
2
.
COLD
LEVEL
line
50
52
Table of Contents
