CAUTION:Do not force or use tools to pry the belt into place, as this could cut or
break the cords in the belt.
Clean sheaves of both pulleys using BOMBARDIER Parts Cleaner (P/N 413 711
809).
To install the drive belt, first place belt between drive pulley sheaves. Then, bet-
ween driven pulley sheaves, finishing with bottom.
Follow instructions on belt guard.
Reinstall belt guard.
Drive chain tension
Chain case models: Remove hair pin.
Fully tighten tensioner adjustment screw by hand, then back off only far enough
for hair pin to engage in locking hole.

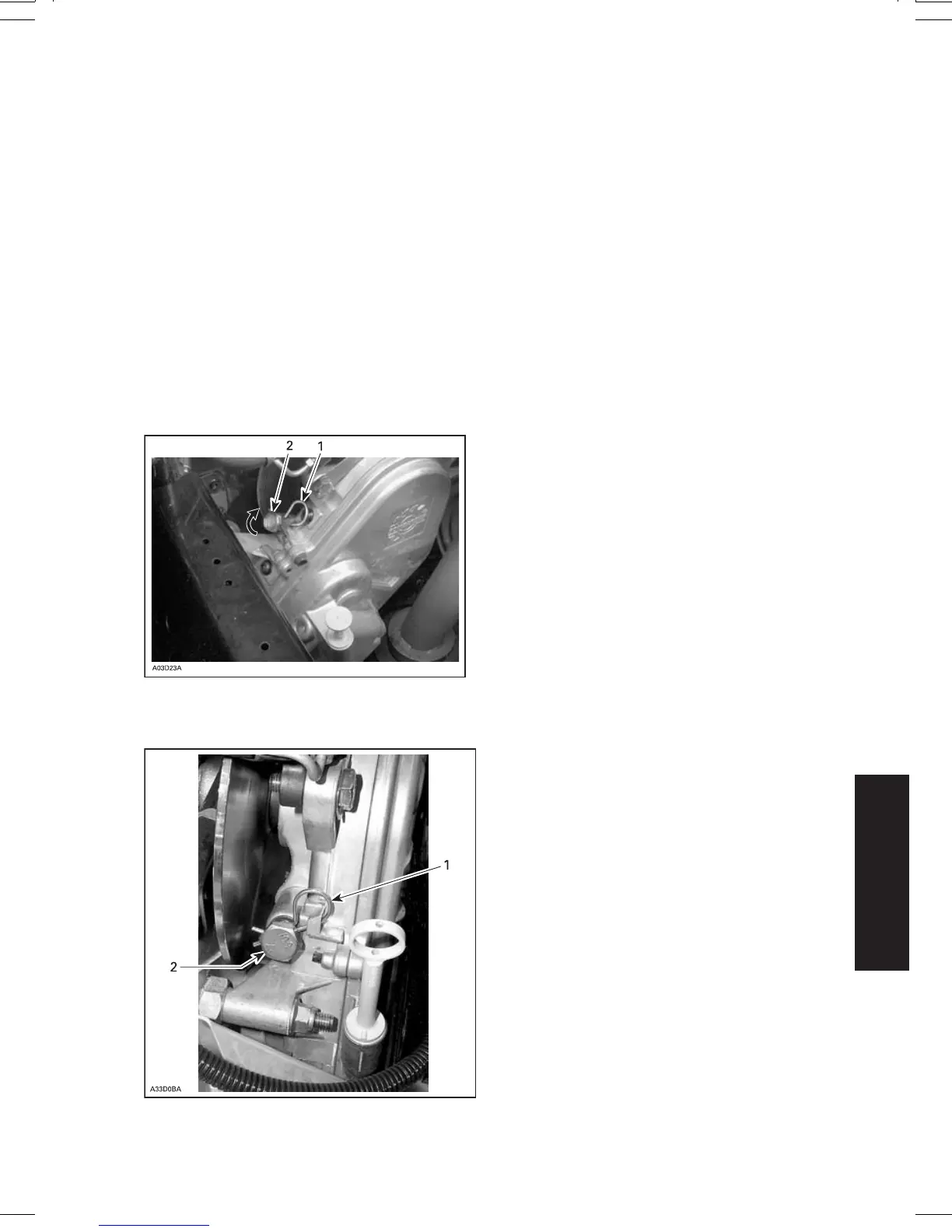

1. Hair pin
2. Adjustment screw
1. Hair pin
2. Adjustment screw
