Lynx Forest Fox User Manual
4
of 1
of 1 rating
73 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

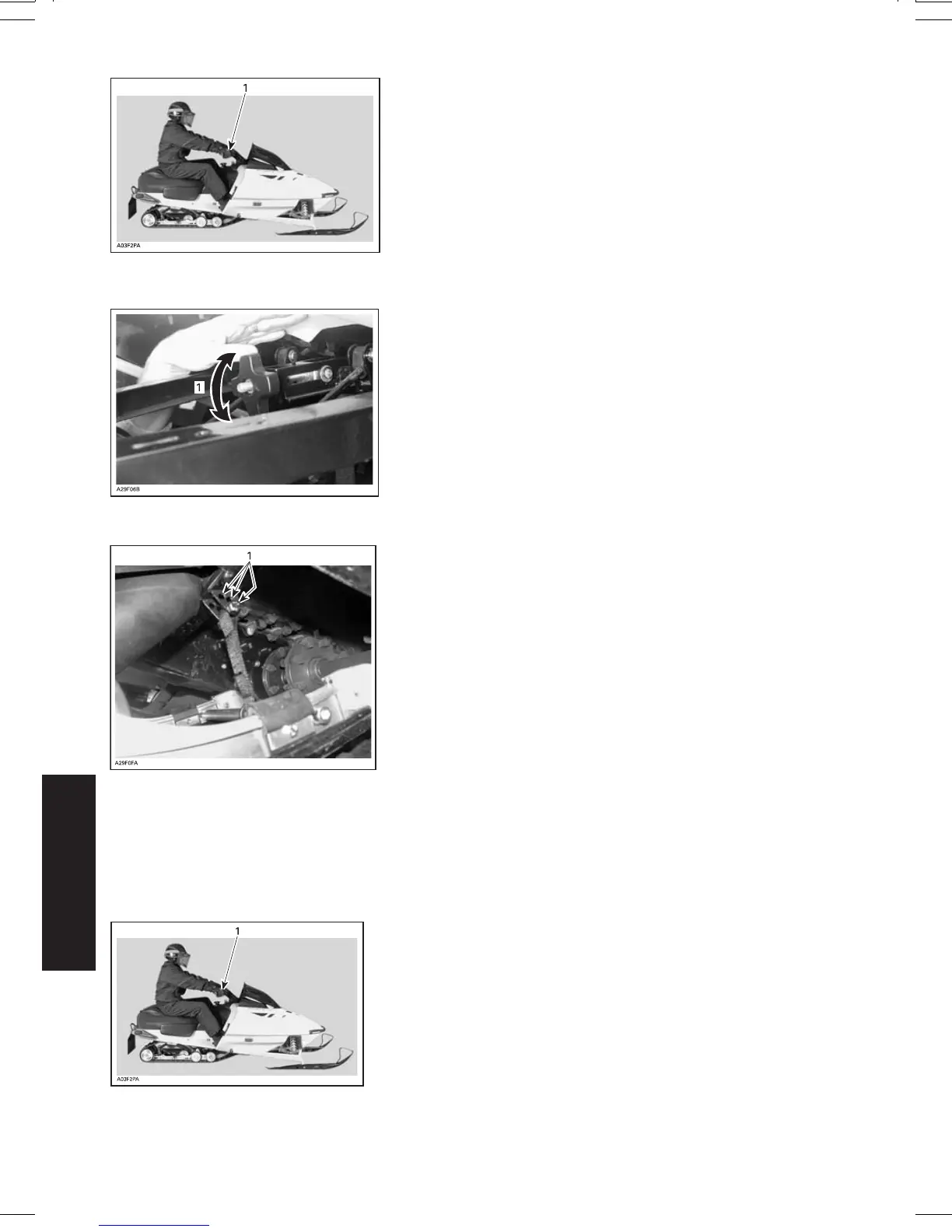

34
ENGLISH
T
oo
short
strap
1.
Heavy
steering
1.
Screw
or
unscrew
knob
to
vary
strap
length
1.
Bolt
stopper
strap
to
a
different
hole
6.
Front
Springs
Handle
Ride
at
moderate
speed
and
check
for
proper
handling.
Adjust
front
springs
ac-
cordingly
.
Proper
adjustment
1.
Good
handling
and
comfortable
steering
34
36
Table of Contents
Default Chapter
3
Table of Contents
3
Content
6
Safety Measures
6
Warranty
7
How to Identify Your Snowmobile
10
Serial Numbers
10
Controls / Instruments
11
Fuel Indicator
13
Throttle Lever
14
Brake Lever
14
Parking Brake Lever
14
Brake/Parking Brake/Low Oil Level Pilot Lamp (Red)
15
Gear Shift Lever or RER Button
15
Reverse Indicator Lamp
17
Handlebar
17
Holding Strap
17
Ignition Switch/Start/Rer Button
17
Tether Cut-Out Switch
19
DESS Pilot Lamp
20
Emergency Cut-Out Switch
20
Headlamp Dimmer Switch
21
High Beam Pilot Lamp (Blue)
21
Rewind Starter Handle
22
Choke Lever
22
Primer
23
Speedometer
23
Odometer
23
Trip Meter
23
Trip Meter Reset Button/Mode Button
23
Fuel Tank Cap/Gauge
25
Engine Overheating Warning Lamp (Red)
26
Heated Grip and Throttle Lever Switch
26
Heated Throttle Lever Switch
26
Hood Latches
26
Electric Power Outlet
27
Fuse
27
Front Bumper
28
Storage Compartment
29
Rear Rack
29
Tool Kit
29
Spark Plug Holder
29
Seat Strap
30
Hitch
30
Adjustable Suspension
30
Guidelines to Adjust Suspension
31
In Deep Snow
37
Fuel and Oil
37
Recommended Fuel
37
Recommended Oil
38
Cold Weather Carburetion Modifications
38
Break-In Period
39
Engine
39
Drive Belt
39
Hour Inspection
39
Pre-Opearation Check
39
Check List
39
Operation Instructions
40
Operations
40
Starting the Engine
40
Manual Starting
42
Shutting off the Engine
45
Vehicle Warm up
45
Post-Operation Care
45
Special Operations
46
Engine Overheating
46
Fuel Flooded Engine
46
Rear Suspension Slider Shoe Sticking
46
Fluid Levels
47
Brake System
47
Chain Case Oil Level/Gearbox Oil Level
48
Oil Injection System
50
Cooling System
51
Battery
53
Maintenance
53
Vehicle Cleaning and Protection
53
Belt Guard Removal and Installation
54
Drive Belt Removal and Installation
54
Drive Chain Tension
58
TRA Drive Pulley Adjustment
59
Drive Belt Condition
60
Brake Condition
60
Brake Adjustment
61
Rear Suspension Condition
61
Suspension Stopper Strap Condition
61
Track Condition
61
Track Tension and Alignment
61
Steering and Front Suspension Mechanism
63
Wear and Condition of Skis and Runners
63
Exhaust System
63
Air Filter Cleaning
63
Headlight
65
Storage and Preseason Preparation
67
Storage
67
Preseason Preparation
67
Troubleshooting
68
Tech Data
71
Service Scedule
73
4
Based on 1 rating
Ask a question
