63
ENGLISH

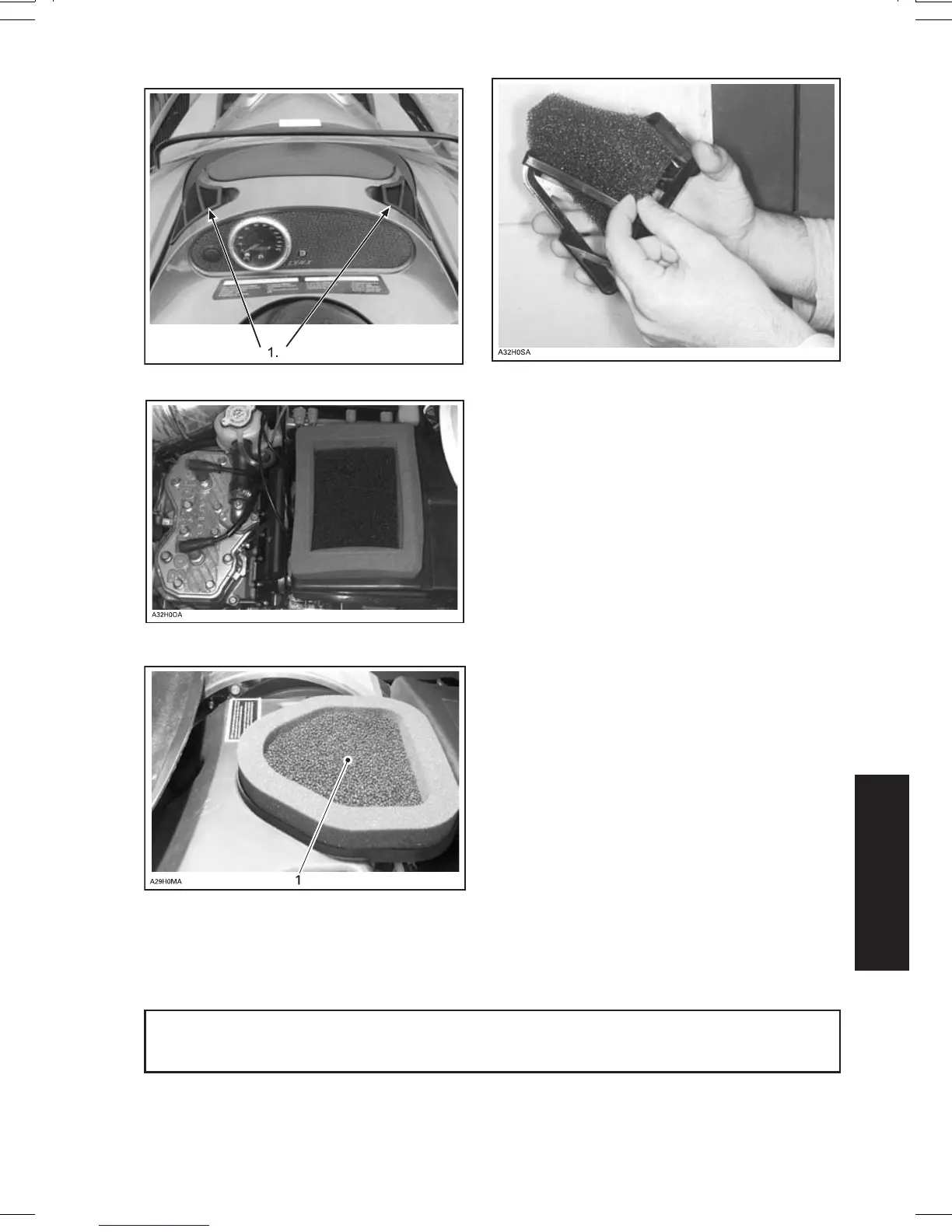

1. Air
filter
Removal
of
filter
from
its
grill
Secondary
filter
installed
on
air
silencer
1
.
Air
filter
installed
on
top
of
air
silencer
Check
that
the
air
silencer
is
clean
and
dry
and
properly
reinst
all
the
filter
.
CAUTION:
Snowmobile
have
been
calibrated
with
the
filter
installed.
Opera-
ting
the
snowmobile
without
it
may
cause
engine
damage.
