65
ENGLISH

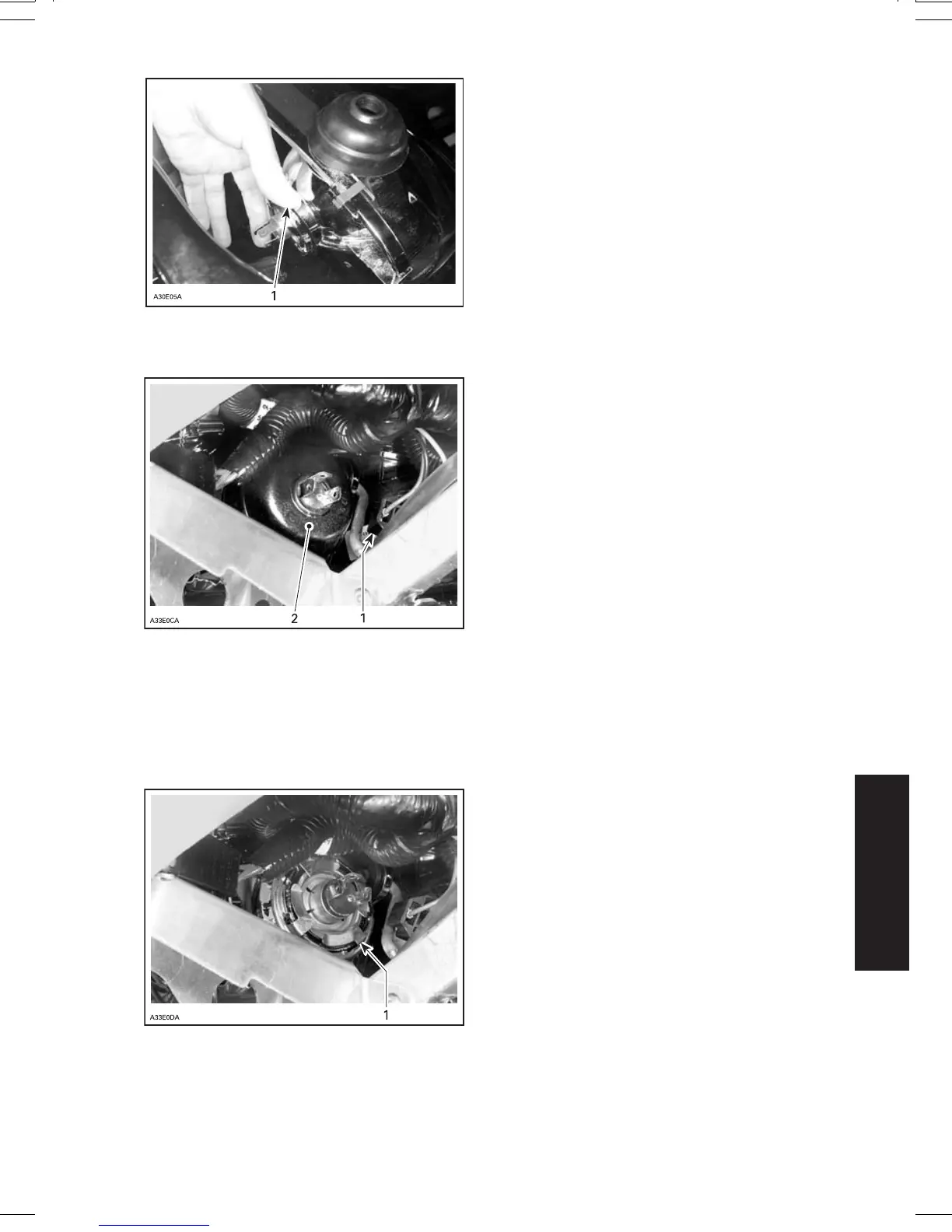

1.
Locking
ring
Unplug
burnt
bulb
connector
.
Remove
the
rubber
boot.
1.
Bulb
connector
2.
Rubber
boot
Turn
bulb
locking
ring
counter
clockwise
to
remove it.
Detach
the
bulb
and
repla-
ce.
Properly
reinstall
parts.
1.
Locking
ring
If
taillight
bulb
is
burnt,
expose
the
bulb
by
removing
the
red
plastic
lens.
T
o
remove,
unscrew
the
2
lens
screws.
65
67
