electric modular oven
PAG. 10 CAP. 2 MD
Casing Assembly

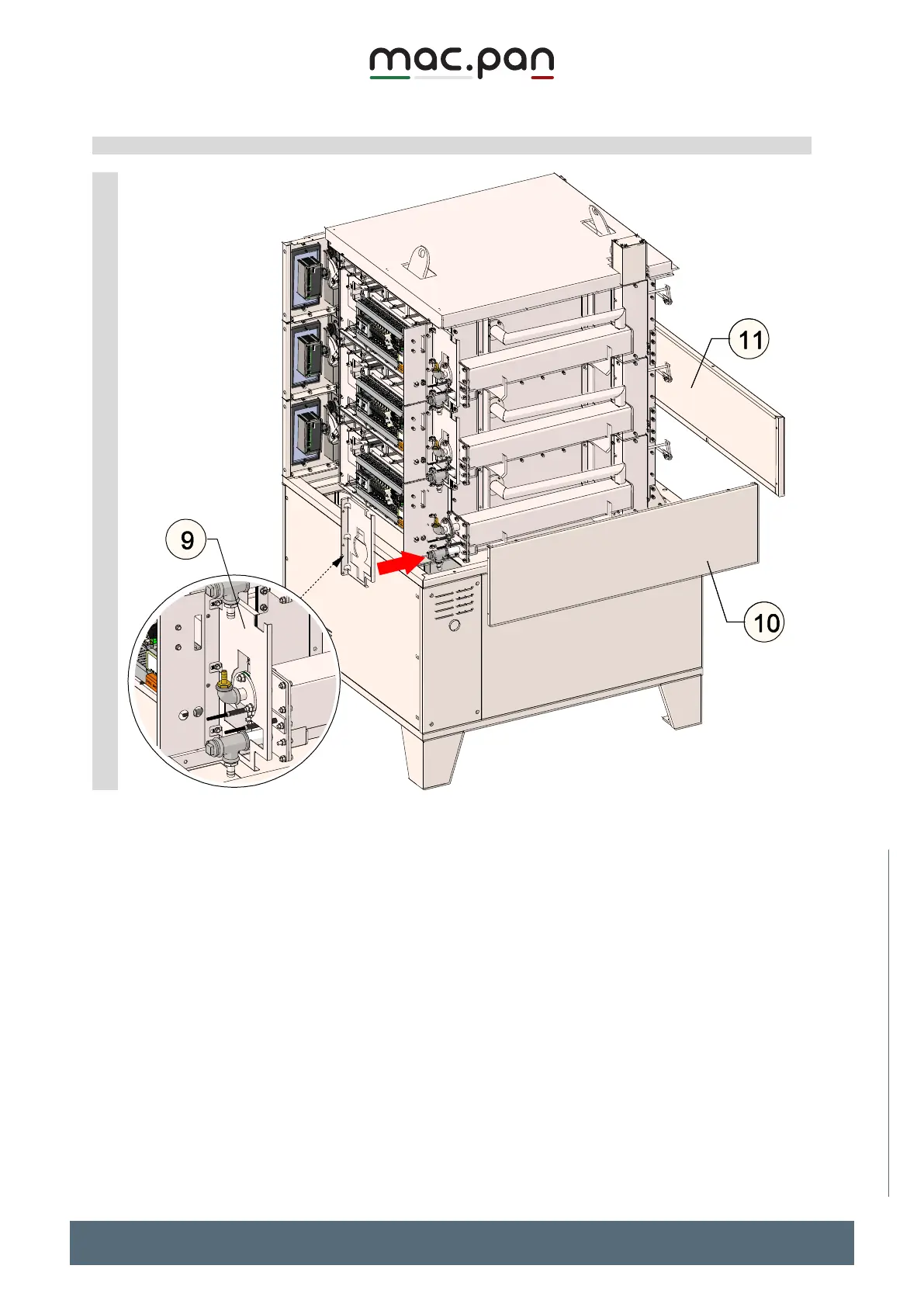

FIG.7
Install the insulating containment panel of the humidifier (Pos.9), inserting the thermoinsulating
material between the panel and the humidifier
Install the rear (Pos.10) and lateral cover panels (Pos.11) inserting the thermoinsulating material
between the panel and the oven side.
This is a very important operation in order to guarantee ideal insulation.
For now, leave the side of the chamber, where are installed the electrical panels, without panels.
