electric modular oven
MD CAP: 2 PAG. 11
Covering assembly

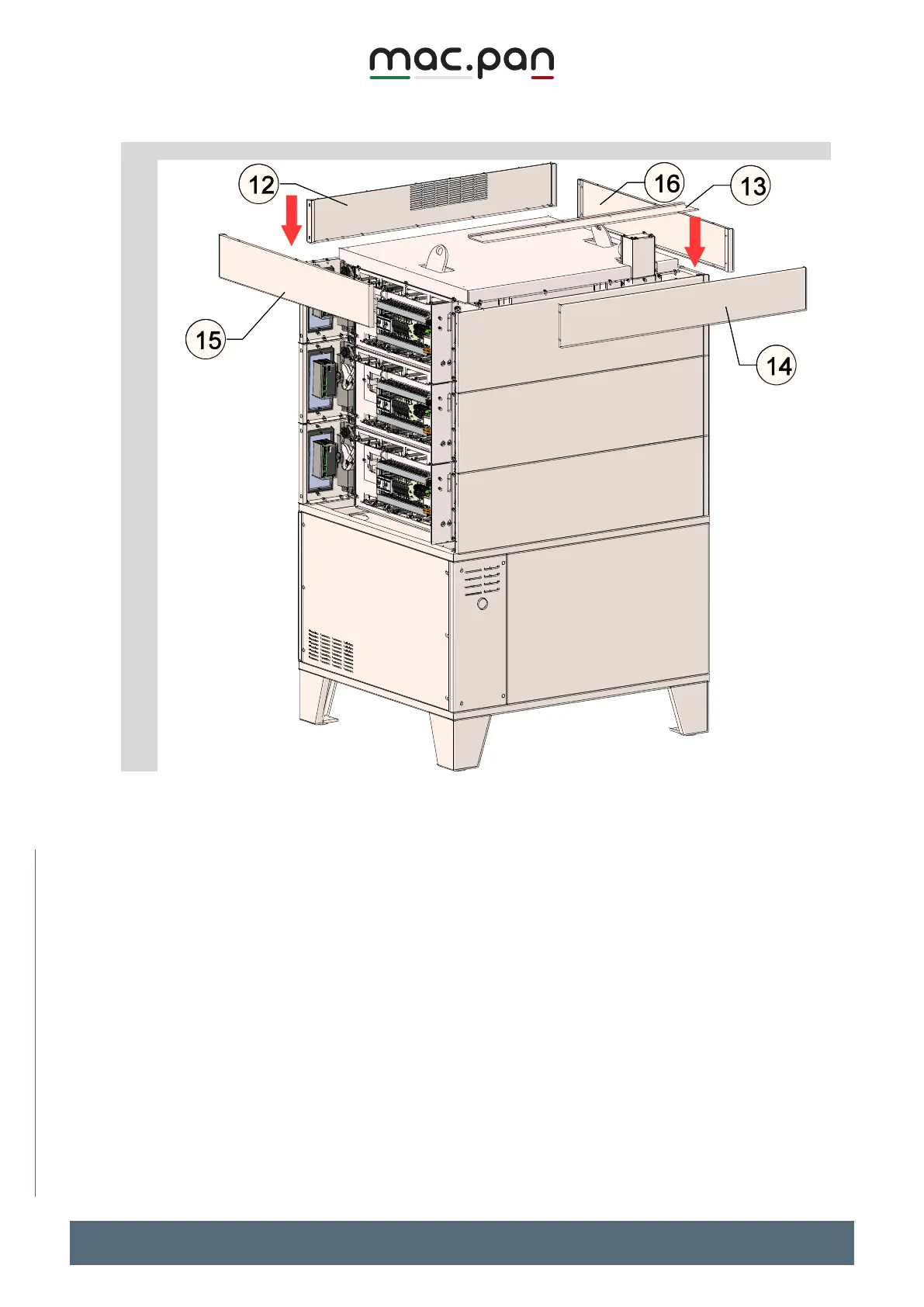

FIG.8
Install the front upper panel (Pos.12)
Position the rear compensator of the cover (Pos.13) using self-tapping screws.
Join the rear panel (Pos.14) and the side panels (Pos.15 and Pos.16) using M6 nuts and screws.
The newly assembled cover strip must be placed above the chamber cover panels and fixed to
the front upper panel.
