MADE IN ITALY
37
electric modular oven

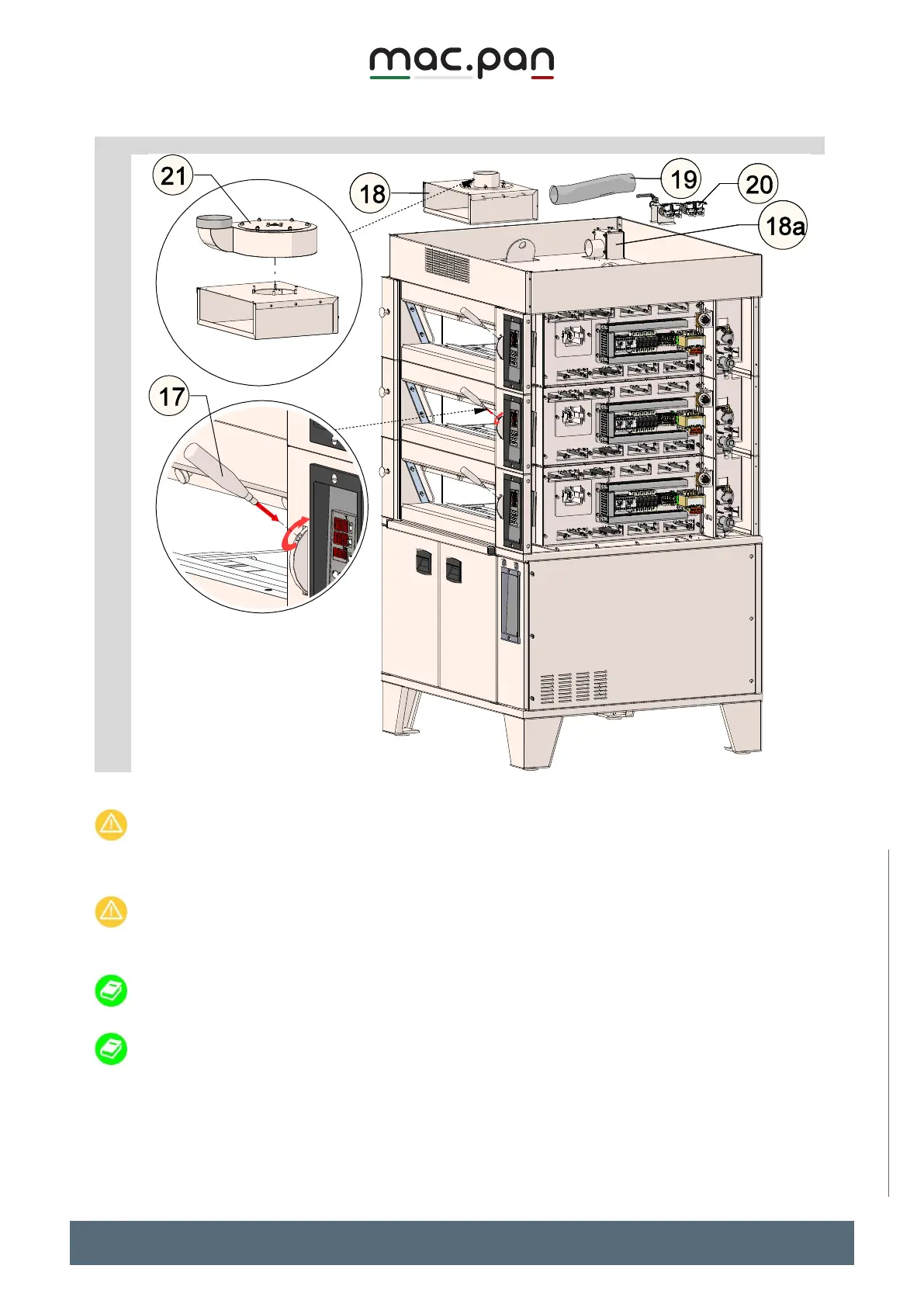

FIG.9
Screw the handles (Pos.17) to the glasses handling related discs. Tighten and scew fully.
To protect the handle from any "damage" we recommend locking it with a thread-locking fluid
Position and fix the steam extraction box (Pos.28) with self-tapping screws.
Use a flexible stainless steel tube (Pos.19) to connect the extraction box (Pos.18) to the manifold
of the steam valves (Pos.18a).
Apply a bead of sealant between the parts, along their edge.
Install the water inlet unit on the cover (Pos.20) and fix it with self-tapping screws.
Assemble the hydraulic system by connecting the rubber water supply and drain hoses.
Connect the hydraulic system following the wiring diagram (annex "F")
If supplied, position and fix the steam extractor (Pos.21) using the M6 brass washers and nuts.
Consult annex “EC” for all assembly, testing, and maintenance operations concerning the
hunmidifier.
